AEMC PowerPad III Model 8333 Power Quality Analyzers

AEMC PowerPad III Model 8333 Power Quality Analyzers
AEMC PowerPad III Model 8333 Power Quality Analyzers
AEMC PowerPad III Model 8333 Power Quality Analyzers
AEMC PowerPad III Model 8333 Power Quality Analyzers
AEMC PowerPad III Model 8333 Power Quality Analyzers
from
Rp.113,892,000
  • Brand: AEMC Instruments
  • Part Number: 2136
  • Availability: 4 - 6 WEEKS
  • Last Updated: 12 Oct 2026
 Configure Options

About Brand

Read More

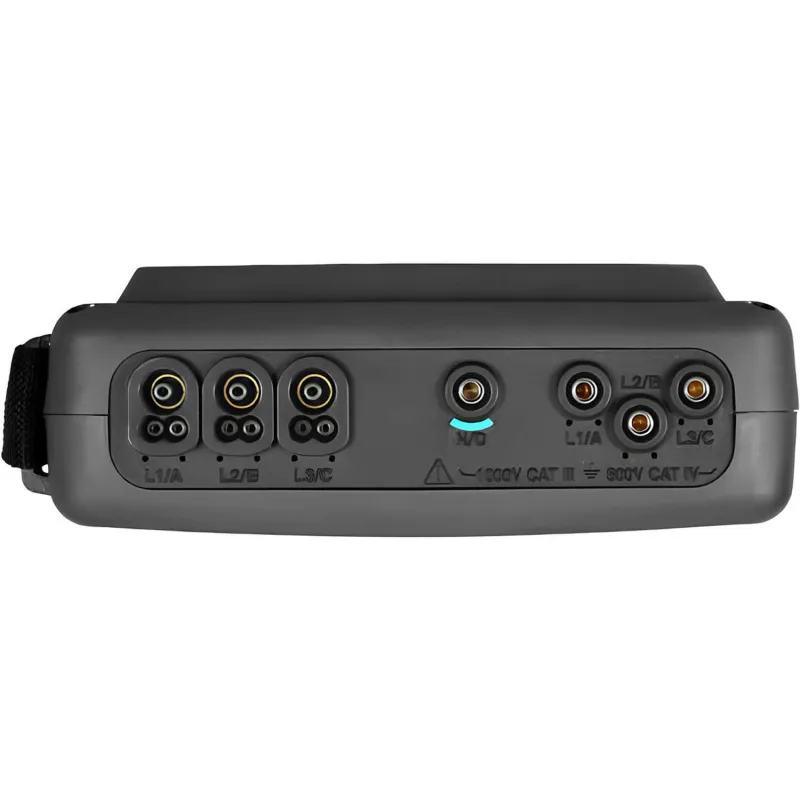

The AEMC PowerPad III Model 8333 series represents a versatile line of professional, portable three-phase power quality and energy analyzers engineered for electrical contractors, facility engineers, plant maintenance diagnosticians, and utility auditors. Designed to combine the functional diagnostic capabilities of an oscilloscope, power data logger, harmonic analyzer, and disturbance recorder into a single handheld unit, the instrument enables complete True RMS evaluation across single-phase, split-phase, and three-phase electrical systems (both Wye and Delta topologies) up to 1000 V CAT III and 600 V CAT IV. Equipped with four voltage inputs and three current inputs, the analyzer samples all channels synchronously at 256 samples per cycle, capturing fast electrical anomalies, micro-transients, sags, swells, and waveform distortions down to 1/256th of an electrical cycle. Available as a standalone base analyzer without probes (Cat. 2136.10), a heavy-current kit with three 24-inch 193-24-BK AmpFlex flexible sensors measuring up to 10,000 A AC (Cat. 2136.11), or a high-accuracy submetering kit with three MN193-BK current clamps measuring down to 5 mA AC (Cat. 2136.12), the Model 8333 adapts to diverse testing needs from dense breaker cubicles to large substation feeder busbars. Each current channel incorporates automatic probe recognition to configure scaling ranges and calibration constants immediately upon connection. Operating across 40 Hz to 69 Hz systems and DC networks, the analyzer measures True RMS voltage, current, active power (W), reactive power (var), apparent power (VA), energy parameters (Wh, varh, VAh per IEEE 1459), power factor (PF), displacement power factor (DPF), crest factor, and unbalance percentages. It performs comprehensive harmonic analysis up to the 50th order for voltage, current, and power, displaying real-time harmonic direction flow to establish whether distortions originate from the supply grid or internal non-linear plant loads. Housed in a ruggedized, shock-resistant casing rated IP53, the Model 8333 integrates a high-contrast 5.83-inch 1/4 VGA (320 x 240 pixel) full-color TFT display that provides field visibility of color-coded waveforms, vector phasor diagrams, and harmonic bar charts. Internal 2 GB flash memory supports extensive data acquisition, capturing up to 51 individual transient events with four-cycle multi-channel recording, up to 4,000 alarm occurrences across 10 user-selected threshold variables, 12 screen snapshots, and multi-week trend recordings. Bidirectional USB communication connects the analyzer to a PC running the included AEMC DataView software suite, facilitating automated compliance reporting, power quality trend analysis, and comprehensive waveform documentation. Safety certified to IEC/EN 61010-1 at 1000 V CAT III and 600 V CAT IV, the AEMC 8333 series delivers laboratory-grade measurement integrity, operational ease, and robust protection for critical electrical environments.


  Product Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
AEMC 8333 [2136.10] PowerPad III  3-Phase Power Quality Analyzer (No Probes)
2136.10
Rp.113,892,000
4 - 6 WEEKS
AEMC 8333-W/3-193-24-BK  [2136.11] PowerPad III 3-Phase Power Quality Analyzer with Three 193-24-BK AmpFlex Sensors
2136.11
Rp.139,492,000
4 - 6 WEEKS
AEMC 8333-W/3-MN193-BK [2136.12] PowerPad III 3-Phase Power Quality Analyzer with 3x MN193-BK AC Current Probes
2136.12
Rp.142,052,000
4 - 6 WEEKS
