AEMC PowerPad III Model 8336 Power Quality Analyzers

AEMC PowerPad III Model 8336 Power Quality Analyzers
AEMC PowerPad III Model 8336 Power Quality Analyzers
AEMC PowerPad III Model 8336 Power Quality Analyzers
AEMC PowerPad III Model 8336 Power Quality Analyzers
AEMC PowerPad III Model 8336 Power Quality Analyzers
from
Rp.157,540,0670
  • Brand: AEMC Instruments
  • Part Number: 2136
  • Availability: 4 - 6 WEEKS
  • Last Updated: 12 Oct 2026
 Configure Options

About Brand

Read More

The AEMC PowerPad III Model 8336 series represents an industry-standard line of professional, portable three-phase power quality and energy analyzers engineered for electrical utilities, industrial plants, facility maintenance teams, and testing contractors. Featuring four voltage and four current input channels, the instrument enables simultaneous True RMS data acquisition across all three phases and the neutral conductor on single-phase, split-phase, and three-phase Wye/Delta electrical distribution systems up to 1000 V CAT III and 600 V CAT IV. Powered by a high-speed synchronous acquisition engine sampling continuously at 256 samples per cycle, the Model 8336 captures high-speed waveform abnormalities, voltage sags, swells, interruptions, and micro-transients down to 1/256th of an electrical cycle across all active channels. Available as a standalone base instrument without probes (Catalog Number 2136.30), a heavy-current kit with four 24-inch 193-24-BK AmpFlex flexible sensors measuring up to 10,000 A AC (Catalog Number 2136.31), or a high-accuracy secondary CT kit with four compact MN193-BK current probes measuring from 5 mA to 100 A AC (Catalog Number 2136.32), the Model 8336 accommodates diverse testing environments from tightly packed control cabinets to high-ampacity substation busbars. Each current channel features automatic probe recognition that instantly configures scaling ratios and calibration constants upon connection. Operating across DC, 50 Hz, 60 Hz, and 400 Hz electrical networks, the analyzer measures True RMS voltage, current, active power (W), reactive power (var), apparent power (VA), energy totals (Wh, varh, VAh per IEEE 1459), power factor (PF), displacement power factor (DPF), crest factor, and comprehensive harmonics up to the 50th order with harmonic direction indicators. In addition, it features advanced InRush capability that records half-cycle RMS profiles for up to 10 minutes during motor startup or up to 1 minute in True InRush mode. Housed in a ruggedized, shock-resistant enclosure rated IP53, the Model 8336 integrates a high-contrast 5.83-inch 1/4 VGA (320 x 240 pixel) full-color TFT display that provides real-time visibility of color-coded waveforms, vector phasor diagrams, and harmonic bar charts directly in the field. Internal 2 GB flash memory supports expansive data acquisition, capturing up to 210 individual transient events with four-cycle multi-channel recording, up to 16,000 alarm occurrences across 40 user-selected threshold variables, 50 screen snapshots, and continuous multi-week trend recordings. Bidirectional USB communication connects the analyzer to a PC running the included AEMC DataView software suite, facilitating automated compliance reporting, power quality trend analysis, and comprehensive waveform documentation. Safety certified to IEC/EN 61010-1 at 1000 V CAT III and 600 V CAT IV, the AEMC 8336 series delivers laboratory-grade measurement integrity, operational ease, and robust protection for critical electrical environments.


  Product Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
AEMC 8336 [2136.30] PowerPad III Three-Phase Power Quality Analyzer (No Probes)
2136.30
Rp.157,540,0670
4 - 6 WEEKS
AEMC 8336 W/4 193-24-BK [2136.31] PowerPad III Three-Phase Power Quality Analyzer with Four 193-24-BK AmpFlex® Sensors
2136.31
Rp.181,603,9830
4 - 6 WEEKS

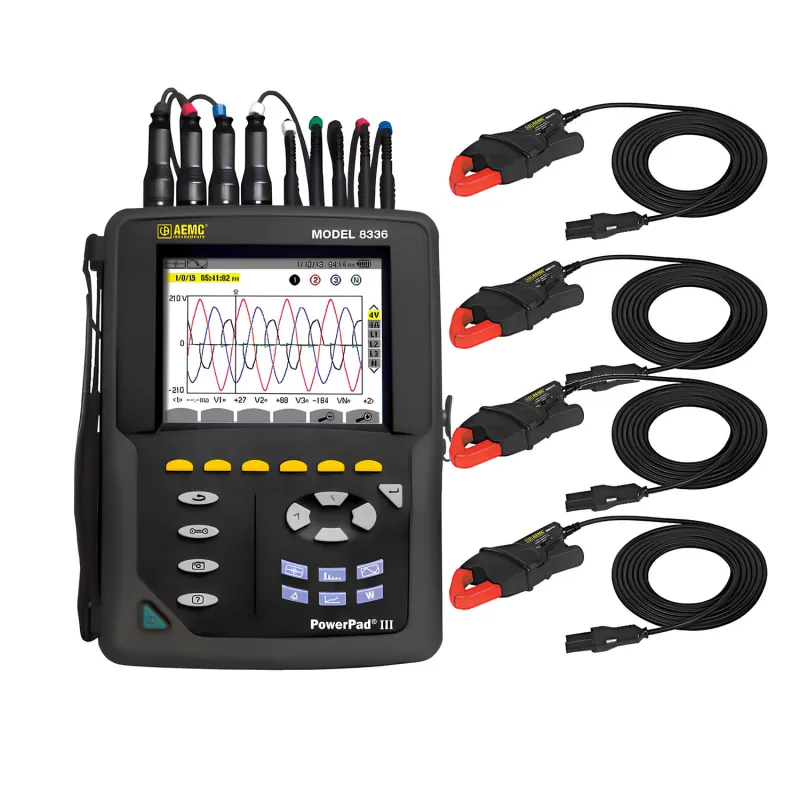

AEMC 8336 W/4 MN193-BK [2136.32] PowerPad III Three-Phase Power Quality Analyzer with Four MN193-BK Probes
2136.32
Rp.186,979,9260
4 - 6 WEEKS
