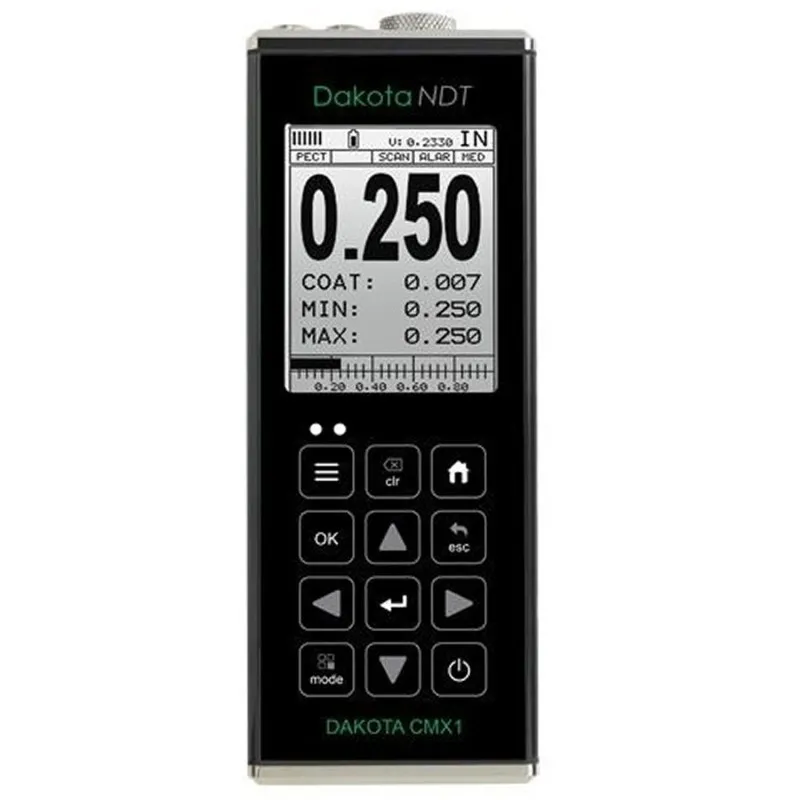

Dakota NDT CMX1 & CMX1-DL Corrosion Thickness Gauges

Name: Dakota NDT CMX1 & CMX1-DL Corrosion Thickness Gauges
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

0 reviews • Write a review

from

Rp.62,206,941

Brand: Dakota Ultrasonics
Part Number: Z-17
Availability: 4 - 6 WEEKS
Last Updated: 16 Apr 2025

Dakota Ultrasonics

Qty

Add to Cart

Add to Wish List Compare this Product

Configure Options

Description

Dakota NDT CMX1 & CMX1-DL Corrosion Thickness Gauges. The Dakota NDT CMX Series corrosion thickness gauge measures coatings and material thickness simultaneously while maintaining the ability to locate pits, flaws and defects in the material. The CMX gauge offers a range of measurement modes including Pulse-Echo, Echo-Echo, Pulse-Echo Temp, Comp Mode (PETP), Coating Only Mode (CT), and Pulse-Echo Coating Mode (PECT). The gauge also allows the user to set limits for pass/fail indication on an individual reading or for each batch with audible and visual warnings. The gauge features manual or automatic gain control (AGC) with adjustable 110dB range, gate control, threshold adjustment, and differential and minimal thickness alarm modes. The CMX gauge has a choice of display modes including Readings, B-Scan, B-Scan combined with readings, and Scan bar. The CMX2-DL and CMX3-DL models also include the A-Scan display mode. The gauge’s high speed scan mode provides 250 readings per second on the CMX1 and CMX1-DL models, and 50 readings per second on the CMX2-DL and CMX3-DL models. The CMX3-DL also features A-Scan portrait and landscape views. The CMX gauge offers 64 user-defined setups, transferable to and from a PC archive. Up to 4GB of readings can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster software for further analysis and reporting.
