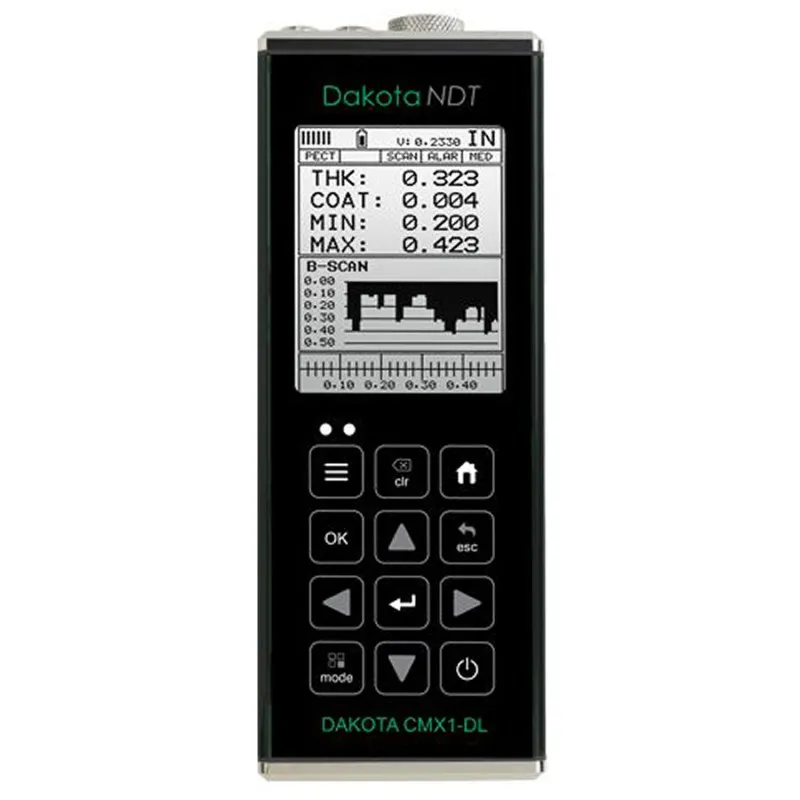

Dakota NDT CMX1-DL [Z-171-0005] Data-Logging Corrosion Thickness Gauges

Dakota NDT CMX1-DL [Z-171-0005] Data-Logging Corrosion Thickness Gauges
Dakota NDT CMX1-DL [Z-171-0005] Data-Logging Corrosion Thickness Gauges
from
Rp.72,448,8710
Ex Tax: Rp.72,448,8710
  • Brand: Dakota Ultrasonics
  • Part Number: Z-171-0005
  • Availability: 4 - 6 WEEKS
  • Last Updated: 16 Apr 2025

Dakota NDT CMX1-DL [Z-171-0005] Data-Logging Corrosion Thickness Gauges. The Dakota NDT CMX Series corrosion thickness gauge measures coatings and material thickness simultaneously while maintaining the ability to locate pits, flaws and defects in the material. The CMX gauge offers a range of measurement modes including Pulse-Echo, Echo-Echo, Pulse-Echo Temp, Comp Mode (PETP), Coating Only Mode (CT), and Pulse-Echo Coating Mode (PECT). The gauge also allows the user to set limits for pass/fail indication on an individual reading or for each batch with audible and visual warnings. The gauge features manual or automatic gain control (AGC) with adjustable 110dB range, gate control, threshold adjustment, and differential and minimal thickness alarm modes. The CMX gauge has a choice of display modes including Readings, B-Scan, B-Scan combined with readings, and Scan bar. The CMX2-DL and CMX3-DL models also include the A-Scan display mode. The gauge’s high speed scan mode provides 250 readings per second on the CMX1 and CMX1-DL models, and 50 readings per second on the CMX2-DL and CMX3-DL models. The CMX3-DL also features A-Scan portrait and landscape views. The CMX gauge offers 64 user-defined setups, transferable to and from a PC archive. Up to 4GB of readings can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster software for further analysis and reporting.

  Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
Dakota NDT CMX1-DL [Z-171-0005] Data-Logging Corrosion Thickness Gauges
Z-171-0005
Rp.72,448,8710
4 - 6 WEEKS
  Accessories 0 Item Selected
Multiple Product

have been added to your cart

There Are items in your cart.

Cart Subtotal: $xxx.xx

Go to checkout
Brand: Checkline

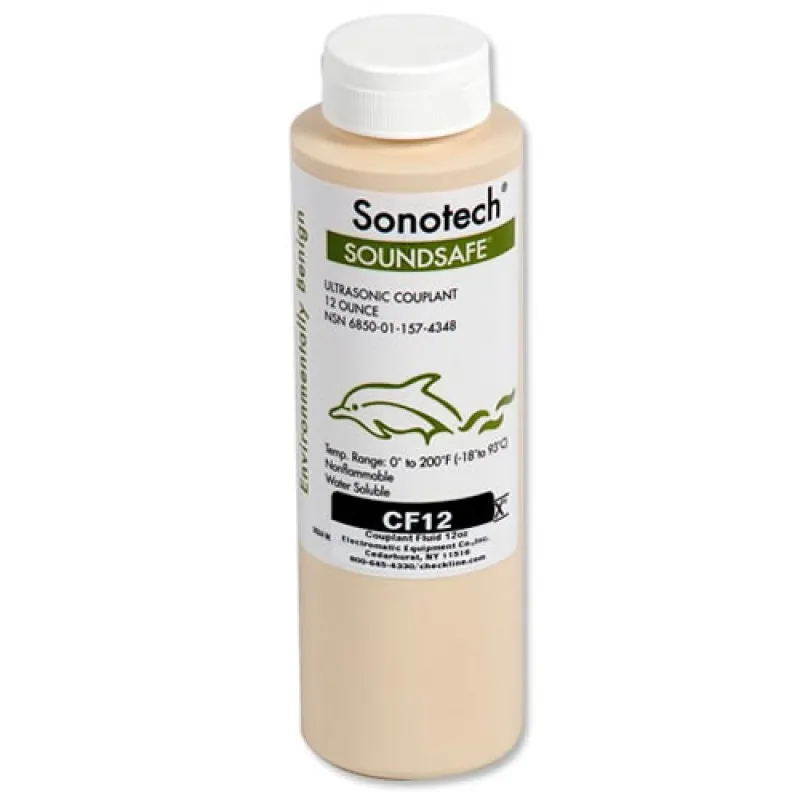

Checkline CF12 Soundsafe Ultrasonic Coupling Fluid - Temp Range: 0 - 200 °F, -18 - 93 °C. CF12 coupling fluid is an environmentally benign couplant th..
from
Rp.3,520,9680
Ex Tax:Rp.3,520,9680
Add to Cart
Brand: Checkline

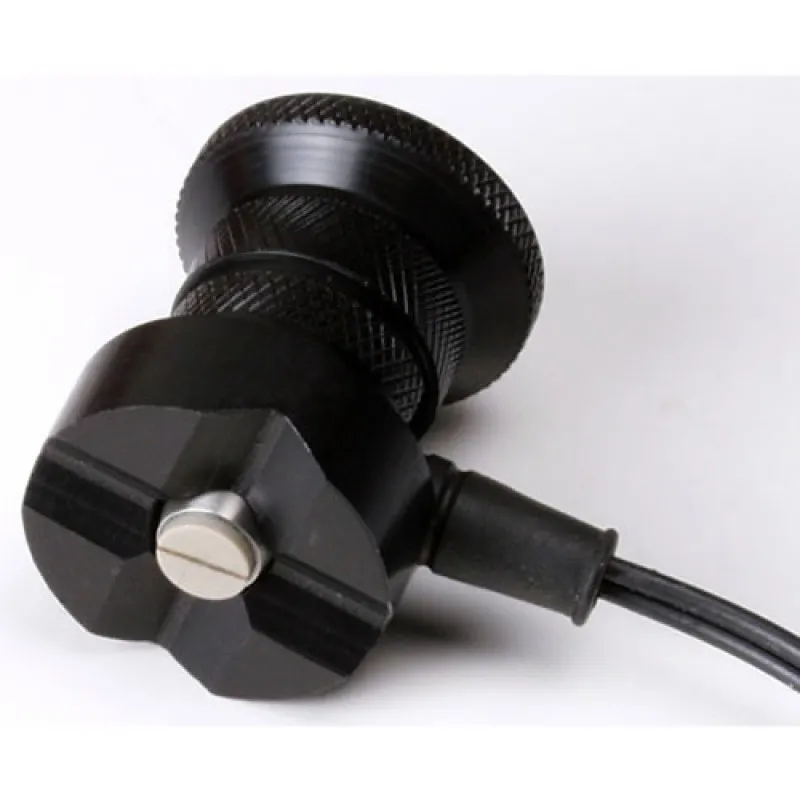

The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.  For 3/16" &..
from
Rp.8,469,0320
Ex Tax:Rp.8,469,0320
Add to Cart
Dakota NDT T-212-2001 5.0 MHz, 1/4" Diameter,  Dual Element Transducer Hi-Temp (900°F/500°C) Top In, Microdot. For use with ultrasonic thickness ..
from
Rp.17,353,8710
Ex Tax:Rp.17,353,8710
Add to Cart
Brand: Checkline

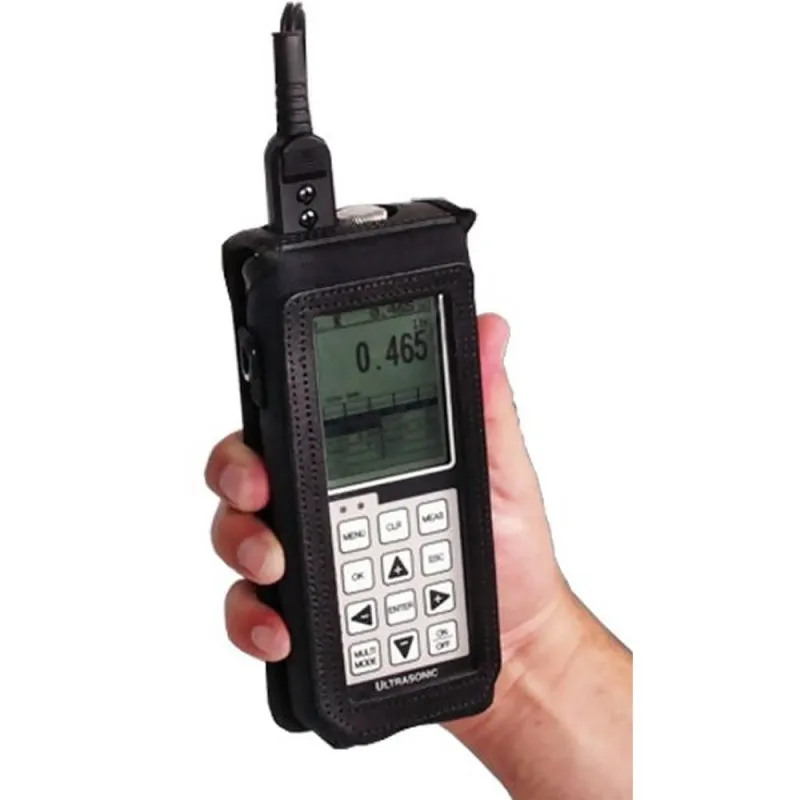

Dakota NDT TICC-MVX Protective Holder for Ultrasonic Gauges..
from
Rp.6,196,6130
Ex Tax:Rp.6,196,6130
Add to Cart

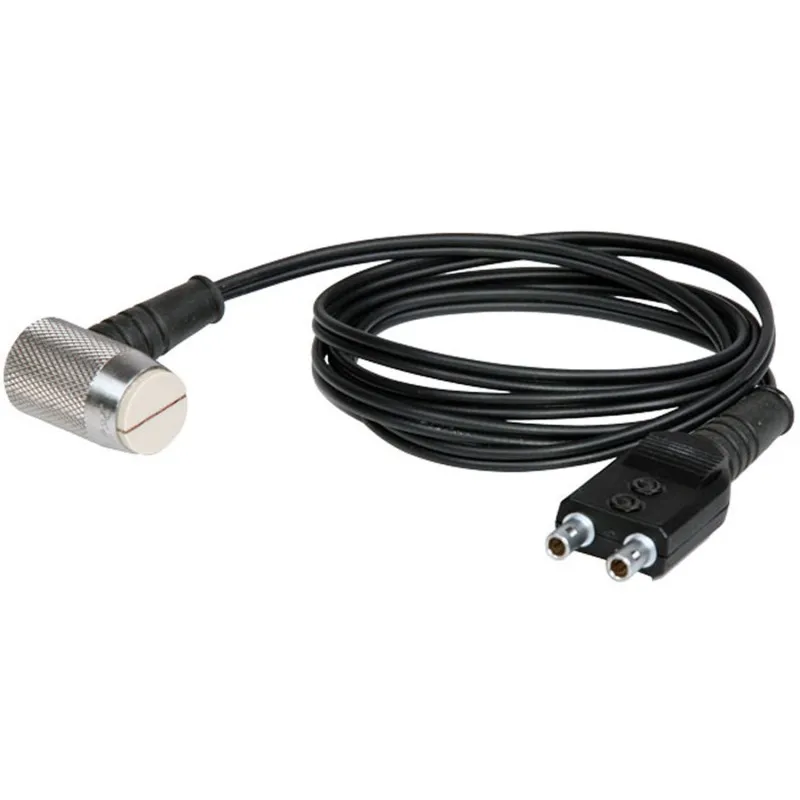

Dakota NDT T-104-9900 3.5 MHz Dual Element Transducer, 1/2", Side Entry. For use with Dakota ultrasonic thickness gauges. Coating Enabled works in con..
