Checkline ZTA-LM Digital Compression Force Gauge with Button Sensor (10 Models in this Product Family)

Checkline ZTA-LM Digital Compression Force Gauge with Button Sensor (10 Models in this Product Family)
Checkline ZTA-LM Digital Compression Force Gauge with Button Sensor (10 Models in this Product Family)
Checkline ZTA-LM Digital Compression Force Gauge with Button Sensor (10 Models in this Product Family)
Checkline ZTA-LM Digital Compression Force Gauge with Button Sensor (10 Models in this Product Family)
Checkline ZTA-LM Digital Compression Force Gauge with Button Sensor (10 Models in this Product Family)
Checkline ZTA-LM Digital Compression Force Gauge with Button Sensor (10 Models in this Product Family)
Checkline ZTA-LM Digital Compression Force Gauge with Button Sensor (10 Models in this Product Family)
from
Rp.50,595,1610
Ex Tax: Rp.50,595,1610
  • Brand: Checkline
  • Part Number: ZTA-LM
  • Availability: 4 - 6 WEEKS
  • Last Updated: 27 Jan 2025
Checkline Checkline
Add to Cart
Add to Wish List Compare this Product
 Configure Options

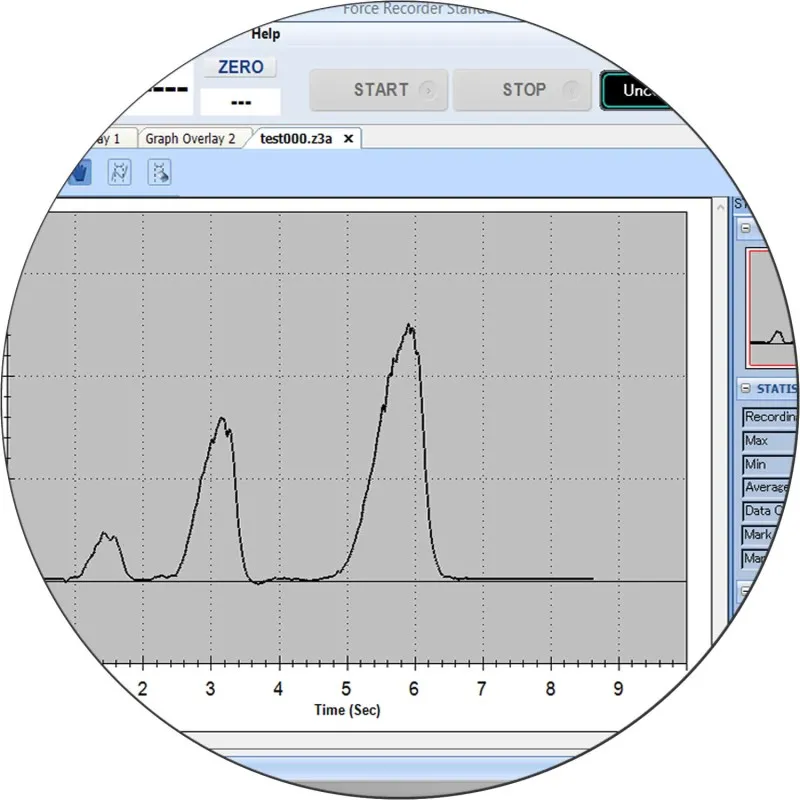

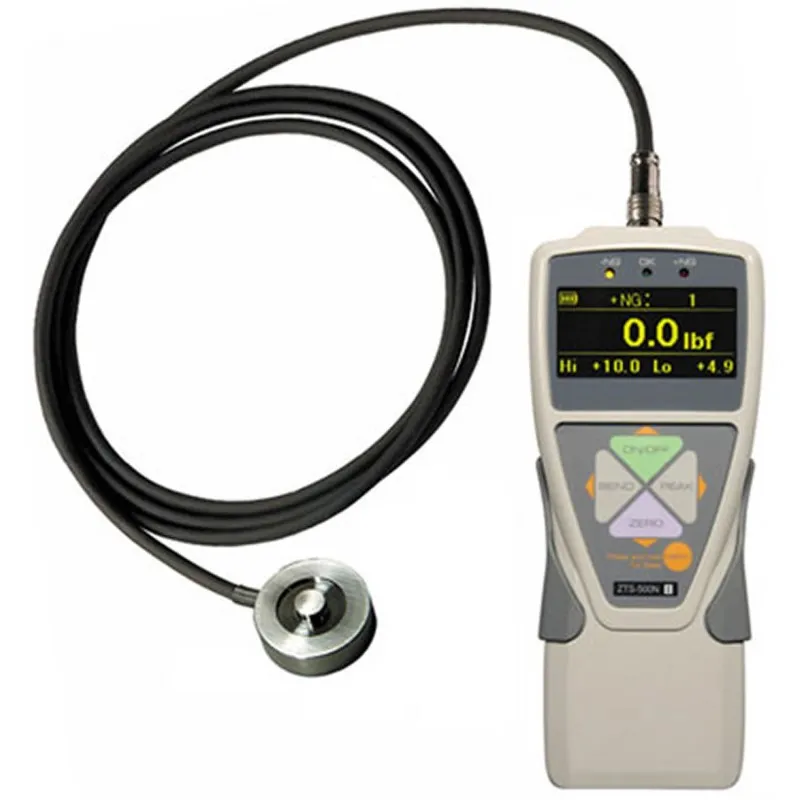

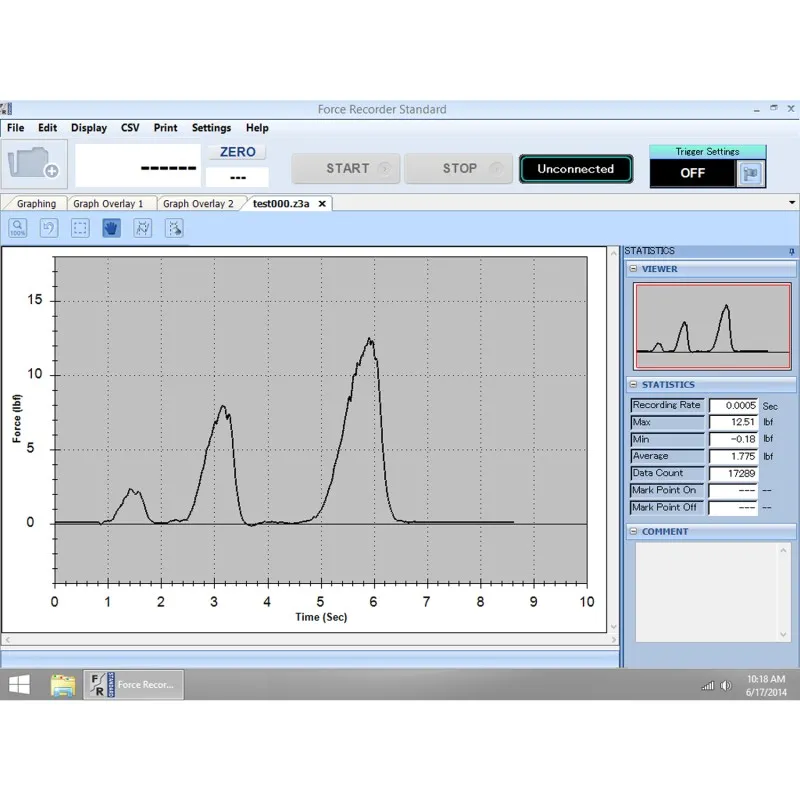

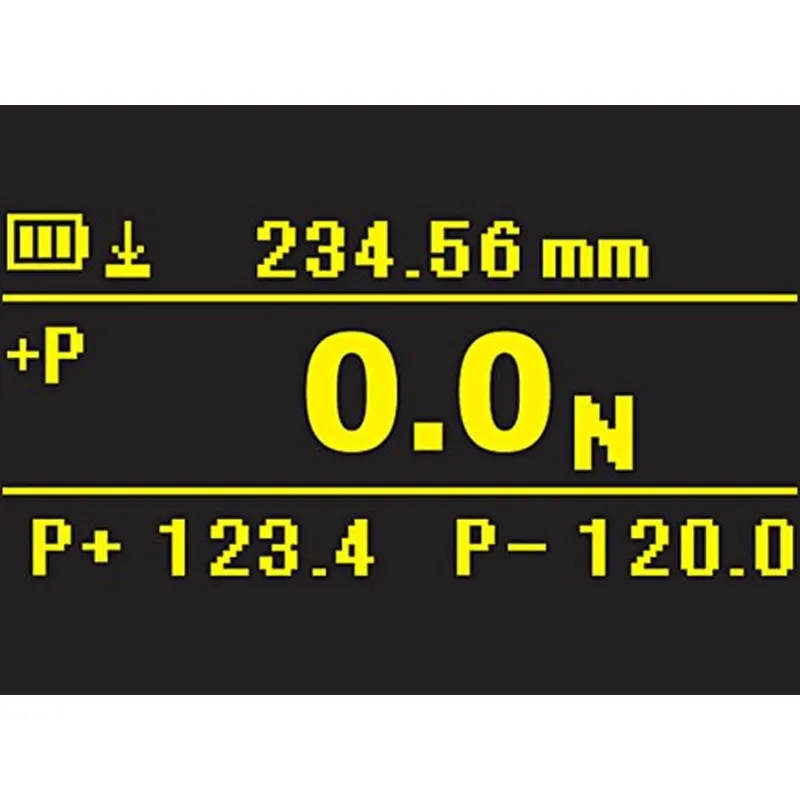

The ZTA-LM force gauge measures compression force with a remote button style sensor. It is ideal for use in limited access applications. The sensor is connected via an 8ft / 2.5m cable allowing the display to positioned in a safe, convenient location. An easy-to-use menu allows the user to select units, measuring mode, set high/low setpoints, language and adjust many other settings. Electroluminescent display (ELD) shows force value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, displacement value (using atest stand with FA option), etc. Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights for less than low setpoint, green lights between high and low, and red for over the high. Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate. Optional Force Recorder data acquisition software is designed to process up to 2,000 data per second.


  Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
Checkline ZTA-LM [ZTA-LM-2] Digital Compression Force Gauge with Button Sensor, 2.200 lbf / 1.000 kgf / 10.00 N Capacity
ZTA-LM-2_2
Rp.50,595,1610
4 - 6 WEEKS
Checkline ZTA-LM [ZTA-LM-4] Digital Compression Force Gauge with Button Sensor, 4.400 lbf / 2.000 kgf / 20.00 N Capacity
ZTA-LM-4_2
Rp.50,595,1610
4 - 6 WEEKS
Checkline ZTA-LM [ZTA-LM-11] Digital Compression Force Gauge with Button Sensor, 11.00 lbf / 5.000 kgf / 50.00 N Capacity
ZTA-LM-11_2
Rp.50,595,1610
4 - 6 WEEKS
Checkline ZTA-LM [ZTA-LM-44] Digital Compression Force Gauge with Button Sensor, 44.00 lbf / 20.00 kgf / 200.0 N Capacity
ZTA-LM-44_2
Rp.50,595,1610
4 - 6 WEEKS
Checkline ZTA-LM [ZTA-LM-110] Digital Compression Force Gauge with Button Sensor, 110.0 lbf / 50.00 kgf / 500.0 N Capacity
ZTA-LM-110_2
Rp.50,595,1610
4 - 6 WEEKS
Checkline ZTA-LM [ZTA-LM-220] Digital Compression Force Gauge with Button Sensor, 220.0 lbf / 100.0 kgf / 1000 N Capacity
ZTA-LM-220_2
Rp.58,622,2580
4 - 6 WEEKS
Checkline ZTA-LM [ZTA-LM-550] Digital Compression Force Gauge with Button Sensor, 550.0 lbf / 250.0 / kgf 2500 N Capacity
ZTA-LM-550_2
Rp.58,622,2580
4 - 6 WEEKS
Checkline ZTA-LM [ZTA-LM-1100] Digital Compression Force Gauge with Button Sensor, 1100 lbf / 500.0 kgf / 5000 N Capacity
ZTA-LM-1100
Rp.58,622,2580
4 - 6 WEEKS
Checkline ZTA-LM [ZTA-LM-4400] Digital Compression Force Gauge with Button Sensor, 4400 lbf / 2000 kgf / 20.00 KN Capacity
ZTA-LM-4400_2
Rp.62,002,0970
4 - 6 WEEKS
