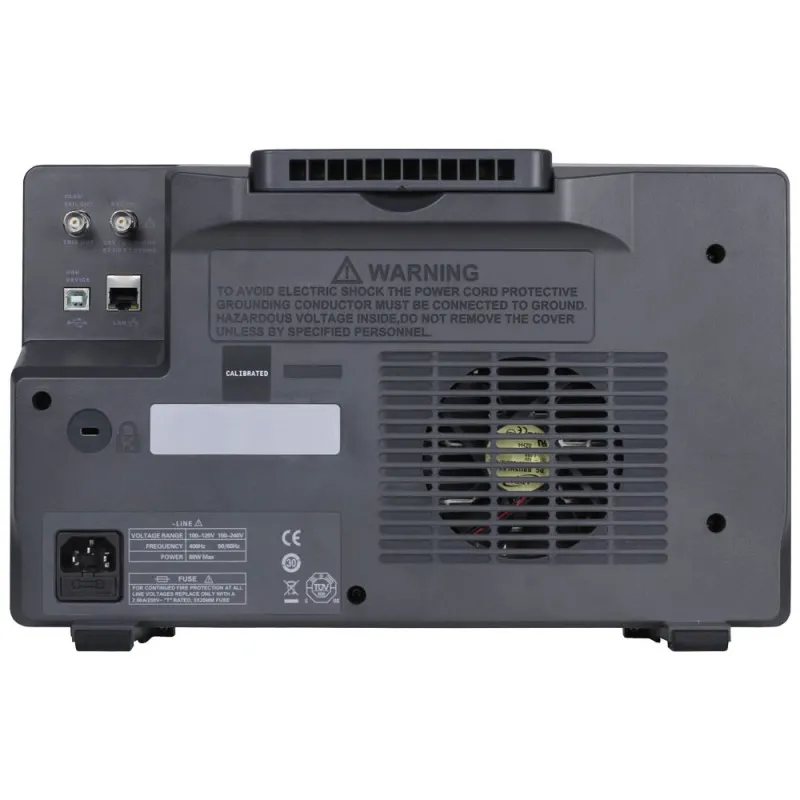

BK Precision 2567B [2567B-230V] 200 MHz, 4 Channel, 2 GSa/s Digital Storage Oscilloscope, 230VAC Line Input

Name: BK Precision 2567B [2567B-230V] 200 MHz, 4 Channel, 2 GSa/s Digital Storage Oscilloscope, 230VAC Line Input
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

BK Precision 2567B [2567B-230V] 200 MHz, 4 Channel, 2 GSa/s Digital Storage Oscilloscope, 230VAC Line Input

0 reviews • Write a review

from

Rp.85,763,3870

Brand: BK Precision
Part Number: 2567B-230V
Availability: 4 - 6 WEEKS
Last Updated: 11 Nov 2024

BK Precision

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

The 2567B BK Precision 2565B Digital Storage (DSO) offers 200 MHz in a 4-channel configuration, with a sample rate of 2 GSa/s and a maximum memory depth of 200 Mpts. Equipped with a 10.1" (1024 x 600) capacitive touchscreen and high waveform update rate of 120,000 waveforms per second, these oscilloscopes can capture infrequent glitches with excellent signal fidelity. The 2567B extends its debugging capabilities with new software features including zone triggers, Bode plots and power analysis. Maximize productivity with an extensive list of features including trigger zones, waveform recording, pass/fail limit testing and automatic measurements. Display frequency response characteristics using the Bode plot feature or evaluate switching power supplies using the power analysis tool. Standard in all models, the integrated 50 MHz DDS waveform generator provides stimulus output of sine, square, ramp, pulse, noise, DC and arbitrary waveforms to the device under test. The 2567B offers a comprehensive set of tools to capture signal anomalies, decode serial bus protocols and ease debug and analysis. Additional options are available for decoding I2 S, FlexRay, CAN FD, MIL-STD-1553B, SENT and Manchester protocols.
