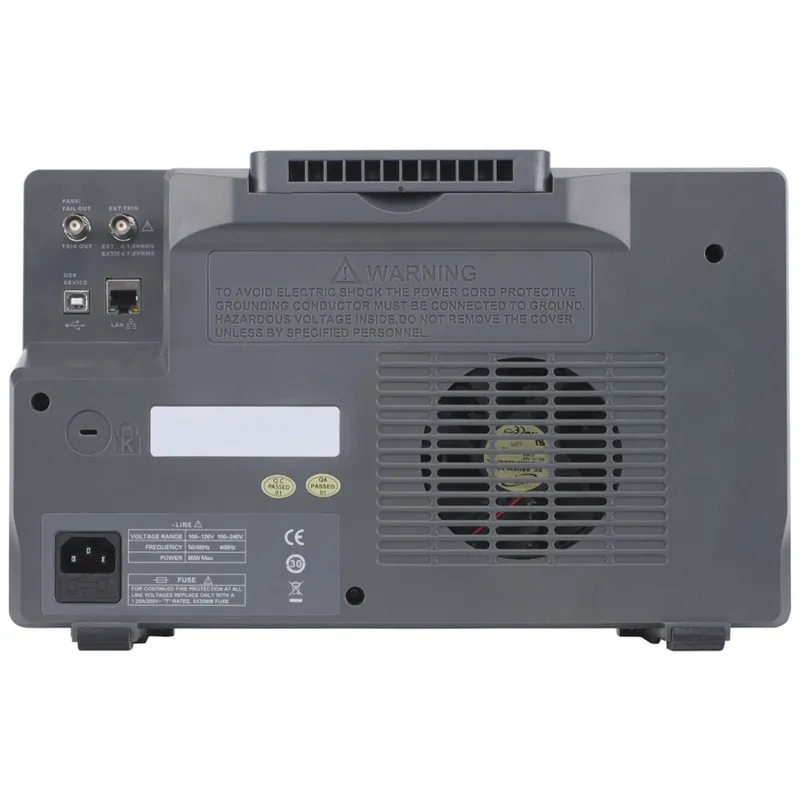

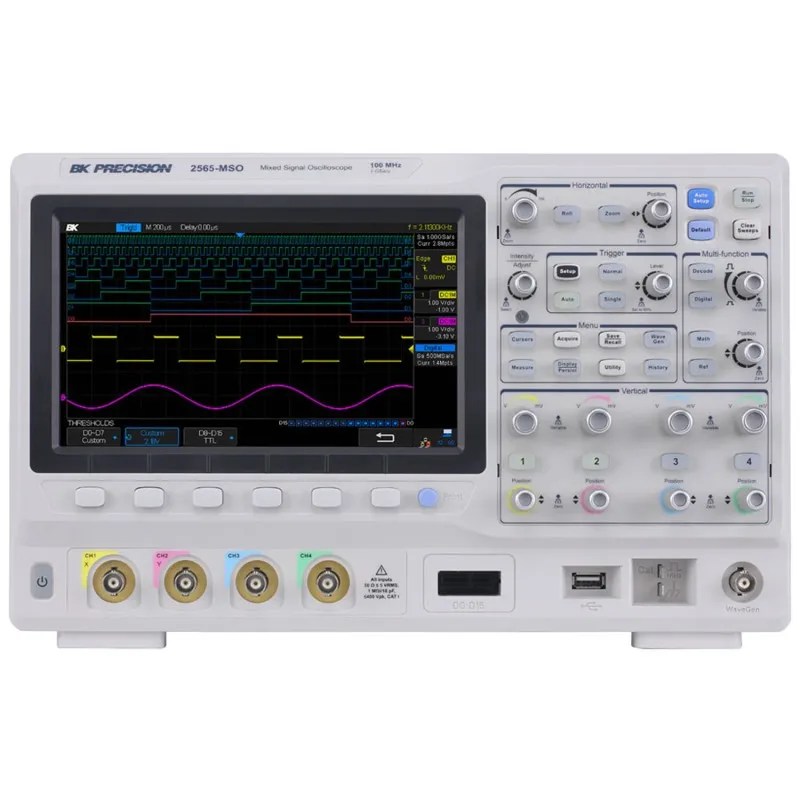

BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input

BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
0 reviews • Write a review
from
Rp.84,355,1610
  • Brand: BK Precision
  • Part Number: 2565B-MSO-230V
  • Availability: 4 - 6 WEEKS
  • Last Updated: 11 Nov 2024
BK Precision BK Precision
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The BK Precision 2565BMSO Mixed Signal Oscilloscope (MSO) offers 100 MHz in a 4-channel configuration, with a sample rate of 2 GSa/s and a maximum memory depth of 200 Mpts. Equipped with a 10.1" (1024 x 600) capacitive touchscreen and high waveform update rate of 120,000 waveforms per second, these oscilloscopes can capture infrequent glitches with excellent signal fidelity. The 2565B-MSO extends its debugging capabilities with new software features including zone triggers, Bode plots and power analysis. The logic analyzer and decode software provide 16 additional digital channels and serial bus decoding support for I2 C, SPI, UART, CAN and LIN protocols. Maximize productivity with an extensive list of features including trigger zones, waveform recording, pass/fail limit testing and automatic measurements. Display frequency response characteristics using the Bode plot feature or evaluate switching power supplies using the power analysis tool. Standard in all models, the integrated 50 MHz DDS waveform generator provides stimulus output of sine, square, ramp, pulse, noise, DC and arbitrary waveforms to the device under test. The 2565B-MSO offers a comprehensive set of tools to capture signal anomalies, decode serial bus protocols and ease debug and analysis. Additional options are available for decoding I2 S, FlexRay, CAN FD, MIL-STD-1553B, SENT and Manchester protocols.

  Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
BK Precision 2565B-BMSO [2565B-MSO] 100 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
2565B-MSO-230V
Rp.84,355,1610
4 - 6 WEEKS
BK Precision 2567B-MSO [2567B-MSO-230V] 200 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
2567B-MSO-230V
Rp.103,686,7740
4 - 6 WEEKS

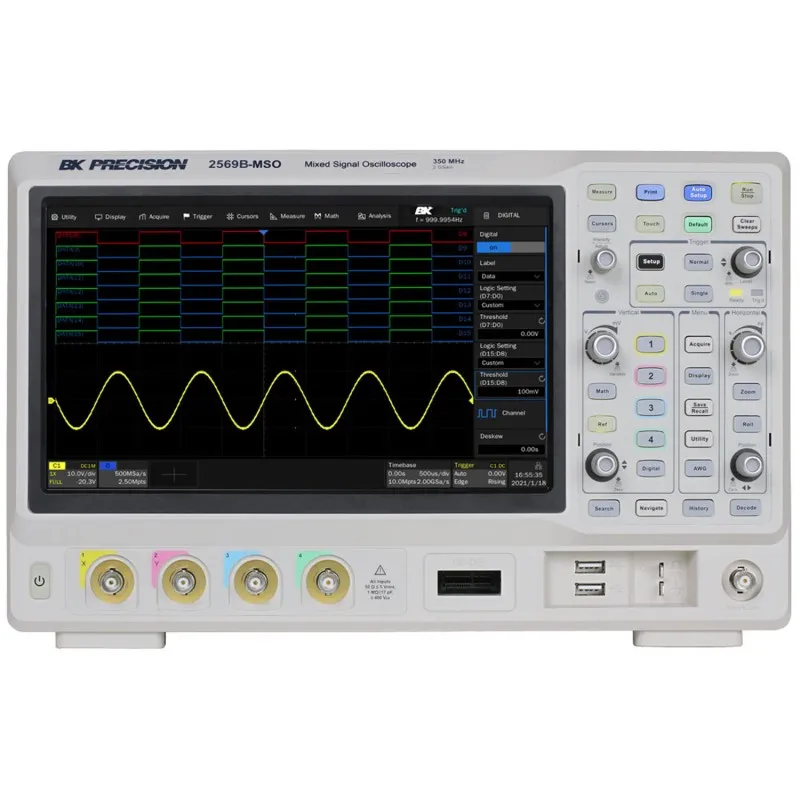

BK Precision 2569B-MSO [2569B-MSO-230V] 350 MHz, 4 Channel, 2 GSa/s Mixed Signal Oscilloscope, 230V Line Input
2569B-MSO-230V
Rp.139,405,4840
4 - 6 WEEKS

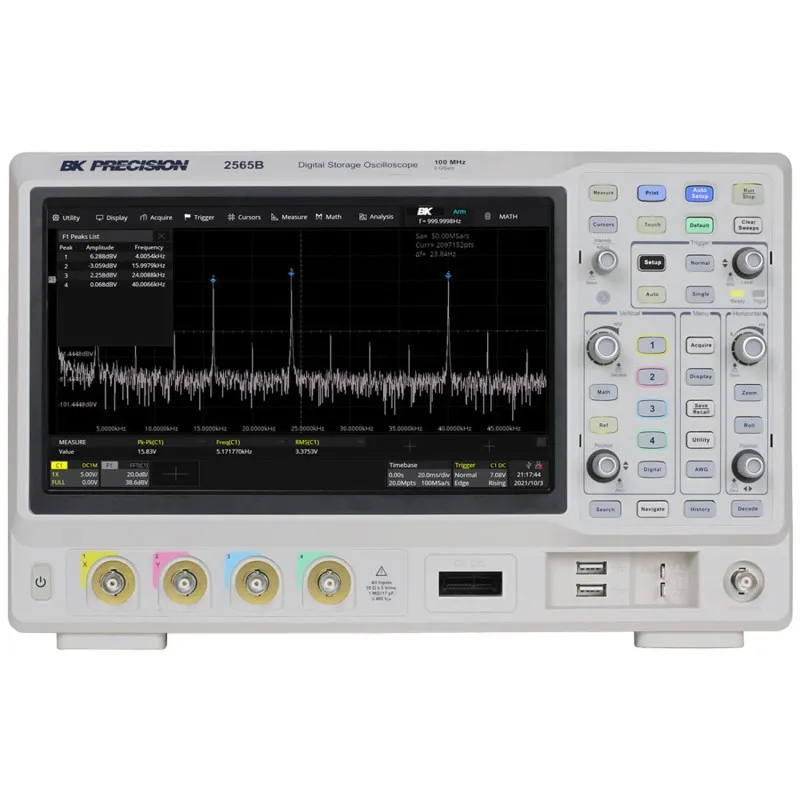

BK Precision 2565B [2565B-230V] 100 MHz, 4 Channel, 2 GSa/s Digital Storage Oscilloscope, 230V Line Input
2565B-230V
Rp.66,431,7740
4 - 6 WEEKS

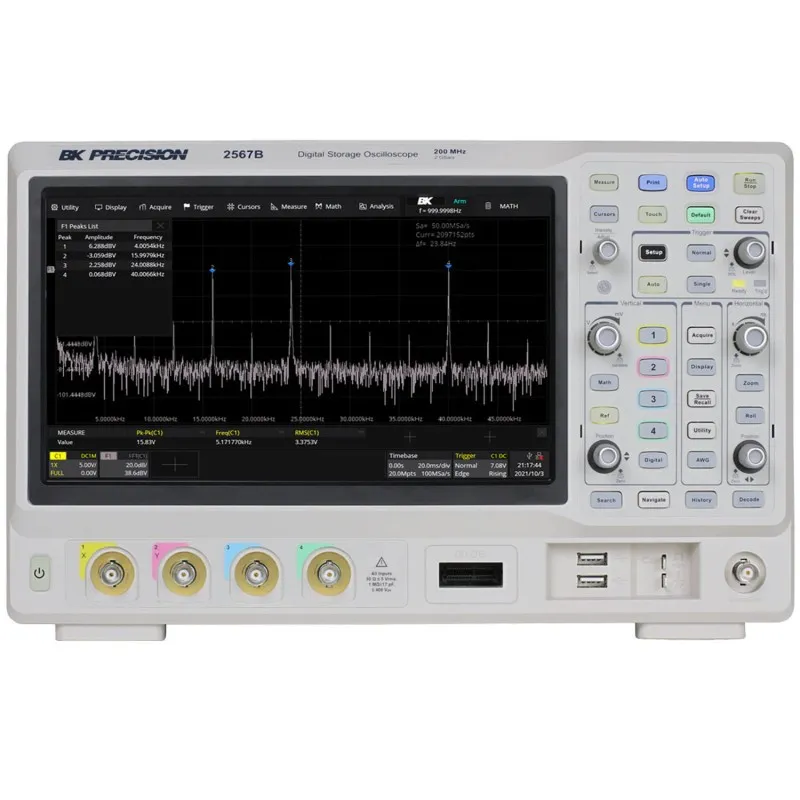

BK Precision 2567B [2567B-230V] 200 MHz, 4 Channel, 2 GSa/s Digital Storage Oscilloscope, 230VAC Line Input
2567B-230V
Rp.85,763,3870
4 - 6 WEEKS

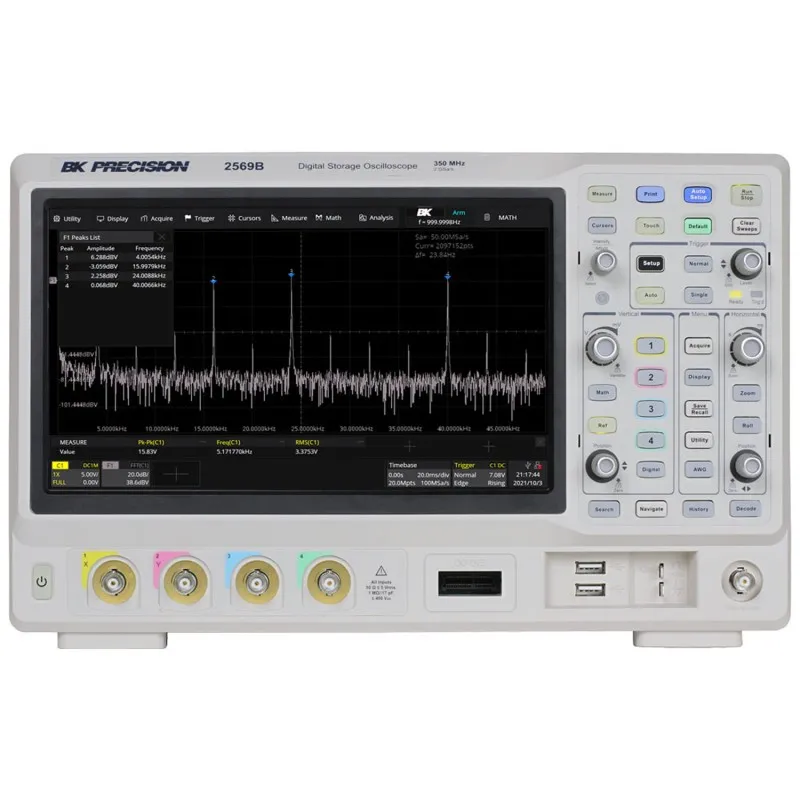

BK Precision 2569B [2569B-230V] 350 MHz, 4 Channel, 2 GSa/s Digital Storage Oscilloscope, 230VAC Line Input
2569B-230V
Rp.121,482,0970
4 - 6 WEEKS
