GF Signet 3-2725-61 [159001562] DryLoc Flat ORP Electrode, ISO

GF Signet 3-2725-61 [159001562] DryLoc Flat ORP Electrode, ISO
GF Signet 3-2725-61 [159001562] DryLoc Flat ORP Electrode, ISO
0 reviews • Write a review
from
Rp.15,500,000
Georg Fischer / GF Signet Georg Fischer / GF Signet
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

GF Signet 3-2725-61 ORP Electrode, Flat Tip, 3/4" ISO Thread, 7". The Signet 2724-2726 pH and ORP Electrodes features a patented reference electrode design and uses the unique foul-proof patented DryLoc® connector. The large area PE reference junction and pathway is constructed to increase the total reference effectiveness and ensures long service life.

The DryLoc® connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2760 preamplifier or the 2750 sensor electronics. The robust Ryton® threaded sensor body and choice of flat pH, bulb pH, or flat ORP sensing elements provides broad range of chemical compatibility for a wide variety of applications. There are two optional pH sensing versions available, HF and LC. The HF version is for applications where traces of hydrofluoric acid (2% or less) will attack standard pH glass in levels of pH 6 and below. The LC version can be used for low conductivity fluids 20 - 100 μS/cm nominal and below 20 μS when mounted under controlled conditions.

The quick temperature response is available in either a PT1000 or 3 KΩ temperature sensor and allows compatibility with all Signet pH/ORP instruments. The 2724-2726 electrodes are general-purpose sensors ideal for a wide range of applications. The sensors incorporate ¾ inch NPT or ISO 7/1-R 3/4 threads for installing into standard pipe-tees. They can also be mounted directly into Signet standard fittings, DN15 to DN100 (½ to 4 inch).

Features:

  • Sensing Element: Flat ORP
  • Temperature Sensor: 10k Ohm resistor used with 2750 or 2760 preamplifier
  • Threads: ISO

What's In The Box:

  • (1) GF Signet 3-2725-61 ORP Electrode

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice

Quickview
GF Signet 2751 [3-2751-3] pH / ORP Smart Sensor Electronics
Brand: Georg Fischer / GF Signet
GF Signet 2751 [3-2751-3] pH / ORP Smart Sensor Electronics
General The GF Signet 2751 pH/ORP smart sensor electronics feature field free calibration, out of range glass impedance, and broken glass detection to..
from
Rp.16,350,000
Add to Cart
Add to Wish List Compare this Product
Quickview

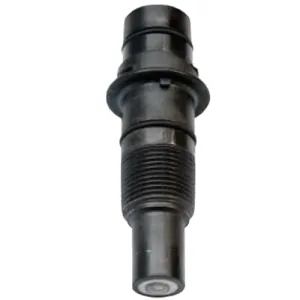

GF Signet 3-2725-60 [159001561] DryLoc Flat ORP Electrode, NPT
Brand: Georg Fischer / GF Signet
GF Signet 3-2725-60 [159001561] DryLoc Flat ORP Electrode, NPT
GF Signet 3-2725-60 ORP Electrode, flat surface, 3/4" NPT threads. The Signet 2724-2726 pH and ORP Electrodes features a patented reference electrode ..
from
Rp.15,500,000
Add to Cart
Add to Wish List Compare this Product
Quickview

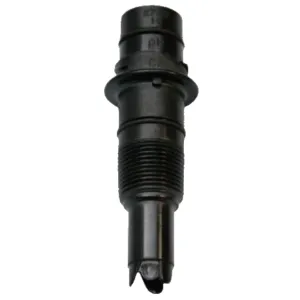

GF Signet 3-2726-LC-10 [159001559] DryLoc pH Electrode, 3/4"
Brand: Georg Fischer / GF Signet
GF Signet 3-2726-LC-10 [159001559] DryLoc pH Electrode, 3/4"
GF Signet 3-2726-LC-10 pH Electrode, flat surface, 3/4" NPT threads. The Signet 2724-2726 pH and ORP Electrodes features a patented reference electrod..
from
Rp.14,500,000
Add to Cart
Add to Wish List Compare this Product
Quickview

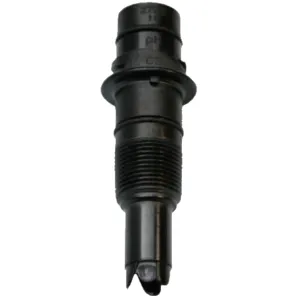

GF Signet 3-2726-LC-11 [159001560] DryLoc pH Electrode, ISO, 3K
Brand: Georg Fischer / GF Signet
GF Signet 3-2726-LC-11 [159001560] DryLoc pH Electrode, ISO, 3K
GF Signet 3-2726-LC-11 pH Electrode, flat surface, 3/4" NPT threads. The Signet 2724-2726 pH and ORP Electrodes features a patented reference electrod..
from
Rp.14,500,000
Add to Cart
Add to Wish List Compare this Product
Quickview

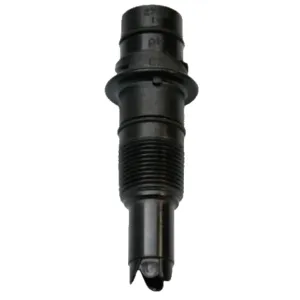

GF Signet 3-2726-HF-10 [159001551] DryLoc pH Electrode, 3/4"
Brand: Georg Fischer / GF Signet
GF Signet 3-2726-HF-10 [159001551] DryLoc pH Electrode, 3/4"
GF Signet 3-2726-HF-10 pH Electrode, flat surface, 3/4" NPT threads. The Signet 2724-2726 pH and ORP Electrodes features a patented reference electrod..
from
Rp.16,500,000
Add to Cart
Add to Wish List Compare this Product
Quickview

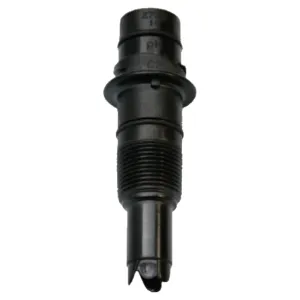

GF Signet 3-2726-HF-11 [159001552] DryLoc pH Electrode, ISO, 3K
