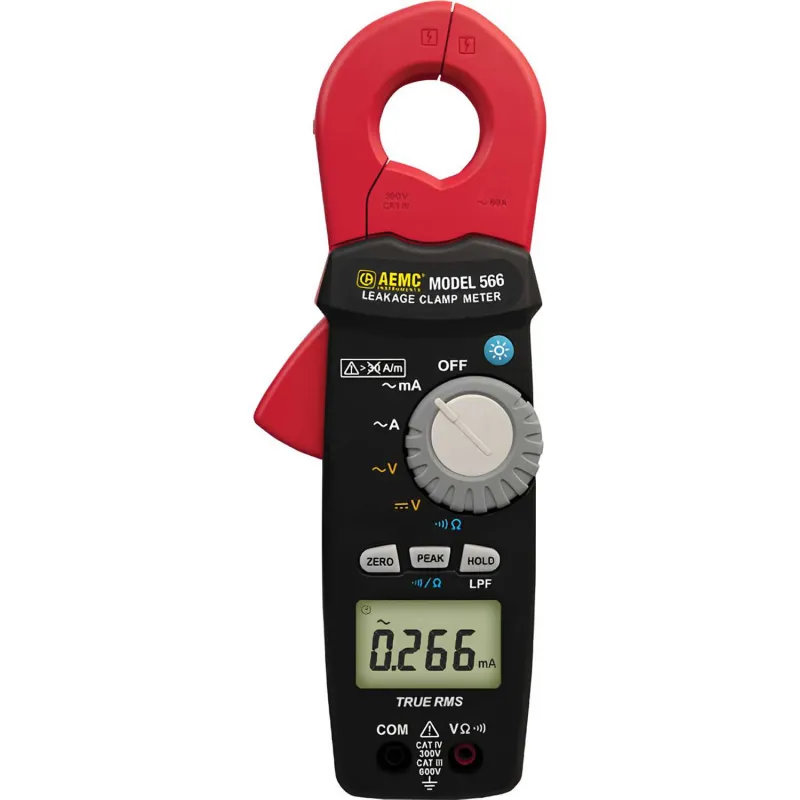

AEMC 566 [2139.83] 60 A AC/DC Clamp On Leakage Current Meter

AEMC 566 [2139.83] 60 A AC/DC Clamp On Leakage Current Meter
AEMC 566 [2139.83] 60 A AC/DC Clamp On Leakage Current Meter
from
Rp.13,572,0250
  • Brand: AEMC Instruments
  • Part Number: 2139.83
  • Availability: 2 - 4 WEEKS
  • Last Updated: 10 Oct 2026

About Brand

Read More

The AEMC Model 566 (2139.83) is a high-precision True RMS clamp-on leakage current meter engineered for non-invasive detection, location, and quantification of low-level electrical leakage currents on live energized circuits. Utilizing shielded differential current sensing technology, the instrument measures alternating leakage currents down to 0.001 mA with a maximum resolution of 1 µA across dedicated 6 mA, 60 mA, and 600 mA auto-ranging scales. Designed to simplify electrical safety audits and insulation diagnostics without circuit interruption, the Model 566 allows predictive maintenance technicians and electrical inspectors to pinpoint insulation breakdown, trace stray ground return currents, and troubleshoot nuisance tripping on GFCI, RCD, and ELCB protective devices. Engineered with comprehensive multi-meter functionality, the Model 566 extends beyond pure micro-leakage analysis into full branch load monitoring with auto-ranging 6 A and 60 A True RMS current scales. The instrument also measures AC and DC voltage up to 600 V, electrical resistance up to 600 kΩ, line frequency up to 1 kHz, and provides an audible continuity beeper (< 45 Ω threshold). A built-in selectable low-pass filter (LPF) isolates the 50/60 Hz fundamental operating frequency from high-frequency harmonics, drive carrier transients, and electromagnetic switching noise, ensuring that measured leakage accurately reflects fundamental 50/60 Hz leakage currents rather than high-frequency capacitive noise. Constructed for single-handed operation in crowded distribution boards and industrial motor control centers, the Model 566 features a compact 0.91-inch (23 mm) jaw opening that clamps around ground conductors, individual branch lines, or complete conductor bundles. The rugged ergonomic housing incorporates a 6000-count backlit LCD display, MAX capture for peak load surges, a Relative/Zero function for differential baseline tracking, and Data Hold to freeze readings in poorly lit enclosures. Operating for up to 40 hours on two standard 1.5 V AAA alkaline batteries and certified to IEC/EN 61010-1 standards at 600 V CAT III, the AEMC 566 ensures certified overvoltage protection across commercial, industrial, and institutional electrical systems.

  Product Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
AEMC 566 [2139.83] 60 A AC/DC Clamp On Leakage Current Meter
2139.83
Rp.13,572,0250
2 - 4 WEEKS
