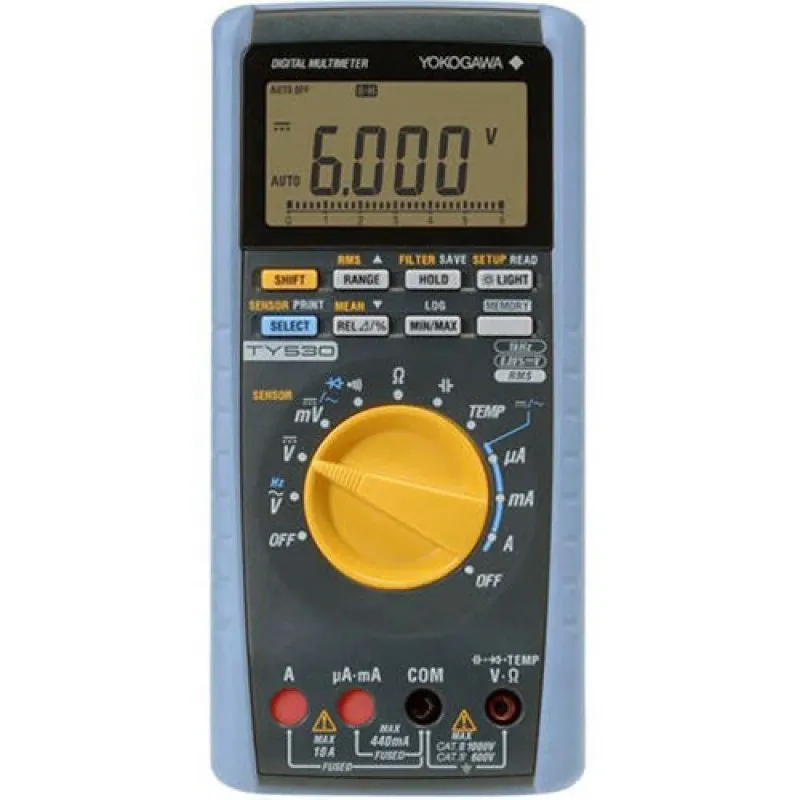

Name: Yokogawa TY500 [TY530] Built-In Memory Type Digital Multimeter
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Yokogawa TY500 [TY530] Built-In Memory Type Digital Multimeter

0 ulasan • Tulis ulasan

from

Rp.8.700.000

Sebelum Pajak: Rp.8.700.000

Brand: Yokogawa
Suku Cadang: TY530
Ketersediaan: 2 - 4 MINGGU
Update Terakhir: 20 Dec 2019

Yokogawa

Jumlah

+ Keranjang

Tambah ke Favorit Bandingkan produk ini

Tags/penandaan: Additel , Digital , Pressure , Calibrators

Description

The TY530 simply performing special operations via front panel allows for quick and reliable adjustment. In addition, the series allows for one-touch adjustment of AC voltage- and AC current-to-frequency characteristics. The user calibration function leads to improved operation efficiency and cost reduction.

The TY530 Digital Multimeter can directly read the various sensor output signals (mV DC/AC) at any scaling. The units can be changed (16 units are available).Output signal and scaled value are simultaneously displayed.
Shutters prevent erroneous insertion of test leads into current measurement terminals (terminal shutters).Conforms to overvoltage category 1000 V AC/DC, CAT and 600 V AC/DC, CAT IV. If the function is switched to other than current measurement while a test lead remains inserted in a current measurement terminal, the fuse built into the DMM can not protect the circuits. The terminal shutters prevent such accidental errors.

Two memory modes selectable from 2 types of memory mode to suit field needs.

Features:

High Precision
Basic accuracy 0.09%
True RMS measurement
Ensured Field Site Safety
Conforms to safety standards EN61010-1, 1000V CAT III, 600V CAT IV
Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
Current direct reading function provided by current clamp sensor (optional)
Low-pass Filter (LPF)
Logging-mode memory for 1600 data
Closed Case Calibration
3-year Warranty
USB communication, application software (Optional DMM communication package)

What's In The Box:

(1) Instruction Manual
(4) AA (R6) dry cells
(1) Test lead set (98015)
(1) Fuse (installed) 440mA/1000V and 10A/1000V

Brochure/Datasheet

Instruction manual
