![Solinst Model 615SN [102319] Shielded Drive-Point Piezometer 12" (30cm)](image/cache/wp/gj/Products/Solinst_Model-615SN-800x800.webp "Solinst Model 615SN [102319] Shielded Drive-Point Piezometer 12\" (30cm)")
![Solinst Model 615SN [102319] Shielded Drive-Point Piezometer 12" (30cm)](image/cache/wp/gj/Products/Solinst_Model-615SN-1-800x800.webp "Solinst Model 615SN [102319] Shielded Drive-Point Piezometer 12\" (30cm)")
![Solinst Model 615SN [102319] Shielded Drive-Point Piezometer 12" (30cm)](image/cache/wp/gj/Products/Solinst_Model-615SN-100x100.webp "Solinst Model 615SN [102319] Shielded Drive-Point Piezometer 12\" (30cm)")
![Solinst Model 615SN [102319] Shielded Drive-Point Piezometer 12" (30cm)](image/cache/wp/gj/Products/Solinst_Model-615SN-1-100x100.webp "Solinst Model 615SN [102319] Shielded Drive-Point Piezometer 12\" (30cm)")

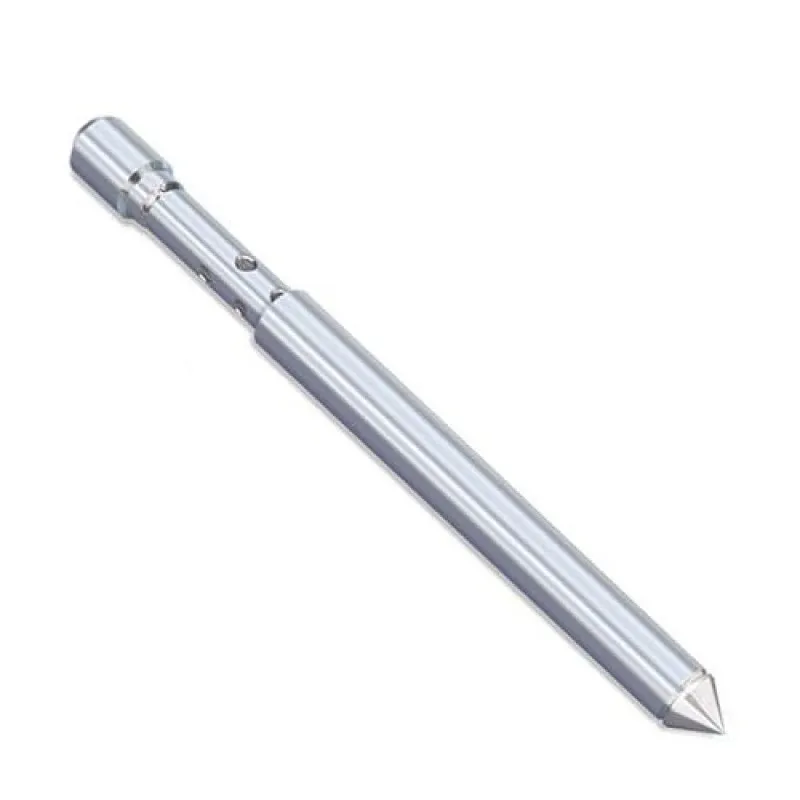

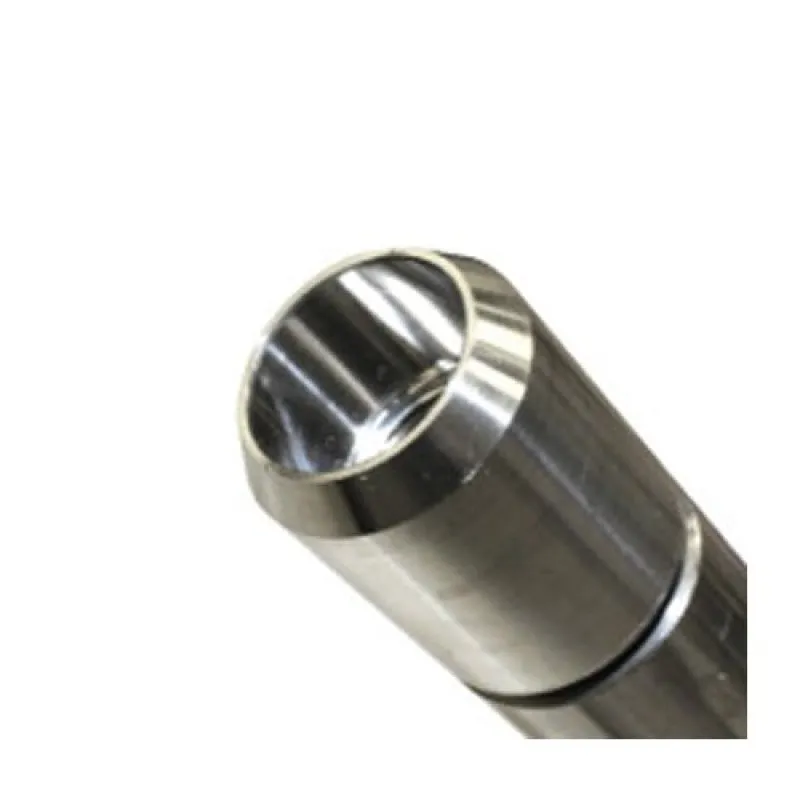

The 615 S and 615 SN shielded drive-points have a single use, 1-1/2" (38 mm) dia. shield to avoid smearing and plugging of the screen during installation. The strengthened connector at the top of the drive-point acts as an annular seal, which avoids contamination from higher levels in the hole.
The Model 615 Drive-Point Piezometer is designed as an affordable method to monitor shallow groundwater and soil vapor in suitable conditions. The Drive-Points attach to inexpensive 3/4" (20 mm) NPT stainless steel drive pipe.
The Drive-Points are designed for single use installations, and not for removal and reuse. Solinst Drive-Point Piezometers are most often installed as permanent well points. They can also be used for temporary, short term monitoring applications.
Higher quality samples can be obtained when polyethylene or PTFE-lined tubing is attached to the stainless steel drive-point. Groundwater sampling and hydraulic head measurements can be taken within the tubing using small diameter equipment, as described overleaf.
Solinst Drive-Point Piezometers can be driven into the ground with any direct push or drilling technology, including the Manual Slide Hammer shown at right. To avoid clogging or smearing of the screen during installation, a shielded version is also available.
Features:
Catatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
