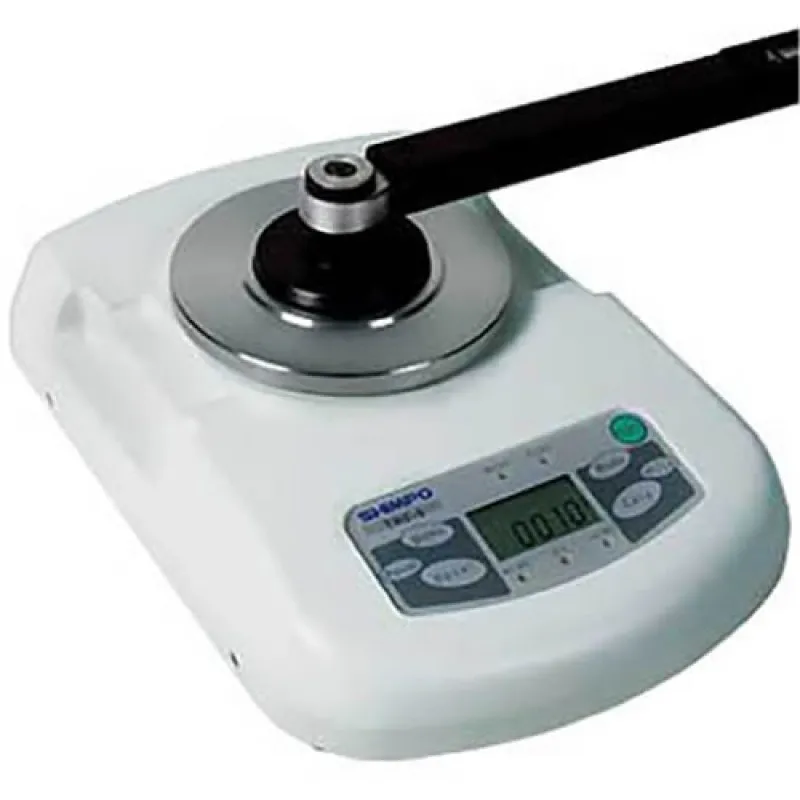

Shimpo TRC [TRC] Digital Torque Tester

Shimpo TRC [TRC] Digital Torque Tester
Shimpo TRC [TRC] Digital Torque Tester
from
Rp.29.500.000
Sebelum Pajak: Rp.29.500.000
  • Brand: Shimpo Instruments
  • Suku Cadang: TRC
  • Ketersediaan: 3 - 4 MINGGU
  • Update Terakhir: 25 Aug 2019
Shimpo Instruments Shimpo Instruments
+ Keranjang
Tambah ke Favorit Bandingkan produk ini
 Configure Options
Tags/penandaan: Additel , Digital , Pressure , Calibrators

The Fast, accurate and convenient calibration of torque wrenches, torque drivers, and the Series TRC Digital Torque checker is a user friendly instrument for calibrating or measuring torque values. The single button operation does it all-Zero, Test, Store & Repeat. In addition to Average, Maximum, Minimum, and Peak values, the TRC features Red/Green/Red LED’s (HI-GO-LO) combined with an audible alarm that enables quick, large batch testing. The TRC’s expansive 3,000 data point storage capacity makes large batch testing possible. The Series TRC is USB ready for easy PC software interfacing with the included cable. Combined with the free DigiTorq software, statistical analysis of the data can be performed and conveniently graphed on Microsoft® Excel. The TRC is a portable device powered with internal, rechargeable batteries or with the included AC adapter/charger. The TRC’s small foot print saves valuable lab space. It’s low profile, (3.82”) rugged design, and included factory certificate promotes proper calibration procedures, ensuring overall test and product quality.

Features:

  • Precise ± 0.5% F.S. ± 1 digit accuracy ensures exact results
  • Variety of applications met with ranges from 17.7 in·lb (2 N·m) all the way to 88.5 in·lb (10 N·m)
  • Memory function allows convenient storage of up to 3000 readings for later retrieval
  • Large, easy to read LCD displays torque values in four selectable engineering units
  • Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear
  • PC connectivity with USB interface and free Digitorq software enables data analysis and graphing on
      Microsoft® Excel
  • Truly portable with compact, light-weight design and internal, rechargeable batteries
  • Recharge batteries with included 120/240V AC adapter/charger or utilize adapter for continuous use
  • Change measuring modes to capture Average, Maximum or Minimum values in both clockwise (CW) &
      counterclockwise (CCW) directions
  • Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance to
      pre-programmed tolerances
  • Includes Factory Certificate, CE Approval and 2 Year Warranty!

What's In The Box:

  • (1) Torque adapter for driver
  • (1) AC adapter/charger
  • (1) USB cable
  • (1) Mounting bracket
  • (2) Bolts for mounting bracket (2 pcs)

Brochure/Datasheet

Instruction manual

Catatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu

  MODEL [TRC] 0 Item Terpilih
Model
Nama Produk
Harga
Ketersediaan
Jumlah
[TRC-2] Digital Torque Tester, Range 0-17.70 lb·in (0.020 - 2.000 Nm, 2.0 - 200.0 Ncm, 0-20.39 kgcm)
TRC-2
Rp.29.500.000
1 Ketersediaan
[TRC-5] Digital Torque Tester, Range of 0-44.25 in·lb (50.99 kg·cm, 500.0 N·cm, 5.000 N-m)
TRC-5
Rp.29.500.000
1 Ketersediaan
[TRC-10] Digital Torque Tester, Range 0-88.5 lb·in (0.10 - 10.00 Nm, 10 - 1000 Ncm, 0-102.0 kgcm)
TRC-10
Rp.29.500.000
1 Ketersediaan
