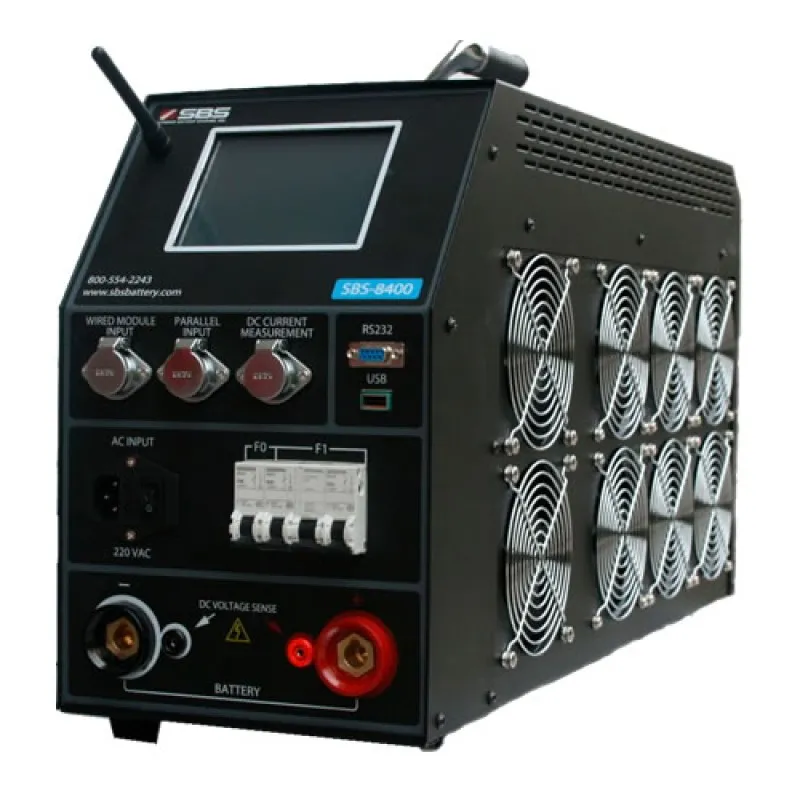

Storage Battery Systems SBS8400 [SBS-8400-220VAC]Programmable Constant Current DC Load Bank with Monitoring, 10-300VDC, 120ADC, 220VAC Line Input

Storage Battery Systems SBS8400 [SBS-8400-220VAC]Programmable Constant Current DC Load Bank with Monitoring, 10-300VDC, 120ADC, 220VAC Line Input
Storage Battery Systems SBS8400 [SBS-8400-220VAC]Programmable Constant Current DC Load Bank with Monitoring, 10-300VDC, 120ADC, 220VAC Line Input
from
Rp.313.500.000
Sebelum Pajak: Rp.313.500.000
SBS [Storage Battery Systems] SBS [Storage Battery Systems]
+ Keranjang
Tambah ke Favorit Bandingkan produk ini
Tags/penandaan: Additel , Digital , Pressure , Calibrators

The SBS-8400 Battery Capacitor Tester with Monitoring load bank has the advantage of having a large user friendly touch screen menu and a built-in data monitoring acquisition system complete with wireless modules for monitoring individual cell voltages.

The wireless modules are easy to hook up. Each module can record the real-time voltage of up to four individual cells or multi-cell blocks. During the test the user can view real-time data on the unit’s large 5.7" color screen or through their own laptop.

The SBS-8400 Battery Capacitor Tester is also unique in that it has adjustable automatic stop points. In addition, if you want to change the settings during a discharge test (current, stop time, stop voltage, etc.) you can do so without stopping the test. The unit can be easily, set to automatically stop the test if a single cell or the entire string falls bellow a user set voltage. A test can be done safely without the technician being on site and without the danger of over-discharging an individual cell or the entire system. The SBS-8400 Battery Capacitor Tester comes complete with software which allows the download of test results via USB flash drive and exports complete reports including individual cell voltages, graphs, etc.

Features:

  • 220VAC Line Input
  • Wide voltage and current range: 10-300V DC / 0-120 Amps
  • 5.7 in. LCD touch screen
  • 30 parameter presets that can be adjusted during testing
  • Selectable discharge mode: constant current (amps) / power (kW)
  • 4 adjustable stop points and multiple alarm designs
  • Low system voltage: 0-250V DC
  • Discharge time: 0-99 Hour 99 Min.
  • Discharge capacity: 0-9999 Ah
  • Low cell voltage: 0-15.00V
  • View test data in real time on screen or with computer via RS232
  • Automatically discharges batteries unmanned without danger of over-discharging
  • Individual cell monitoring capabilities via wireless modules
  • Can be used on a variety of systems with lead acid or nickel cadmium batteries
  • Test parameters are adjustable during test
  • Automatically protects and saves data from an unexpected test stop/end
  • Download data after discharge to USB drive
  • Can be slaved with other load banks to increase amp draw up to 720 Amps

What's In The Box:

  • (2) 6ft DC Cables
  • (1) 3ft Power Cord
  • (1) RS232 Wire
  • (1) Case with Wheels
  • (1) Computer Analysis Software
  • (1) User Manual

Brochure/Datasheet

Instruction manual

Smart Load Bank Manager Software
