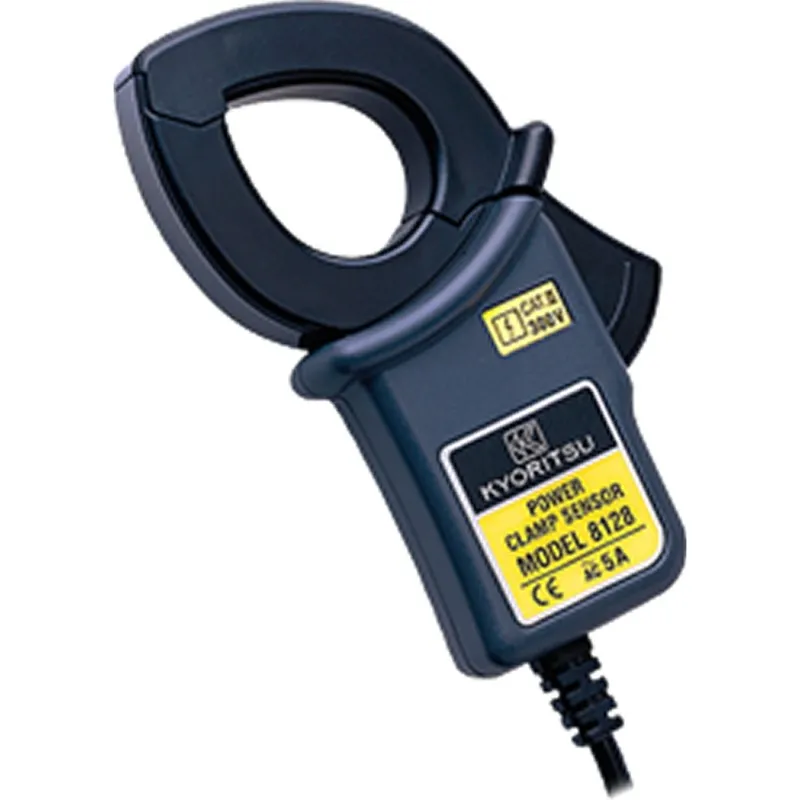

Kyoritsu 8128 [KEW8128] 5A AC, 24mm Load Current Clamp Sensors

Kyoritsu 8128 [KEW8128] 5A AC, 24mm Load Current Clamp Sensors
Kyoritsu 8128 [KEW8128] 5A AC, 24mm Load Current Clamp Sensors
0 ulasan • Tulis ulasan
+ Keranjang
Tambah ke Favorit Bandingkan produk ini
Jumlah minimum dari produk ini adalah 3
Tags/penandaan: Additel , Digital , Pressure , Calibrators

Non-contact Clamp-on system provides you easy and safe installations of the clamp sensor in the existing facilities without any errors.

Features:

  • Conductor size: Ø24mm
  • Rated current: AC 5A (Max.50A)
  • Output voltage: AC 50mV/5A [Max.500mV/50A] (AC 10mV/A)
  • Accuracy:
    • ±0.5%rdg±0.1mV (50/60Hz)
    • ±1.0%rdg±0.2mV (40Hz - 1kHz)
  • Phase shift within ±2.0º (45 - 65Hz)
  • Cable length: Approx. 3m
  • Output connector: MINI DIN 6pin
  • Output impedance: Approx. 20Ω
  • Applicable standards:
    • IEC 61010-1:2001,
    • IEC 61010-2-032:2002
    • CAT III 300V pollution degree 2
  • Operating temperature & humidity range: 0 - 50ºC, less than 85% RH (without condensation)
  • Dimensions: 100(L) x 60(W) x 26(D) mm
  • Weight: Approx. 160g
  • Included Accessories: 9095 (Portable case), Instruction manual, Cable marker
  • Optional Accessories:
    • 7146 (Banana Ø4 adjuster plug)
    • 7185 (Extension Cable)

What's In The Box:

  • (1) 9095 (Portable case)
  • (1) Instruction manual
  • (1) Cable marker

Brochure/Datasheet

Instruction manual

Catatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
