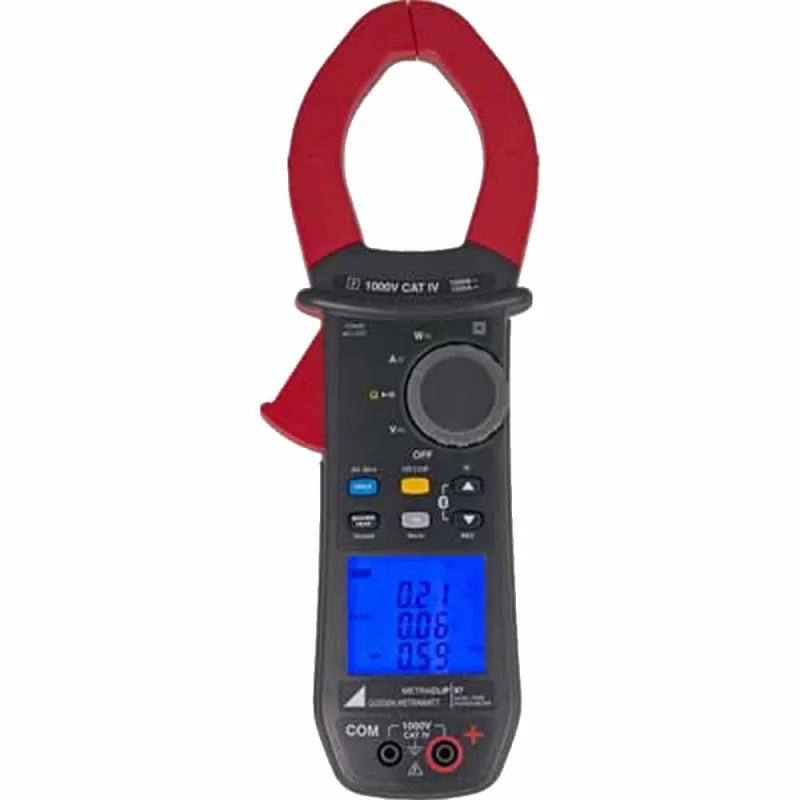

Gossen Metrawatt METRAclip 87 [M312L] 1000V AC/DC TRMS Clamp Multimeter

Gossen Metrawatt METRAclip 87 [M312L] 1000V AC/DC TRMS Clamp Multimeter
Gossen Metrawatt METRAclip 87 [M312L] 1000V AC/DC TRMS Clamp Multimeter
0 ulasan • Tulis ulasan
from
Rp.32.995.000
  • Brand: Gossen Metrawatt
  • Suku Cadang: M312L
  • Ketersediaan: 4 - 6 MINGGU
  • Update Terakhir: 30 May 2024
Gossen Metrawatt Gossen Metrawatt
+ Keranjang
Tambah ke Favorit Bandingkan produk ini
Tags/penandaan: Fluke , Basic , Battery , Analyzer

The METRAclip 87 clamp multimeter is suitable for the measurement of medium power values in the low-voltage range, and thus offers optimized safety for all types of systems and under any measuring conditions. In addition to applications in the areas of maintenance, troubleshooting and repair, the METRACLIP is also used for measurements in railway systems and low-voltage distribution networks.

AC/DC TRMS clamp multimeter, 1000 V AC/DC, 1400 Vpeak AC+DC, 1000 A AC, 1500 A DC, 1500 Apeak AC+DC, frequency measurement: 20 kHz/V ... 2 kHz/A, THD measurement from 0 to 25th harmonic, displacement factor (DPF), power measurement: 1000 kW - 1000 kvar - 1000 kVA, ripple, data logging, automatic AC/DC detection, true inrush, Hold, Min-Max, resistance measurement, acoustic continuity test, display illumination, connector sockets, clamp opening: 48 mm, Bluetooth, CAT IV 1000 V /CAT III 1000 V.

Features:

  • Current and frequency measurement via clamp meter:
    • METRAClip87: 1500 A AC TRMS and 1500 A DC
    • METRAClip88: 2000 A AC TRMS and 3000 A DC
  • Multimeter functions via connector sockets:
    • V (AC TRMS and DC) up to 1000 V voltage/frequency measurement
    • Ohm Resistance and continuity test (acoustic)
  • Additional measurements:
    • THD measurement Active, apparent and reactive power (W/VA/var)
    • Starter current measurement, true inrush
  • Calculations:
    • Power factor, crest factor (CF)
    • Displacement factor (DPF)
    • Residual ripple
  • METRAClip87:
    • Measured value recording
    • Data transmission to a PC via Bluetooth and evaluation with a PC program
  • METRAClip88:
    • Relative and differential measurements
    • Phase sequence (2-wire connection)
    • Diode test, energy meter
  • Compact and user-friendly
    • One-hand operation and illuminated digital display
  • Extremely safe thanks to CAT IV 1000 V

What's In The Box:

  • (1) Clamp multimeter
  • (2) Measurement cables (red and black, 1.6 m long), each with contact protected plug and plug-on
      test probe, CAT IV 1000 V/15 A
  • (2) Alligator clips, red and black, CAT IV 1000 V/15 A
  • (4) 1.5 V batteries
  • (1) Carrying pouch with holding strap
  • (1) Test report
  • (1) Safety data sheet
  • (1) Condensed operating instructions in D/GB/F/E/I, printed
  • (1) Operating instructions in D/GB/F/E/I, on mini CD ROM
  • 1 PC program for measured value evaluation on mini CD ROM

Brochure/Datasheet

Instruction manual
