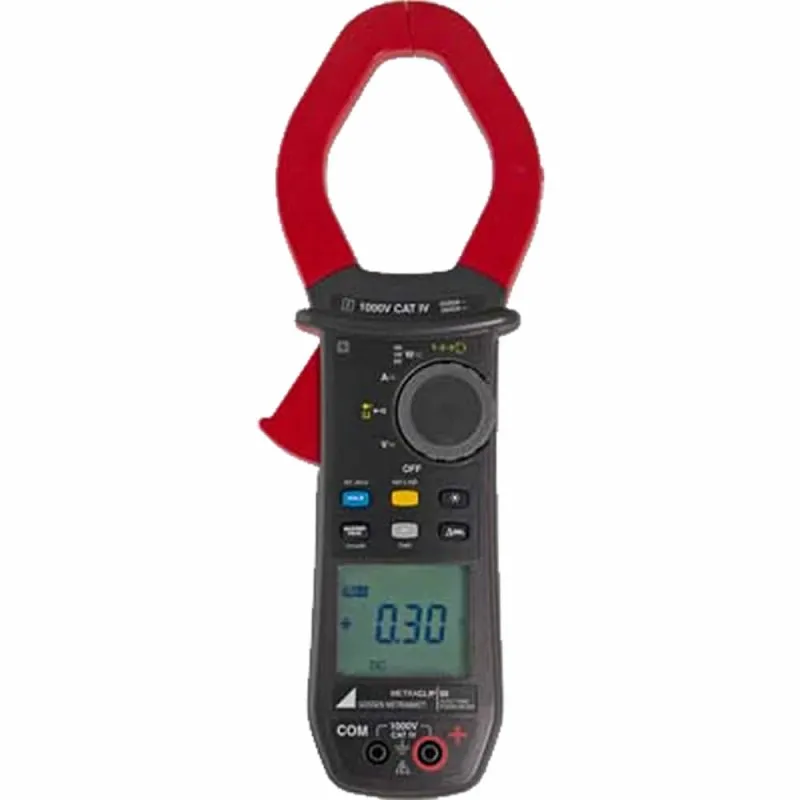

Gossen Metrawatt METRAclip 88 [M312M] 1000V AC/DC TRMS Clamp Multimeter

Gossen Metrawatt METRAclip 88 [M312M] 1000V AC/DC TRMS Clamp Multimeter
Gossen Metrawatt METRAclip 88 [M312M] 1000V AC/DC TRMS Clamp Multimeter
0 ulasan • Tulis ulasan
from
Rp.35.500.000
  • Brand: Gossen Metrawatt
  • Suku Cadang: M312M
  • Ketersediaan: 4 - 6 MINGGU
  • Update Terakhir: 30 May 2024
Gossen Metrawatt Gossen Metrawatt
+ Keranjang
Tambah ke Favorit Bandingkan produk ini
Tags/penandaan: Fluke , Basic , Battery , Analyzer

Thanks to its large clamp opening, the METRAclip 88 clamp multimeter is suitable for the low-voltage range with high power values, e.g. in the chemicals and petrochemicals industry, as well as for mixed AC+DC measurements at distribution and transmission networks.

AC/DC TRMS clamp multimeter, 1000 V AC/DC, 1400 Vpeak AC+DC, 2000 A AC, 3000 A DC, 3000 Apeak AC+DC, frequency measurement: 20 kHz/V ... 1 kHz/A, THD measurement, power measurement: 1000 kW - 1000 kvar - 1000 kVA, ?REL, phase sequence display, automatic AC/DC detection, true inrush, Hold, Min-Max, resistance measurement, acoustic continuity test, display illumination, connector sockets, clamp opening: 60 mm, CAT IV 1000 V /CAT III 1000 V.

Features:

  • Current and frequency measurement via clamp meter:
    • METRAClip87: 1500 A AC TRMS and 1500 A DC
    • METRAClip88: 2000 A AC TRMS and 3000 A DC
  • Multimeter functions via connector sockets:
    • V (AC TRMS and DC) up to 1000 V voltage/frequency measurement
    • Ohm Resistance and continuity test (acoustic)
  • Additional measurements:
    • THD measurement Active, apparent and reactive power (W/VA/var)
    • Starter current measurement, true inrush
  • Calculations:
    • Power factor, crest factor (CF)
    • Displacement factor (DPF)
    • Residual ripple
  • METRAClip87:
    • Measured value recording
    • Data transmission to a PC via Bluetooth and evaluation with a PC program
  • METRAClip88:
    • Relative and differential measurements
    • Phase sequence (2-wire connection)
    • Diode test, energy meter
  • Compact and user-friendly
    • One-hand operation and illuminated digital display
  • Extremely safe thanks to CAT IV 1000 V

What's In The Box:

  • (1) Clamp multimeter
  • (2) Measurement cables (red and black, 1.6 m long), each with contact protected plug and plug-on
      test probe, CAT IV 1000 V/15 A
  • (4) 1.5 V batteries
  • (1) Carrying pouch with holding strap
  • (1) Test report
  • (1) Safety data sheet
  • (1) Condensed operating instructions in D/GB/F/E/I, printed
  • (1) Operating instructions in D/GB/F/E/I, on mini CD ROM

Brochure/Datasheet

Instruction manual

Catatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
