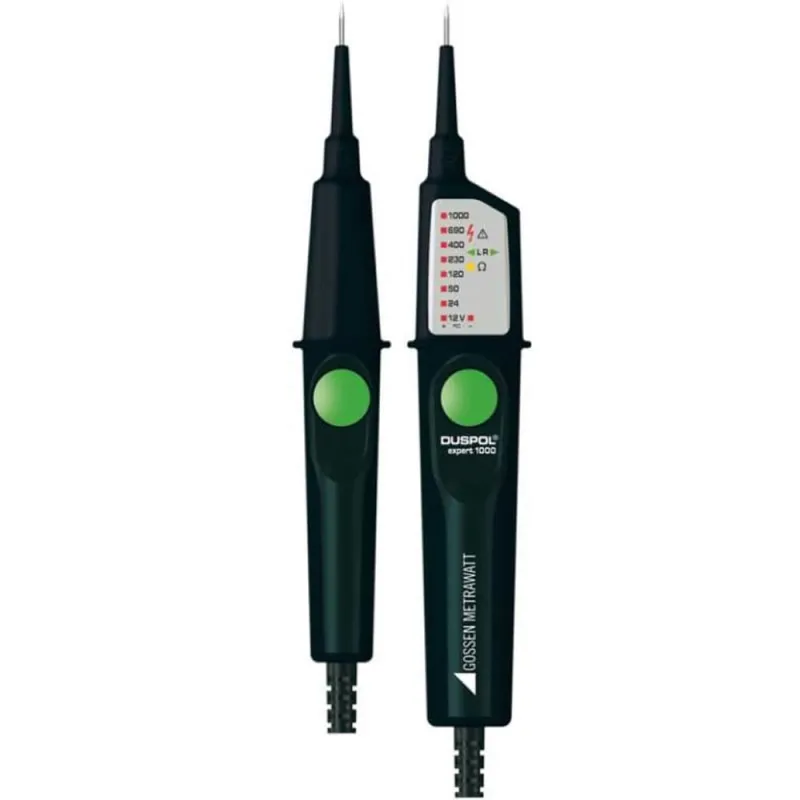

Gossen Metrawatt DUSPOL Expert 1000 [M611E] Voltage and Continuity Tester

Gossen Metrawatt DUSPOL Expert 1000 [M611E] Voltage and Continuity Tester
Gossen Metrawatt DUSPOL Expert 1000 [M611E] Voltage and Continuity Tester
from
Rp.4.500.000
  • Brand: Gossen Metrawatt
  • Suku Cadang: M611E
  • Ketersediaan: 2 - 4 MINGGU
  • Update Terakhir: 30 May 2024
Tags/penandaan: Additel , Digital , Pressure , Calibrators

The instruments are rated for DC and AC voltage tests in a voltage range from 12 V to 1000 V. With DC voltage, it is possible to perform polarity tests and with AC voltage, it is also possible to perform phase tests with these instruments. They show the phase sequence of a 3-phase current system, provided the neutral point is grounded.


Features:


  • Voltage from 12 - 1000 V AC/DC (LED)
  • Display levels: 12, 24, 50, 120, 230, 400, 690, 1000 V AC/DC
  • Optical continuity test up to 100 kΩ (yellow LED)
  • Phase sequence test (green LED) / phase test (red LED), polarity test (LED)
  • Direct display without key acknowledgment (high impedance testing)
  • Load switched via pushbutton (high impedance testing)
  • Intentional tripping of the RCCB
  • Vibration alarm in the tester handle
  • Measurement point illumination can be activated
  • IP65 protection (dust-proof / protected against water jets)
  • Rugged housing design with rubberized handle
  • Overvoltage category: CAT IV 600 V, CAT III 1000 V
  • Includes two 1.5 V AAA batteries (LR03) (voltage display as of 50 V even with dead batteries!)
  • Tested and approved in accordance with DIN EN 61243-3, VDE 0682-401:2011-02


                          What's In The Box:


                          • (2) AAA 1.5 V micro-batteries


                          Brochure/Datasheet


                          Instruction manual


                          Catatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
