Name: GE Inspection Technologies DMS Go+ Basic [DGOPLUSBASIC-3] Ultrasonic Thickness Gauge w/ A & B Scan and Data Recorder and Complete Package 3
Brand: PT. Indomultimeter Test Instrument
Availability: InStock
Rating: 5 (1 reviews)

GE Inspection Technologies DMS Go+ Basic [DGOPLUSBASIC-3] Ultrasonic Thickness Gauge w/ A & B Scan and Data Recorder and Complete Package 3

0 ulasan • Tulis ulasan

from

Rp.119.900.000

Brand: GE Measurement & Control
Suku Cadang: DGOPLUSBASIC-3
Ketersediaan: 4 - 6 MINGGU
Update Terakhir: 27 May 2024

GE Measurement & Control

Jumlah

+ Keranjang

Tambah ke Favorit Bandingkan produk ini

Tags/penandaan: Additel , Digital , Pressure , Calibrators

Description

The GE Inspection Technologies DMS Go Thickness Gauge combines an intuitive user interface, powerful data management, and an ability to provide accurate, reliable and comprehensive thickness inspection data. It has automatic gain control for excellent repeatability and corrosion monitoring. The main unit comes in three models:

DMS Go+ Basic
Uses A-scan verification and is compatible with high quality D-Meter dual element probes to handle a wide range of corrosion thickness applications.

DMS Go+ (Base)
Takes the basic features and adds B-scan (timed) for cross-sectional view and compatibility with single element probes for precision thickness measurement and temperature compensated readings up to 1000°F (540°C).

DMS Go+ Advanced
Can do all of the above and provides additional features of 6 data recording file structures plus 3D & 4D via UltraMATE and TopCoat/Auto-V measurement capabilities to eliminate removal of many coatings.

Features:

DMS Go+ comes with D-pad (arrow key) control
0.010 to 25in (0.40 to 650mm) measuring range in steel
0.0098 to 0.6299in/µs (250 to 16,000m/s) mat. velocity
0.0001 or 0.01in (0.01 or 0.1mm) display resolution
LCD display, 800 x 480 pixels
USM Go flaw detector upgrade available
Flip function allows for left or right hand use
Vibration and shock tested
IP67 sealed for dust & water protection

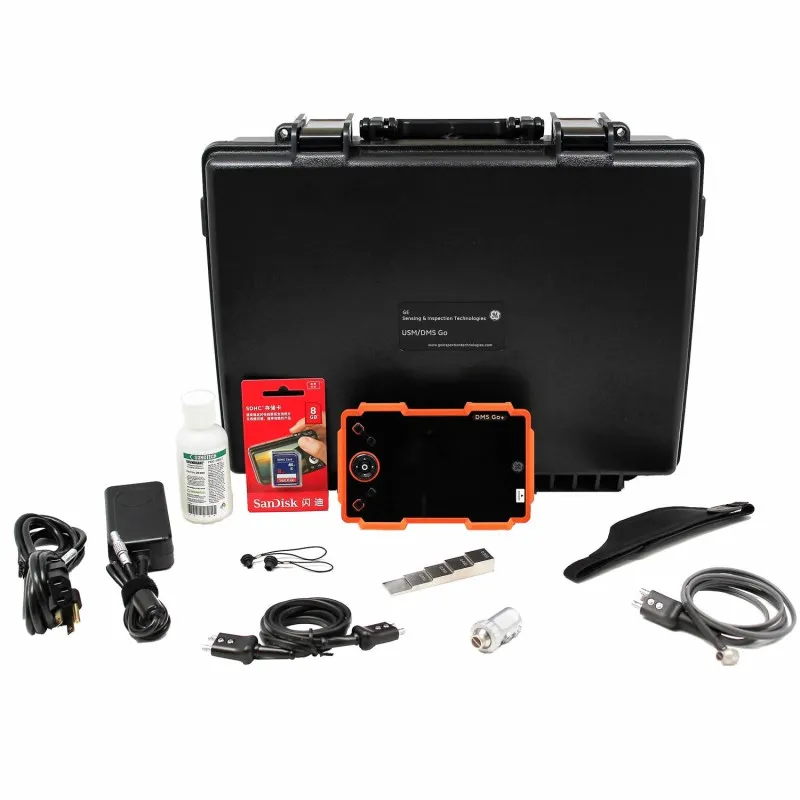

What's In The Box:

(1) Lithium Ion "on-board" rechargeable battery
(1) Battery charger /AC power supply
(1) LCD screen protectors (10-pack)
(1) SD card (8GB)
(1) Transport case
(1) Hand strap
(1) Quick reference card
(1) Operating manual on CD
(1) Certificate Of Calbration
(1) Certificate of conformity
(1) Couplant sample
(1) GEIT DA 512 Probe, 7.5 MHz, range 0.6 to 60 mm in steel w/ Potted Cable (113-552-013)
(1) GEIT DA501 Probe, 5 MHz, range 1.0 - 200 mm in steel (Requires KBA-533 cable) (GE-0500495)
(1) GEIT KBA533 Probe Cable, Straight Inst. End Connector (118-140-054)
(1) Carbon Steel 5-Step Block (118-540-310)

Brochure/Datasheet

Instruction manual
