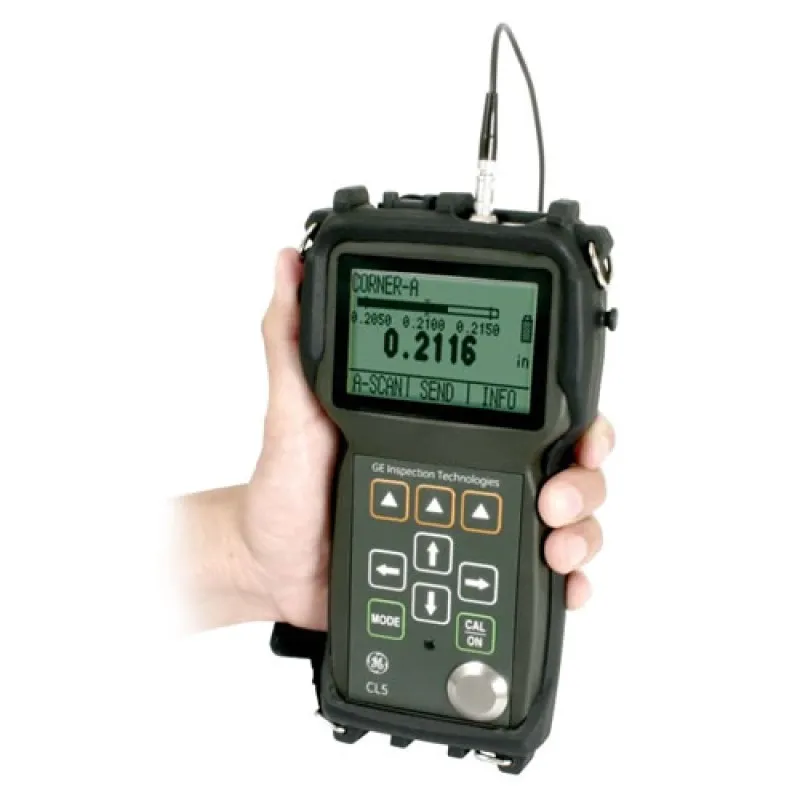

GE Inspection Technologies CL5 [022-508-909] Ultrasonic Thickness Gauge

GE Inspection Technologies CL5 [022-508-909] Ultrasonic Thickness Gauge
GE Inspection Technologies CL5 [022-508-909] Ultrasonic Thickness Gauge
0 ulasan • Tulis ulasan
from
Rp.94.500.000
GE Measurement & Control GE Measurement & Control
+ Keranjang
Tambah ke Favorit Bandingkan produk ini
 Configure Options
Tags/penandaan: Additel , Digital , Pressure , Calibrators

The GE Inspection Technologies CL5 ultrasonic thickness gauge (formerly Krautkramer CL 5) offers a full range of functionality in an easy to use, compact and rugged package. Three soft keys directly under the display activate the functions shown on the display menus. Four directional keys help make menu changes and navigation of the text entry screen simple and efficient.

The graphical display presents the user with seven different operation modes. The user can select Normal, Minimum Scan, Maximum Scan, Differential/Rate of Reduction, Thk+A-Scan (option), Velocity (option) or Quality View. The CL5 uses a programmable data recorder for easy set up of data files from the PC. The SD Card memory system places all the data recording and set-up information on a removable SD memory card. The files are formatted allowing drag and drop files when plugged directly into the PC. Other data such as digital photographs can also be stored on the same SD card. The CL5 allows direct connection to the PC, using a serial or USB port (with optional cable).

Features:

  • 0.005 in to 20.00 in (0.13 mm to 500 mm): depends on material, probe, surface condition and temperature
  • Inch – 0.0001, 0.001, 0.01 Resolution
  • 0.03937 to 0.78736 in/μs Material Velocity Range
  • 2.25 in × 2.56 in (40 mm × 57 mm) Display with backlight
  • Supervisor Lockout
  • Bi-directional serial RS-232: baud rate 1200, 9600, 57600 and 115200 I/O Capable
  • Programmable Data Recorder
  • Three AA Batteries (Alkaline, NiMH or NiCad)
  • Impact Resistant, Dust and Splash Proof, Gasket-Sealed, Case-Tested to IP54

What's In The Box:

  • (1) CL 5 precision thickness gauge
  • (1) Lithium poly battery pack
  • (1) AC power supply
  • (1) Plastic carry case
  • (1) Wire stand
  • (1) XL couplant sample, 4 oz.
  • (1) Firmware upgrade CD-ROM
  • (1) Operating manual
  • (1) Operating instructing card
  • (1) Certificate of Conformity

                    Brochure/Datasheet

                    Instruction manual

                    Catatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
