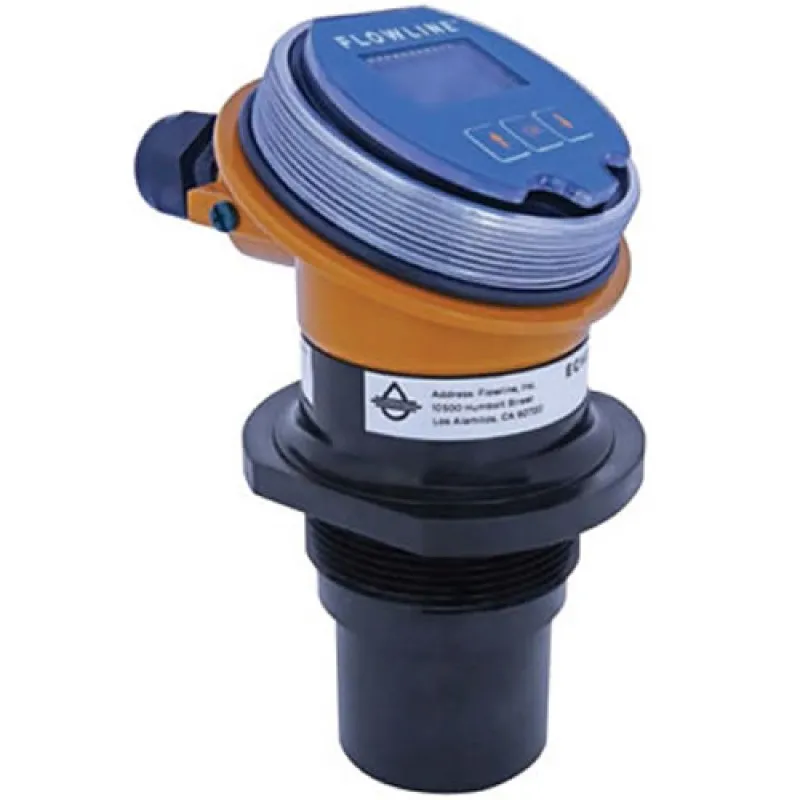

![Flowline EchoTouch US [US06-0003-00] Ultrasonic Level Transmitter, 6 m. (19.6')](image/cache/wp/gj/Products/Flowline_US06-800x800.webp "Flowline EchoTouch US [US06-0003-00] Ultrasonic Level Transmitter, 6 m. (19.6')")
Flowline, US06-0003-00, EchoTouch Reflective Ultrasonic Liquid Level Transmitter, 6 m. (19.6') Sensor Range, 2" NPT Process Mount without FOB Adapter.
The intrinsically safe reflective ultrasonic level transmitter provides continuous level measurement with a 4-20 mA analog and HART digital signal output and is configured via its integral push button display module or WebCal software. The non-contact liquid level sensor features proprietary Reflective Technology that delivers reliable level measurement in condensing environments. This sensor for bulk tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil. Typical applications include bulk storage, neutralization tank, clarifier and waste sumps.
Reflective Technology:
Condensation is the most common variable in liquid level applications. Condensation attenuates the acoustic signal of ultrasonic sensors with horizontal transducers, weakening their signal strength and signal to noise ratio by up to 50%, and substantially reducing their measurement reliability. At the core of Reflective Technology is a simple fact. Unlike flat horizontal surfaces, significant water droplets cannot adhere to smooth vertical surfaces. By orienting the transducer vertically, condensation runs off the transducer and does not affect sensor performance. The unimpeded transmit and receive signals are redirected to and from the liquid off a 45° reflector, delivering reliable level measurement. Thanks gravity.
Features:
What's In The Box:
