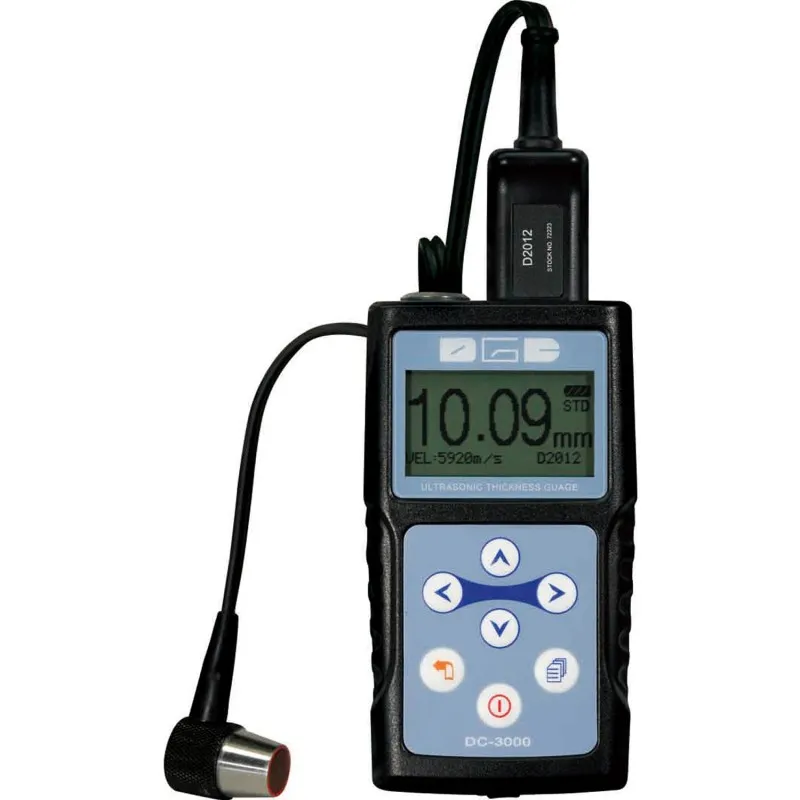

Name: Dragon DC-3020 [DC3020] Thru-Paint Ultrasonic Thickness Gauge w/ Data Logging
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Dragon DC-3020 [DC3020] Thru-Paint Ultrasonic Thickness Gauge w/ Data Logging

from

Rp.33.500.000

Sebelum Pajak: Rp.33.500.000

Brand: Dragon Electronics Co
Suku Cadang: DC3020
Ketersediaan: 2 - 4 MINGGU
Update Terakhir: 07 May 2024

Dragon Electronics Co

Jumlah

+ Keranjang

Tambah ke Favorit Bandingkan produk ini

Tags/penandaan: Fluke , Basic , Battery , Analyzer

Description

Thickness Gauge with Option to Measure Through Paint Layer (Echo to Echo) The DC3000C Thickness Gauge is an advanced thickness gauge for measuring fabric thickness even through paint / primer layers.

In this thickness gauge from DGC there are 2 different measuring methods. Through Echo for ordinary thickness measurement on blue steel and Echo to Echo for measurement through paint layers.

The supplied probe is recognized by the device during startup and automatically creates a probe zero. It remembers the last set audio speed and you are ready to measure in seconds.

The device has 9 solid material settings and it is also possible to store up to 4 individual (materials / sound speeds).

The DC3000C has a maximum range of 0.65 to 400mm (Echo to Echo 3 to 25mm) and a resolution of 0.01mm / 0.001 inch. Auto / manual gain adjustment is also possible.

Comes in heavy storage box incl. standard 5mhz audio head, gel, manual, software and cables.

Features:

The Through-Coating thickness measurement (E-E)
Pocket Size, easy to operate.
Automatic probe Zero calibration
Automatic probe identification
Measuring Range: E-E: 3-25mm T-E 0.65– 400 mm (Range depends on probe-material combination)
Memory: 5000 readings with location number (DC3020)
Data output: USB to PC (DC3020)
Three measurement modes: T-E, E-E, Scan
9 material velocities are stored for selection, or input the new velocity manual

What's In The Box:
