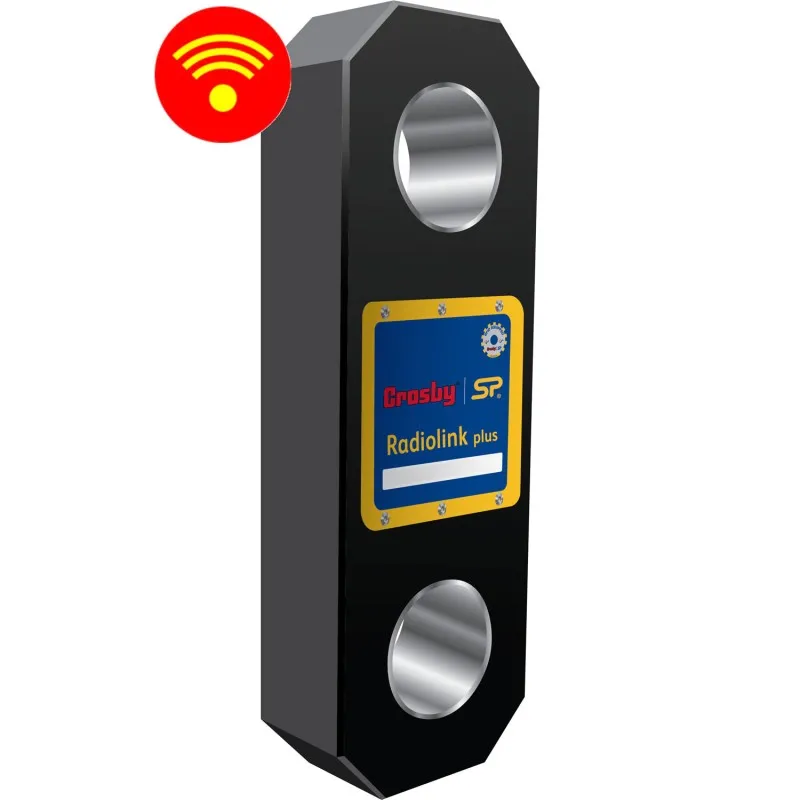

Crosby Straight Point Compund Plus [CP] Wireless Load Cell / Dynamomete Without Sackles

Crosby Straight Point Compund Plus [CP] Wireless Load Cell / Dynamomete Without Sackles
Crosby Straight Point Compund Plus [CP] Wireless Load Cell / Dynamomete Without Sackles
0 ulasan • Tulis ulasan
from
Rp.73.500.000
Sebelum Pajak: Rp.73.500.000
  • Brand: Crosby SP
  • Suku Cadang: CP
  • Ketersediaan: 4 - 6 MINGGU
  • Update Terakhir: 19 Apr 2024
Crosby SP Crosby SP
+ Keranjang
Tambah ke Favorit Bandingkan produk ini
 Configure Options
Tags/penandaan: Fluke , Basic , Battery , Analyzer

The Compound Plus (CP) wireless dynamometer is designed for weighing and dynamic load monitoring in a wide range of applications. All Compound Plus Dynamometers are supplied with 2.4GHz Wireless Output for connection to the optional battery-powered SW-HHP Handheld Display or INSIGHT Multiple Wireless Loadcell Software. There is also a version "-BLE" providing a Bluetooth Output for connection to the no-cost HHP App for Apple and Android Phones and Tablets.

The CP is constructed of high-quality aircraft-grade aluminum and features an advanced internal design structure. The design not only provides an unrivaled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67 environmental protection even with the battery cover plate missing, making this industry-leading dynamometer even more suitable for use in the harshest environments.

When supplied with the 2.4GHz wireless output the CP featured industry-leading wireless technology and range, has an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error-free transmission of both static weight and dynamic load to a wireless handheld controller.

The long-range Bluetooth signal connects to any iOS or Android device that has our free HHP app installed, providing the operator with a wireless range of up to 328ft / 100m. This allows them to stand in a safe position away from the load, with no requirement to read directly from the dynamometer. The app will also allow the operator to log data versus time, or on events such as over or underload. An adjustable alarm will alert the operator on their smartphone if any overload is occurring.

Designed for measurement of both Static and Dynamic Loads the Compound Plus can also be used in combination with our range of high-speed wireless data logging software allowing for simultaneous control, display and real-time data logging of up to 100 Straightpoint telemetry Load Cells. A .csv file format is used for data logging and opens in MS Excel allowing the easy visual presentation of the logged data and simple test certificate generation.

Features:

  • Accuracy of ±0.1% full scale with a safety factor of 4:1 up to 12:1 (depends on capacity)
  • 2.4GHz Wireless Output for connection to the optional battery-powered SW-HHP Handheld Display or
      SW-MWLC Multiple Wireless Loadcell Software
  • 2.4GHz Wiresless Output features a transmission distance of 2300 Ft (700 meters)
  • "-BLE" Bluetooth Output for connection to the no-cost HHP App for Apple and Android Phones and Tablets.
  • The Bluetooth Output features a transmission distance of 328 Ft (100 meters)
  • Compound Plus Housing is IP 67 Rated (NEMA6) for use in the harshest indoor & outdoor environments
  • Battery life of 1200 hours continuous use using 4x AA Alkaline Batteries
  • DNV Type Approval (DNVGL-ST-0378 – Standard for offshore and platform lifting appliances)
  • Uses powerful "internal" antenna eliminating the possibility to damage it
  • Uses standard Crosby Shackles, optional
  • Supplied with a Traceable Calibration Certificate and 2-Year Warranty

What's In The Box:

  • (1) Dynamometer
  • (4) AA batteries
  • (1) RFID tag
  • (1) Calibration certificate
  • (1) Instruction manual

Brochure/Datasheet

Instruction manual
