Checkline Cedar I Electric Screwdriver Torque Tester

0 ulasan • Tulis ulasan

from

Rp.43.850.000

Sebelum Pajak: Rp.43.850.000

Brand: Checkline
Suku Cadang: I-80
Ketersediaan: 4 - 6 MINGGU
Update Terakhir: 03 Apr 2024

Checkline

Jumlah

+ Keranjang

Tambah ke Favorit Bandingkan produk ini

Tags/penandaan: Additel , Digital , Pressure , Calibrators

Description

The Series i line of torque testers measure the peak torque of non-impact electric/air drivers. Under tightened bolts and screws do not generate sufficient clamp force and can lead to loosening and assembly failure. Over tightening, past the yield point, permanently deforms the screw joint and can also lead to failure which is why proper tightening torque is so important. Manual torque wrenches can also be calibrated.

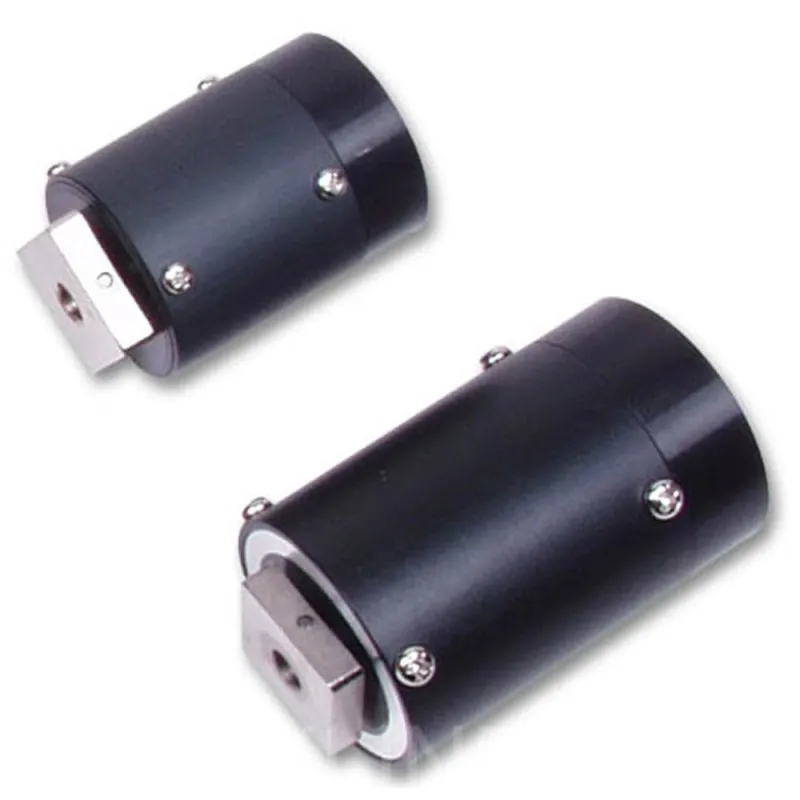

Unique Smart Adapters
The unique Smart Adapters simulate the screw joint and do not need to be backed-off after each test. This features increases testing efficiency and ease of use by reducing the time between each test. Results can be downloaded through the USB port for analysis with data acquisition software. The Series i torque calibrators are compatible with SW-1SV-USB software.

The peak torque or peak down torque in breakaway tests is captured automatically. The Series i torque calibrator displays Max, Min and Avg statistics. The tester can read values in lbf-in, kgf-cm, N-cm and N-m.

Do not use with impact or air tools (Ask for DI-1M impact wrench torque tester).

Features:

Capacities up to 174 lb-in / 20 Nm
Selectable units lbf-in, Kgf-cm, N-cm and N-m
Programmable High/Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing

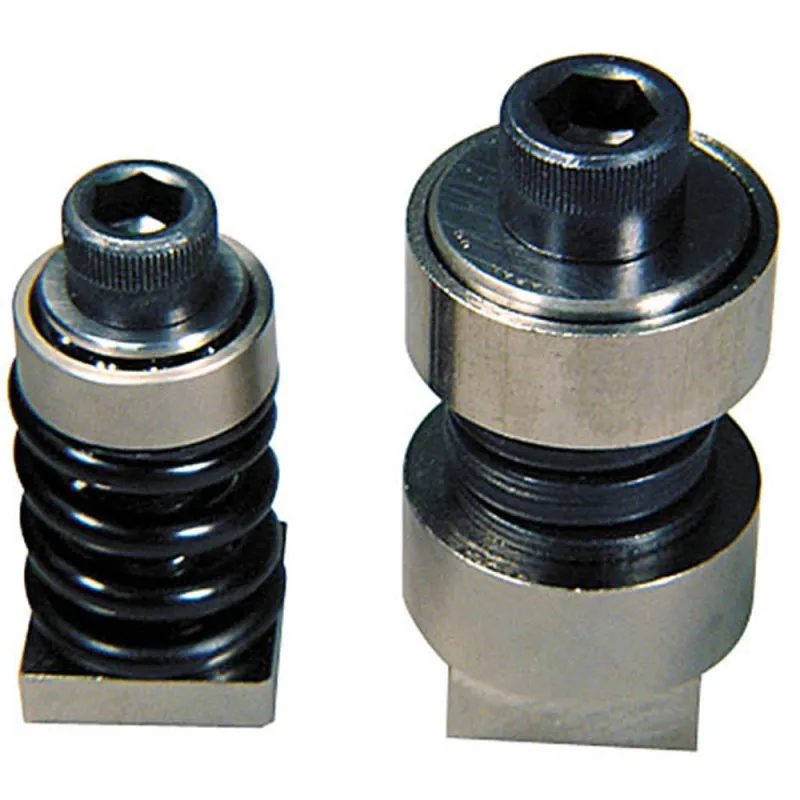

2 – driver adapters included: i-8 & i-80 come with smart adapters, CD-150 & DI-11 come with spring adapters
Peak, Real Time and Peak Down measuring modes (selectable)
Measure both clockwise and counterclockwise
USB virtual COM port sends peak (1 data) or continuous data (12 or 180 data/second)
Statistics: number of data, Max, Min, Avg
Heavy-duty metal construction
Runs on internal NiCad batteries or AC adapter
3/8″ drive for socket wrenches

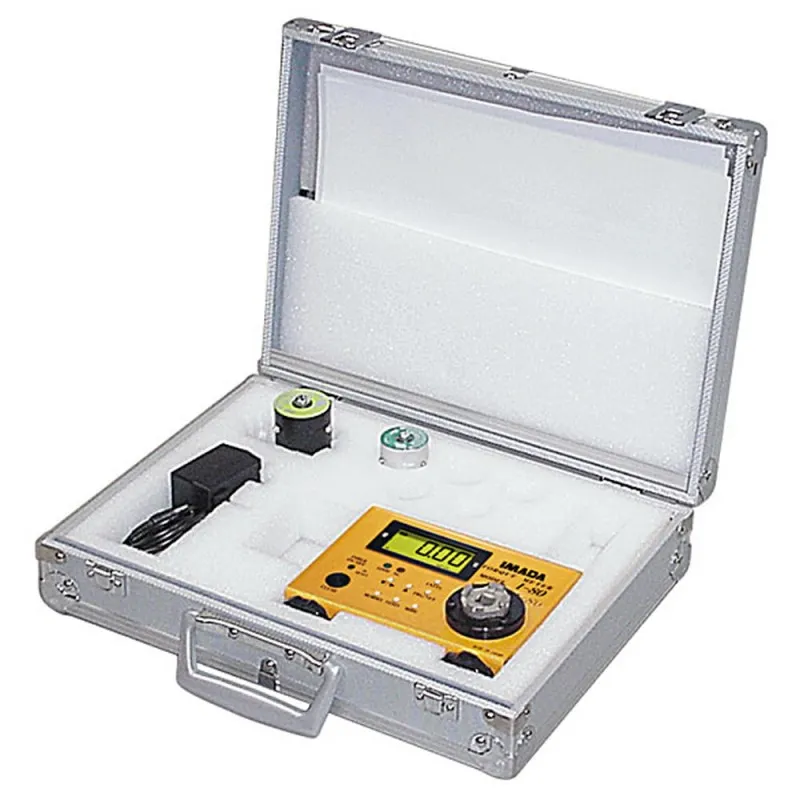

What's In The Box:

(1) Tester
(1) Hard carrying case
(2) Driver adapters and AC charger/adapter
(1) 3-Point Certificate traceable to NIST.
ISO Certificates are available at an additional charge.

Brochure/Datasheet

Instruction manual
