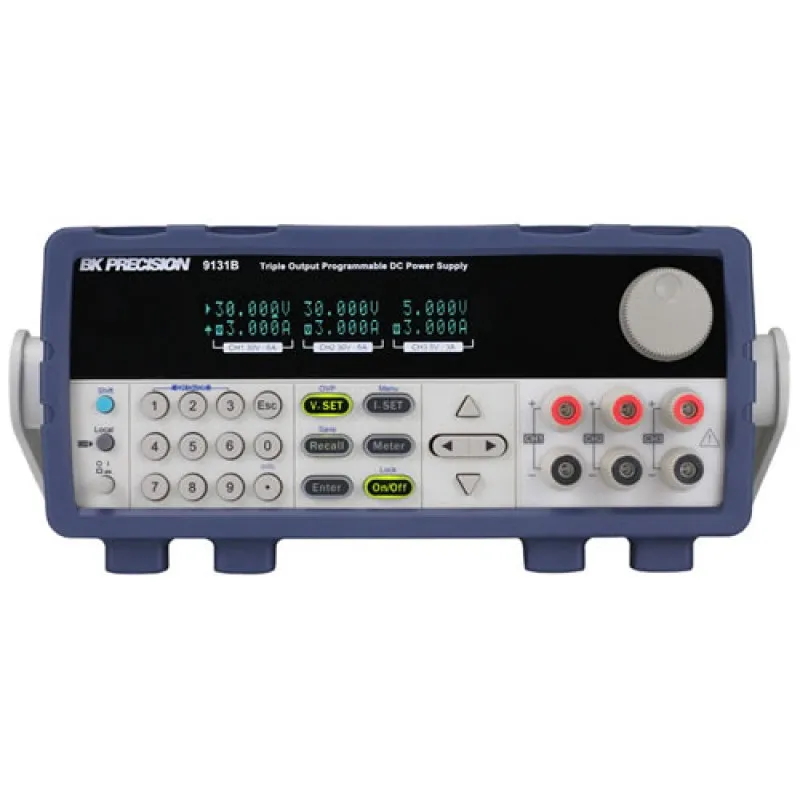

BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input

BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input
BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input
BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input
BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input
BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input
BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input
BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input
BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input
BK Precision 9131B [9131B-220V] Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input
from
Rp.41.850.000
Sebelum Pajak: Rp.41.850.000
  • Brand: BK Precision
  • Suku Cadang: 9131B-220V
  • Ketersediaan: 3 - 4 MINGGU
  • Update Terakhir: 26 Mar 2024
Tags/penandaan: Additel , Digital , Pressure , Calibrators

The BK Precision 9131B220V Programmable Triple-Output DC Power Supply, (2)30V/6A, (1)5V/3A, 375W, 220VAC Line Input features isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. The front panel keys and rotary knob with convenient cursors let users quickly set voltage and current values, and up to 36 instrument settings can be stored and recalled. The standard USB (USBTMC-compliant), RS232, and GPIB interfaces supporting SCPI commands can be used to remotely control the power supplies via a PC. Users can control the power supply, execute test sequences or log measurements using the provided PC software application.


Features:


  • Output Voltage: 0 - 30V(2), 0 - 5V(1)
  • Output Current: 0-6A(2), 0-3A(1)
  • Max Power: 375 W
  • Input Current: 220VAC, 47 Hz - 63 Hz
  • Dimensions (WxHxD) 8.45 in. x 3.47 in. x 13.96 in.
  • Three independent and electrically isolated outputs
  • Standard USB (USBTMC-compliant), RS232, and GPIB interfaces
  • Displays voltage and current settings for all three channels simultaneously
  • Low noise, linear regulation
  • High programming and readback resolution of 1 mV / 1 mA
  • Remote Sense on all channels
  • Store/recall up to 36 instrument settings
  • Series, parallel, and tracking modes


What's In The Box:


  • (1) Power Cord
  • (1) Instruction Manual
  • (1) Test report
  • (1) Certificate of Calibration


Brochure/Datasheet


Instruction manual
