Description

The Yokogawa CW10 Clamp On Power Meter can measure single phase AC and DC Power, Voltage, Currents, Power Factor, Frequency, Harmonics. It will also contribute to workers maintenance of not only consuming equipment but equipment for renewable energy such as solar and wind power generation.

Features:

AC/DC Power up to 600 kW
True RMS for AC
Harmonics 1st to 25th order
Power fluctuation using the ACA Inrush and Peak hold functions
AC/DC Voltage max: 1000 V
AC/DC Current max: 600 A
Frequency, Resistance, Continuity, Diode check, Power factor
Up to 9999 counts, approx. 37mm max. diameter of measurable conductor
(the jaw opens approx. 45mm max.)
CATIV 600V and CATIII 1000V compliant
Backlight on the display area turns on and a white LED automatically illuminates the front of jaw when clamping
Non-contact Voltage Detection (Red LED lights up on detection)
Easy Operation with the Navigator key
Low Pass Filter, Phase Detection, AC/DC Auto Sense

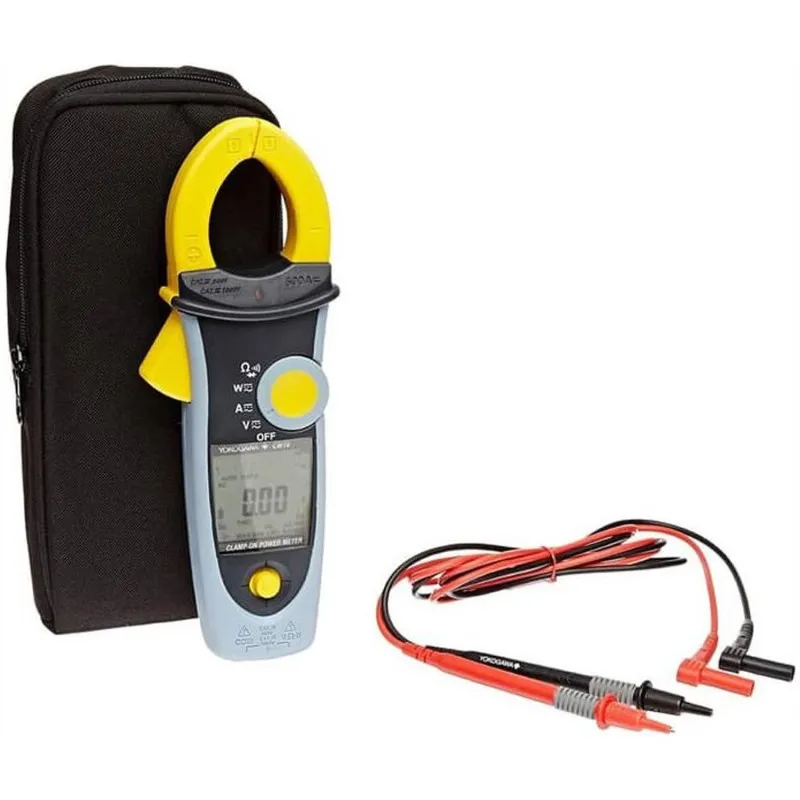

What's In The Box:

(1) Test leads
(1) Carrying case
(1) 9V alkaline battery
(1) Manual
