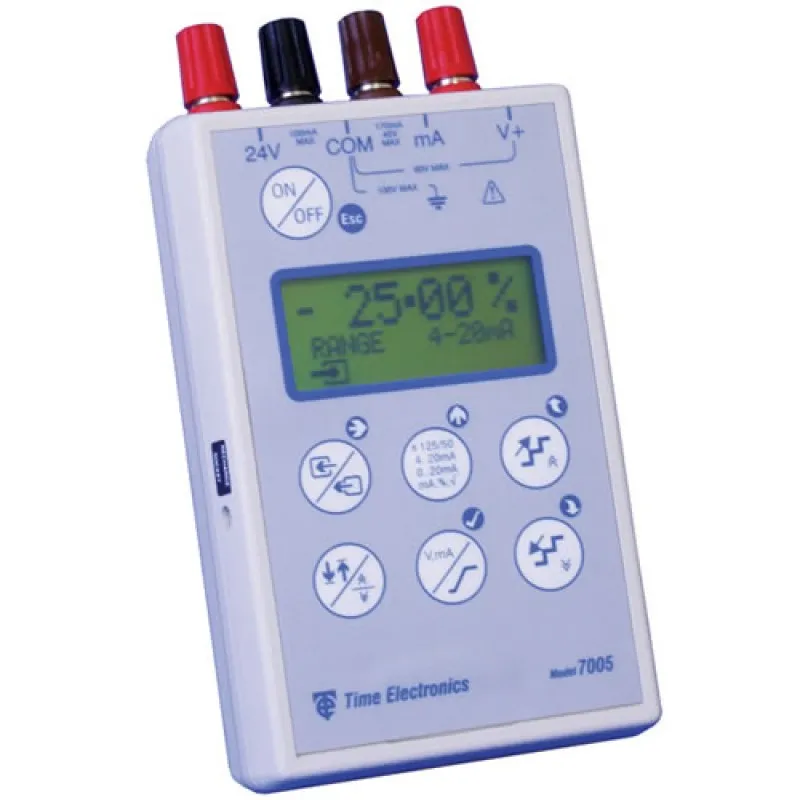

Time Electronics 7005 Electrical Calibrator

Time Electronics 7005 Electrical Calibrator
Time Electronics 7005 Electrical Calibrator
0 reviews • Write a review
from
Rp.28,900,000
Ex Tax: Rp.28,900,000
  • Brand: Time Electronics
  • Part Number: 7005
  • Availability: 2 - 4 WEEKS
  • Last Updated: 30 Jan 2024
Time Electronics Time Electronics
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The Time Electronics 7005 electrical calibrator is a precision handheld instrument primarily used for the calibration and simulation of voltage and current loops. The high accuracy 7005 is compact and lightweight making it easily portable and ideal for plant operations and field use. Combined with user friendly controls and simple operation the 7005 is an excellent model for both process engineers and calibration technicians.

The 7005 has three operating modes to provide a fast and easy solution to process applications; Loop current/voltage source for simulating a transmitter and the loop supply, sink of loop current for simulating a transmitter, and measurement of loop current/voltage for simulating a loop indicator.

In source mode the range can be user programmed to any value between 0mA and 50mA, or 0V and 21V. For example a low point of 10mA and a high point of 50mA could be set giving a span of 40mA.

Measure mode provides both voltage and current measuring capability with 5 digit resolution. Ranges are 0 to ±5V and ±5 to ±25V, 0 to ±25mA and ±25 to ±125mA. Alternatively the signal can be measured as a % of span for the following ranges; 4 to 20mA, 0 to 20mA, square root 4 to 20mA, or square root 0 to 20mA. For all measurements a Min/Max recording function is available on demand.

An internal NiMH battery powers the unit for typically 9 hours continuous use and an external mains charger is supplied as standard. An automatic power-down feature is incorporated to conserve battery life, which can easily be disabled if not required. The 7005 is constructed in an impact resistant ABS case and connections are made via 4 off 4mm binding terminal posts.
