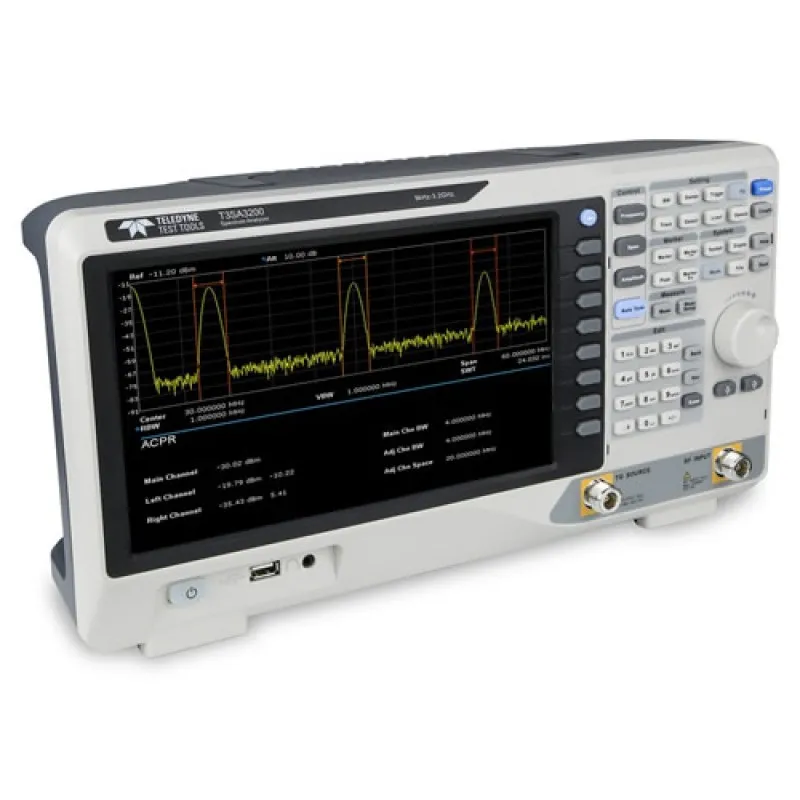

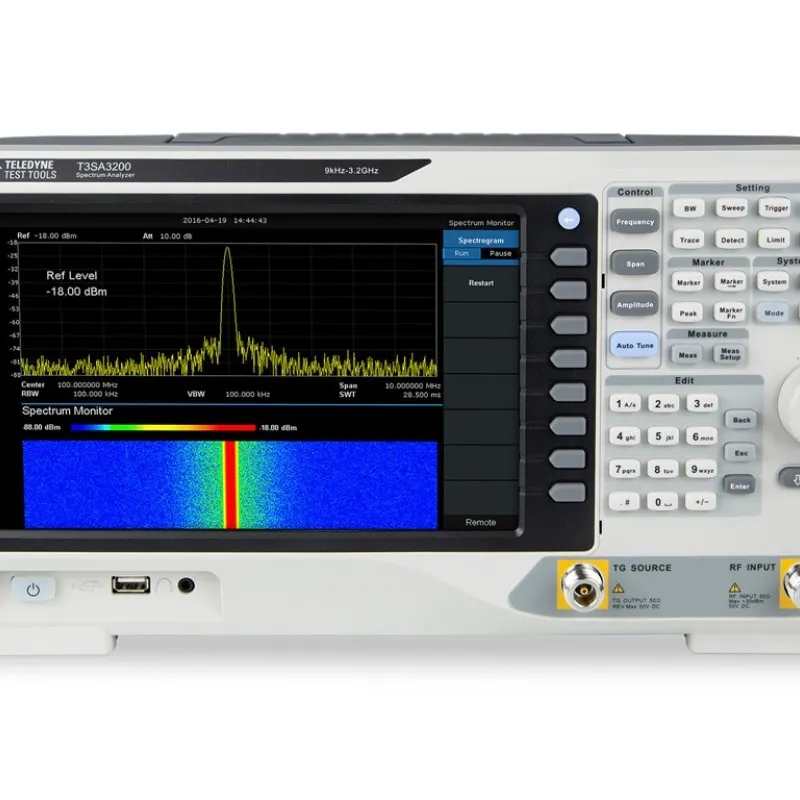

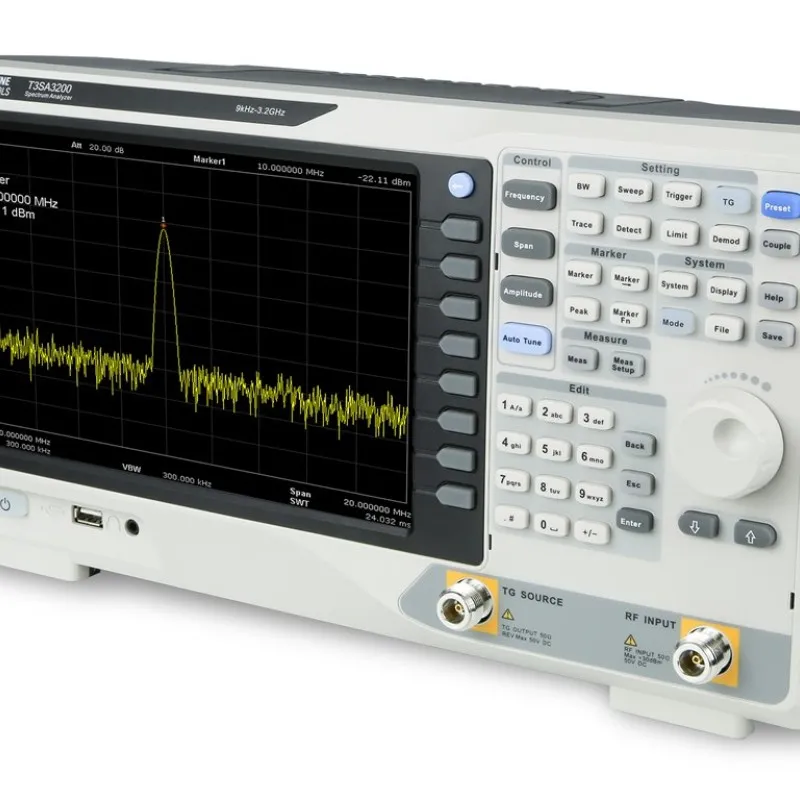

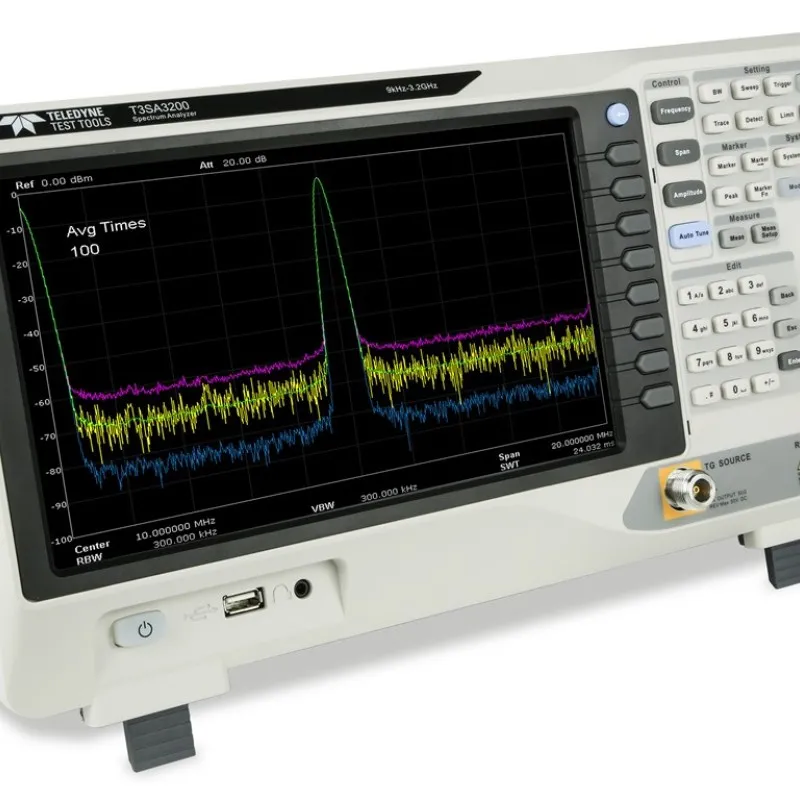

Name: Teledyne LeCroy T3SA Series [T3SA3100] 9KHz - 2.1GHz Spectrum Analyzer
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Teledyne LeCroy T3SA Series [T3SA3100] 9KHz - 2.1GHz Spectrum Analyzer

from

Rp.78,500,0000

Ex Tax: Rp.78,500,0000

Brand: Teledyne
Part Number: T3SA3100
Availability: 4 - 6 WEEKS
Last Updated: 12 Jan 2024

Teledyne

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

The Teledyne Test Tools T3SA3100 is an economical 9kHz to 2.1GHz Spectrum Analyzer. The small footprint and user-friendly interface is matched with high performance specifications and advanced measurement functionality and capabilities. Its -161 dBm/Hz Displayed Average Noise Level (Typ.) allows you to view and measure very small signals, while the optional Tracking Generator facilitates product frequency response measurements. An optional EMI Pre-compliance Test Kit helps in making EMI receiver measurements to CISPR 16-1-1, and an optional Reflection Measurement Kit measures VSWR, Return Loss, Reflection Coefficient. There is a built-in switchable pre-amplifier for making higher sensitivity measurements. Another available option is the Advanced Measurement kit, which adds channel power, adjacent channel power ratio, time domain power, occupied bandwidth, third order intercept readings to further enhance the measurement capability of this versatile spectrum analyzer.

The all-digital IF design produces a remarkable 1Hz Minimum Resolution Bandwidth (RBW). The bright 10.1” color WVGA 1024 x 600 display shows results clearly.

Teledyne Test Tools spectrum analyzers offer comprehensive measurement capabilities even in the base units. The enhancement options support the user when conducting more complex measurements and make daily measurement tasks easier and faster.

Typical application areas include R&D labs, education, production, and general benchtop engineering and maintenance requirements.
