Name: Techno-AC Success ATG127E [ATG-127E] Cable Locator and Acoustic Fault Detector
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Techno-AC Success ATG127E [ATG-127E] Cable Locator and Acoustic Fault Detector

0 reviews • Write a review

from

Rp.158,339,9710

Brand: TECHNO-AC
Part Number: ATG-127E
Availability: 6 - 8 WEEKS
Last Updated: 25 Sep 2024

TECHNO-AC

Qty

Add to Cart

Add to Wish List Compare this Product

Description

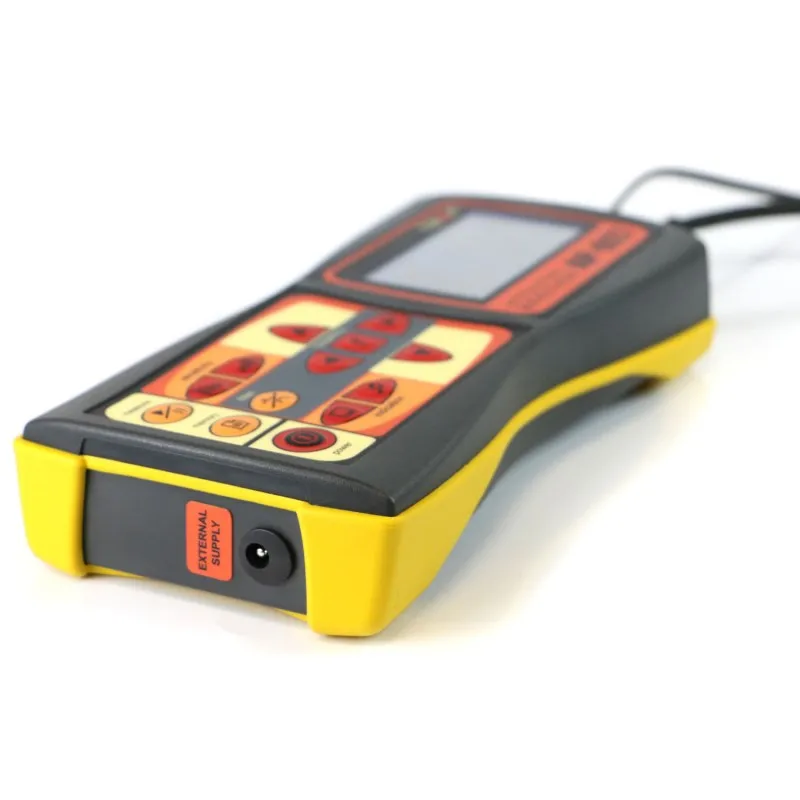

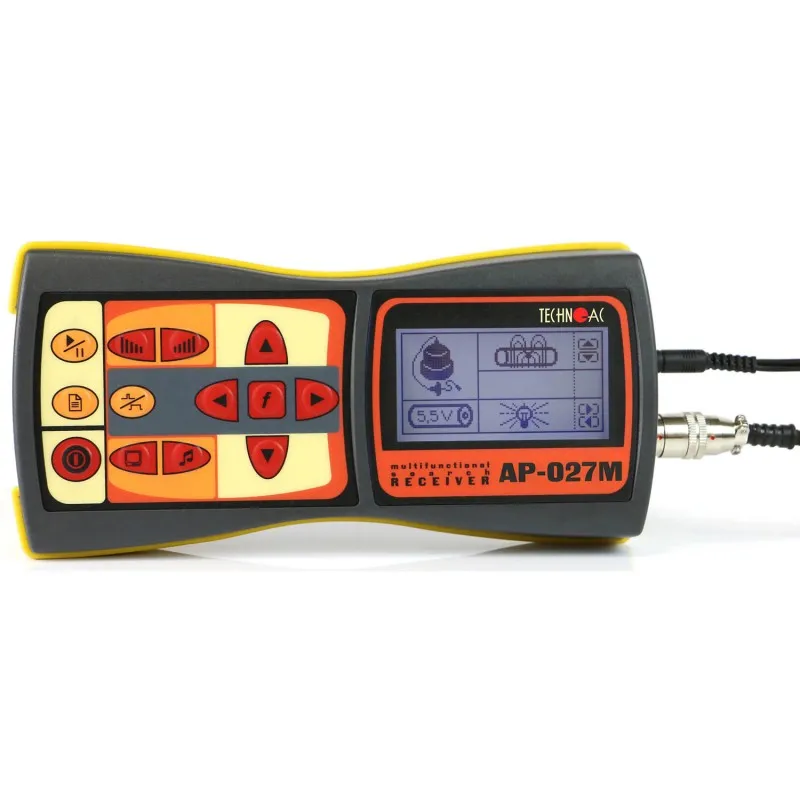

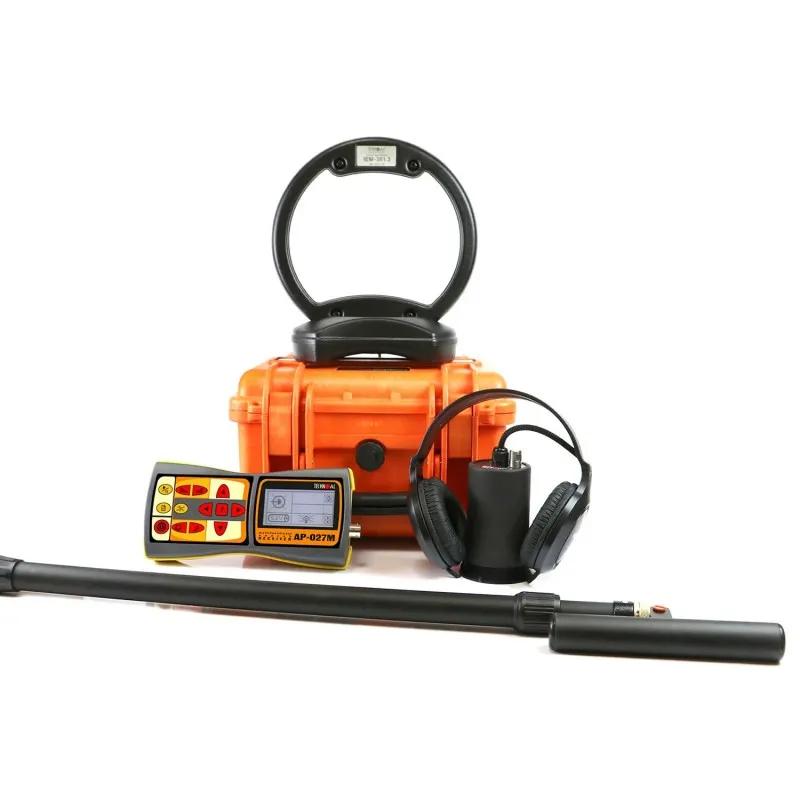

Techno-AC Success ATG127E [ATG-127E] Cable Locator and Acoustic Fault Detector. The set includes the digital multifunctional receiver АР-027M and the portable transmitter with output power up to 120 W.

Brief description:

Receiver frequencies: 50(60) Hz / 100(120) Hz / 512 Hz / 1024 Hz / 8192 Hz / 33 kHz.

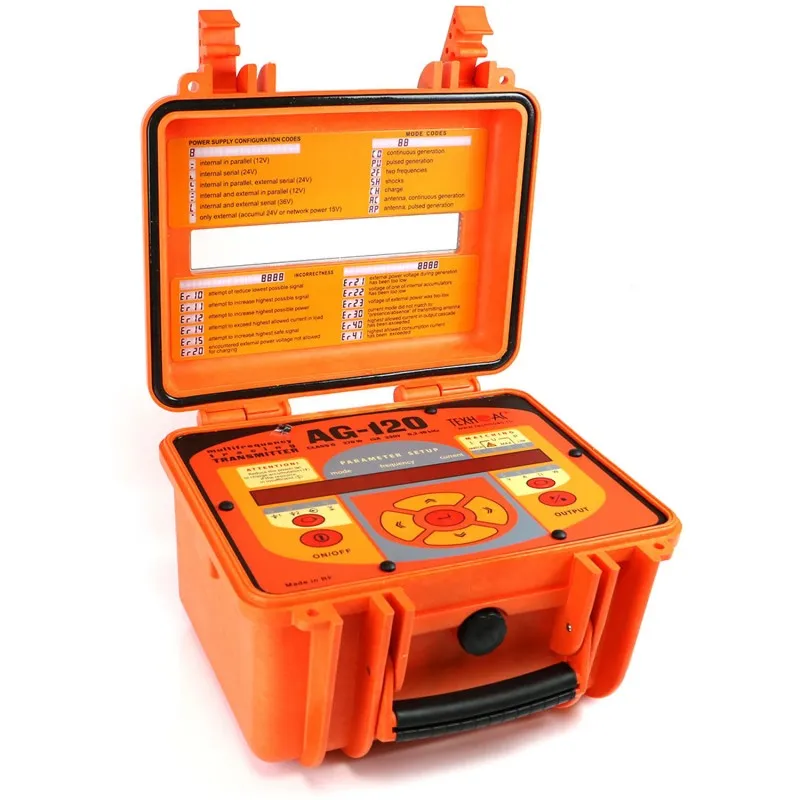

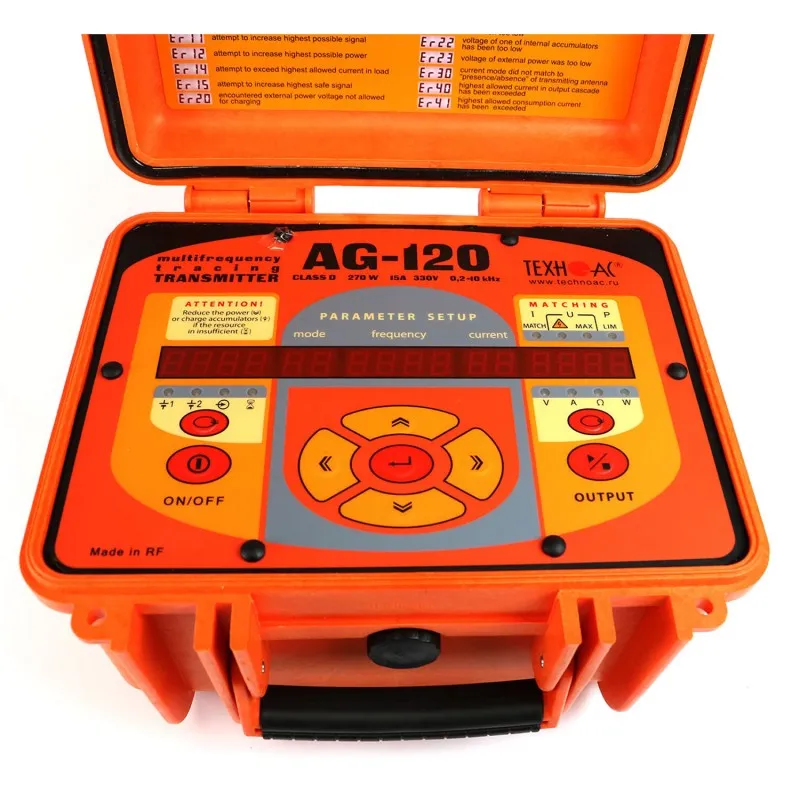

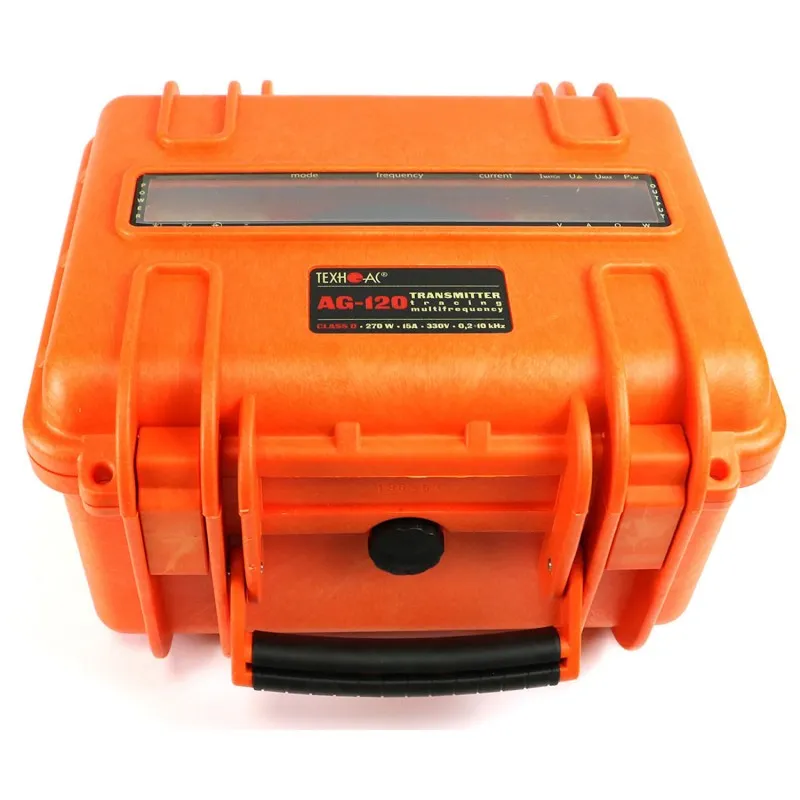

Transmitter - 120 W, frequency range: 200 to 9999 Hz.
Storage of 31 signal level with a graph displayed.
Visual indication of the signal on the display: scale, graph and spectrum.
Graphic visualization (moving chart) of sequence of measurements, max and min signal levels.
Sound indication.
Choice of bandwidth.
Two-segment indication of frequency spectrum (and “filtered”) signal.
Light weight.
Comfortable to wear for long terms.
LCD display.
Warranty 1 year.

Application:

Cable fault location by electromagnetic and acoustic methods (with high-voltage pulse transmitter, which is not included into the set).
Detection of insulation deterioration on cables by contact and non-contact methods.
Detection of cables up to 6 m depth.
Detection of metal pipelines up to 6 m depth.
Survey the ground before the ground works.
“Broadband” mode.
Distance of tracing from the place of transmitter connection is up to 10 km.
Indirect measurement of the depth.
