Name: Techno-AC Success ATG43515E [ATG-435.15E] Cable Locator and Acoustic Fault Detector
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Techno-AC Success ATG43515E [ATG-435.15E] Cable Locator and Acoustic Fault Detector

0 reviews • Write a review

from

Rp.103,811,9350

Ex Tax: Rp.103,811,9350

Brand: TECHNO-AC
Part Number: ATG-435.15E
Availability: 6 - 8 WEEKS
Last Updated: 25 Sep 2024

TECHNO-AC

Qty

Add to Cart

Add to Wish List Compare this Product

Description

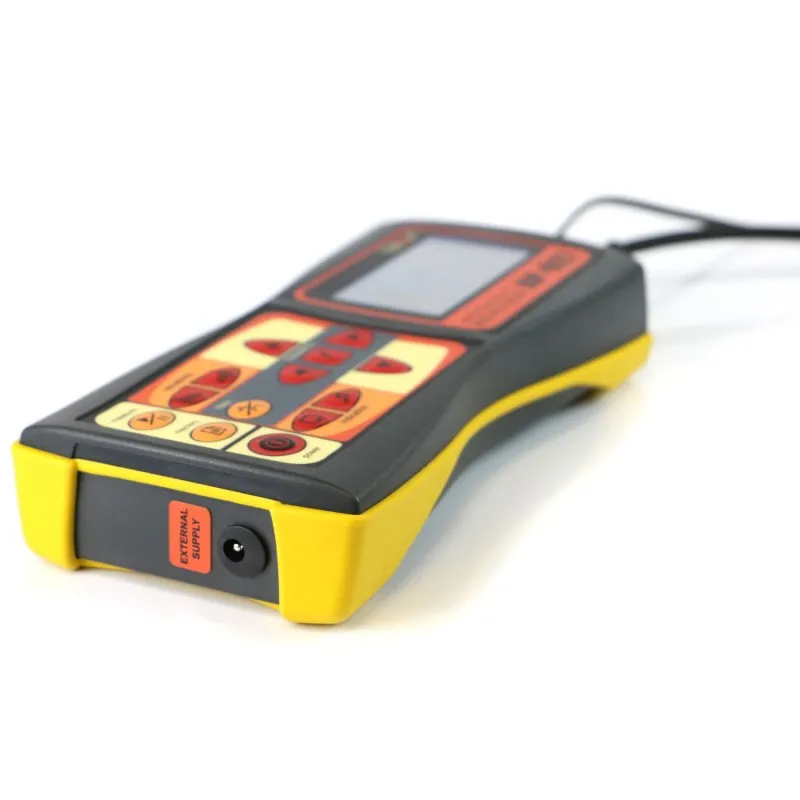

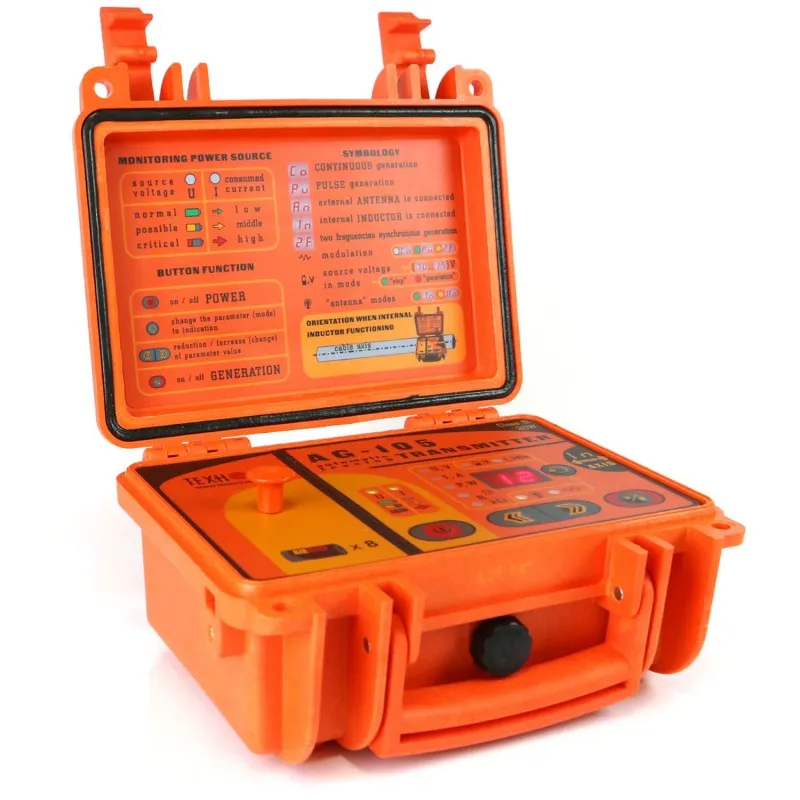

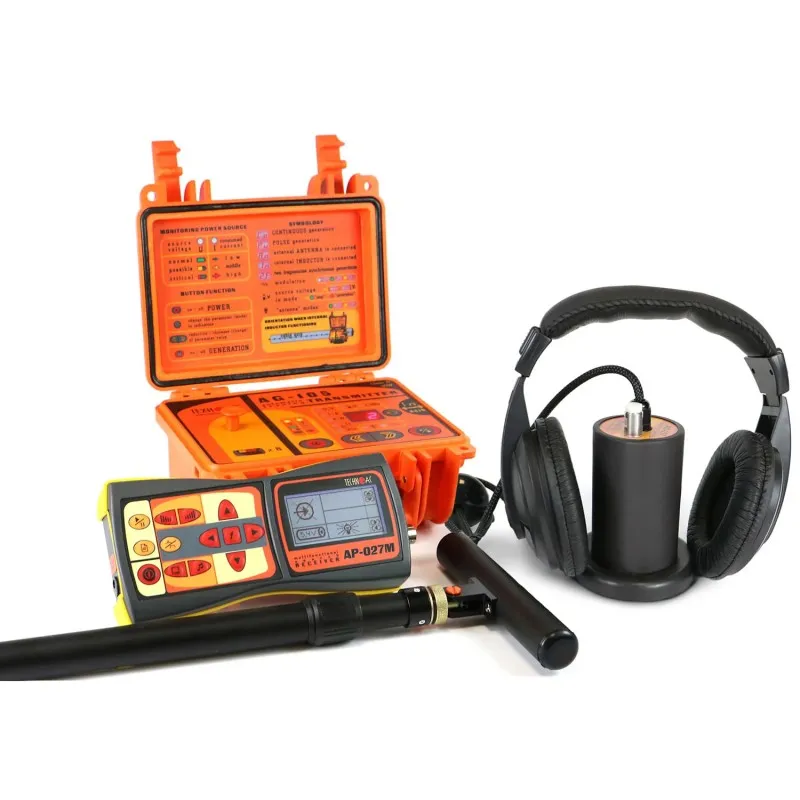

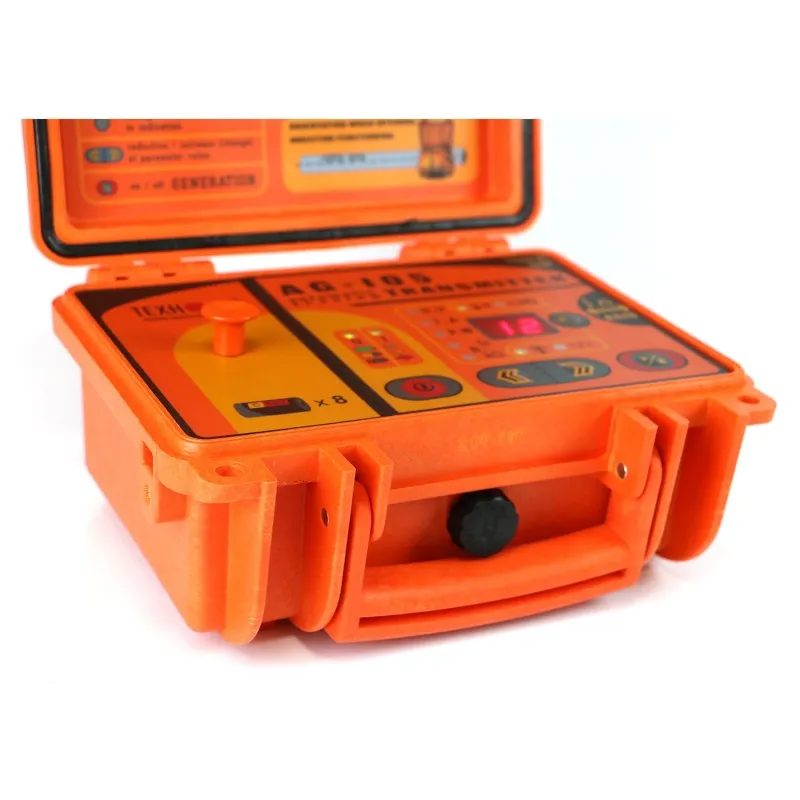

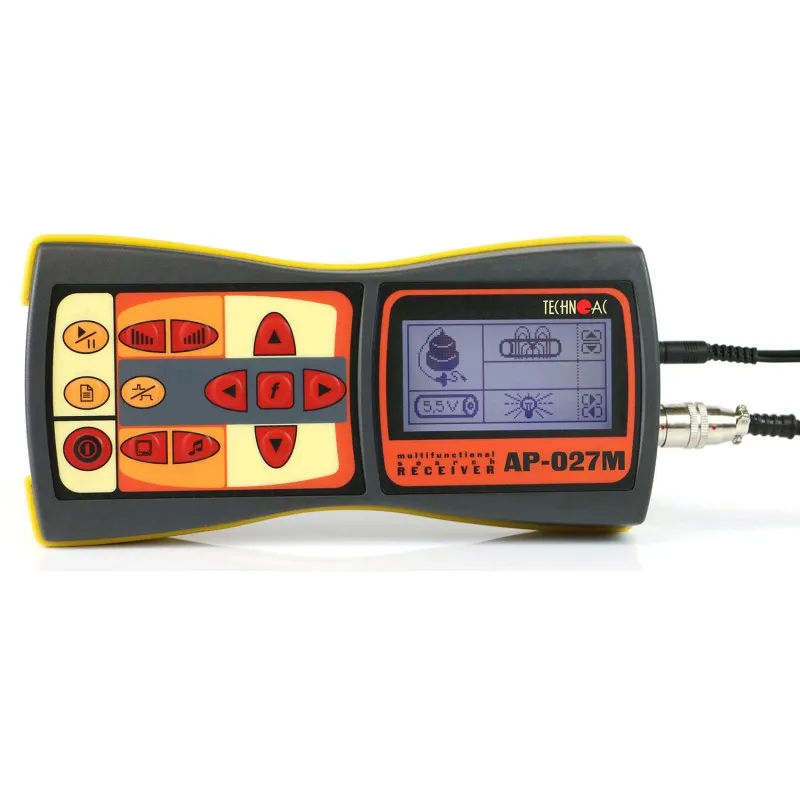

Techno-AC Success ATG43515E [ATG-435.15E] Cable Locator and Acoustic Fault Detector. The set includes the digital multifunctional receiver АР-027M and the portable transmitter with output power up to 20 W.
Brief description:

Receiver frequencies: 50(60) Hz / 100(120) Hz / 512 Hz / 1024 Hz / 8192 Hz / 33 kHz.
Passive receiver frequencies: power cable detection, BB mode.
Storage of 31 signal level with a graph displayed.
Visual indication of the signal on the display: scale, graph and spectrum.
Graphic visualization (moving chart) of sequence of measurements, max and min signal levels.
Sound indication.
Choice of bandwidth.
Two-segment indication of frequency spectrum (and “filtered”) signal.
Light weight.
Comfortable to wear for long terms.
LCD display.

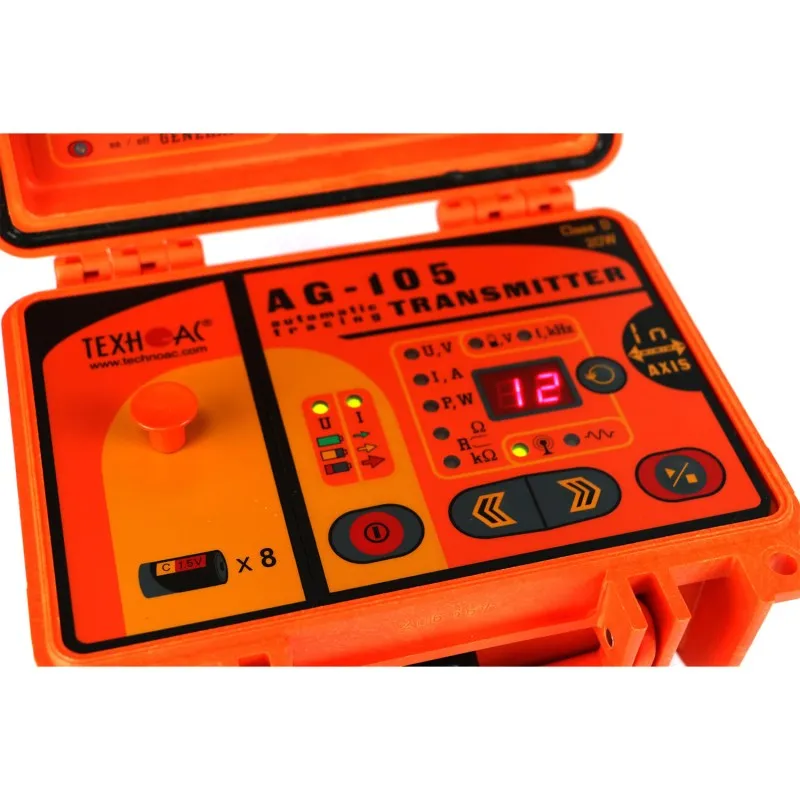

Transmitter frequencies: 0.5 / 1.0 / 8.2 / 33 kHz.
Transmitter 20 W.
Distance of tracing is 3 km from the place of transmitter connection.
Warranty 1 year.

Application:

Cable fault location by electromagnetic and acoustic methods (with high-voltage pulse transmitter, which is not included into the set).
Detection of insulation deterioration on cables by contact and non-contact methods.
Detection of cables up to 6 m depth.
Detection of metal pipelines up to 6 m depth.
Survey the ground before the ground works.
"Broadband" mode.
Distance of tracing from the place of transmitter connection is up to 3 km.
Indirect measurement of the depth.
