SyQwest P04816HD [P04816HD] Dual Frequency Transducer 33/210khz

SyQwest P04816HD [P04816HD] Dual Frequency Transducer 33/210khz
SyQwest P04816HD [P04816HD] Dual Frequency Transducer 33/210khz
SyQwest P04816HD [P04816HD] Dual Frequency Transducer 33/210khz
SyQwest P04816HD [P04816HD] Dual Frequency Transducer 33/210khz
SyQwest P04816HD [P04816HD] Dual Frequency Transducer 33/210khz

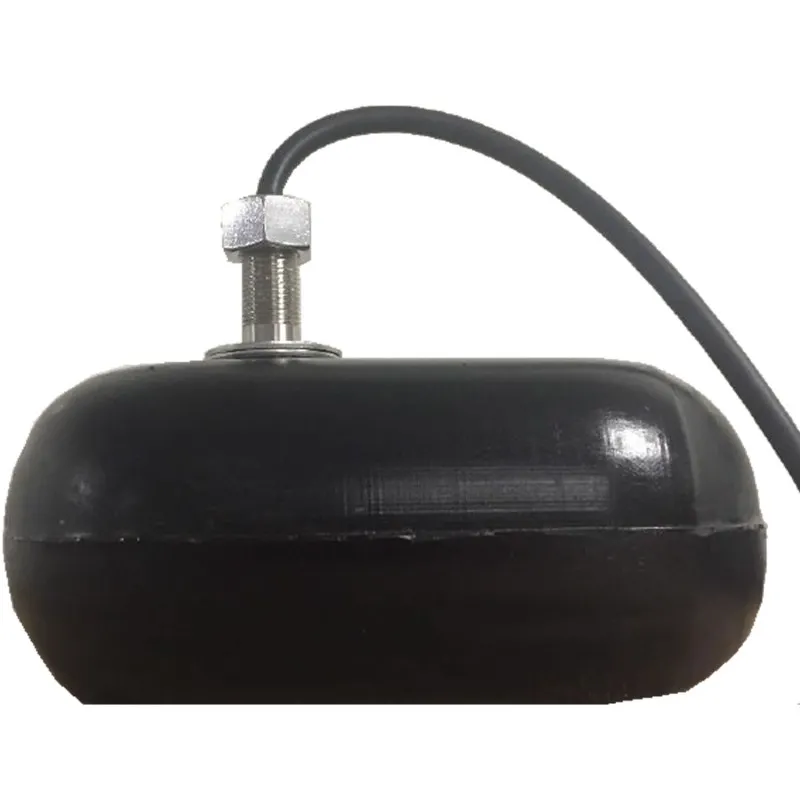

The 33/210kHz diplexer transducer features simultaneous dual frequency capability in a compact, lightweight housing. These frequencies feature low side lobes, which focus more energy on the target and provide good definition in hard bottom areas. The low ringing (Q) versions provide clear bottom detail and are especially effective at surveying in extremely shallow water.

Applications:

  • River, harbor or estuary surveys
  • Not suitable for Thru Hull mounting
Options:

  • Impedance to customer
  • specifications using matching transformer

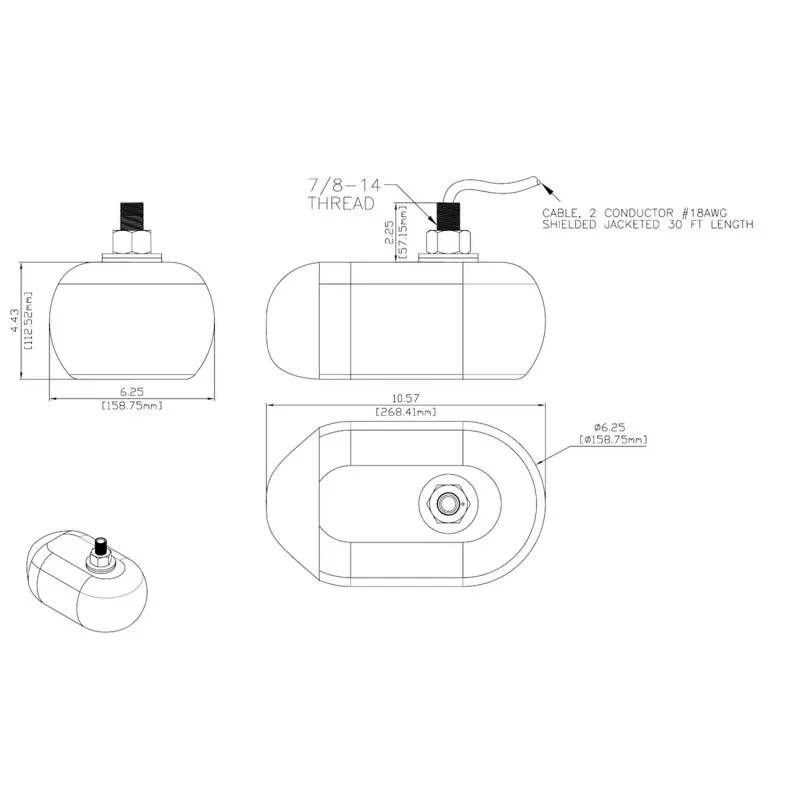

Specifications

  • Housing: cast urethane
  • Standard cable type: C-44 shielded twisted pair (2-18 AWG) and (2-22 AWG) with foil and breaided
      chield overall, black TPR jacket. 10.74mm (0.423") diameter
  • Standard cable length: 10m (30')
  • Weight: 6.4 kg (14 lbs)
  • Installations instructions included


Features:


  • Stainless steel threaded stem easily attaches to
  • portable mounting apparatus
  • Can be mounted on a towed body
  • Internal transformer provides correct
  • impedance match to our Hydrobox HD series of
  • hydrographic survey echo sounders and allows
  • use of longer cables
  • Durable, seamless SEALCASTTM urethane
  • housing for long underwater life

What's In The Box:


  • (1) P04816HD Dual Frequency Transducer 33/210khz
  • (1) Instructions


Brochure/Datasheet


Instruction manual


Note: Prices are not binding , subject to change without prior notice
