Name: Spectra Precision UL633N [UL633N] Universal Laser with (2) HL760 Receivers
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Spectra Precision UL633N [UL633N] Universal Laser with (2) HL760 Receivers

0 reviews • Write a review

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: OAKTON C201 , WD-35645-20 , Chlorine , Colorimeter

Description

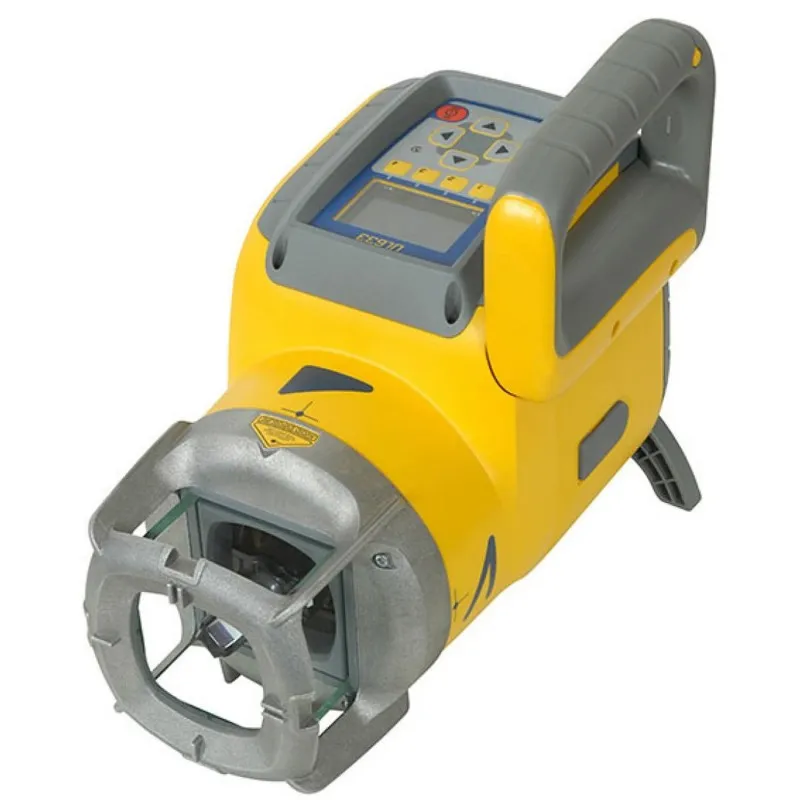

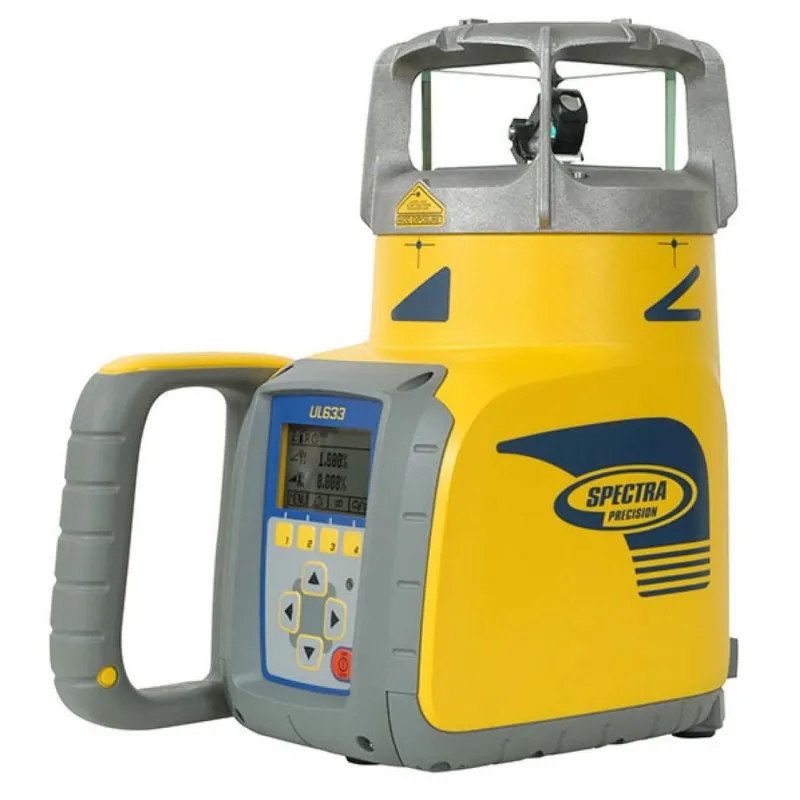

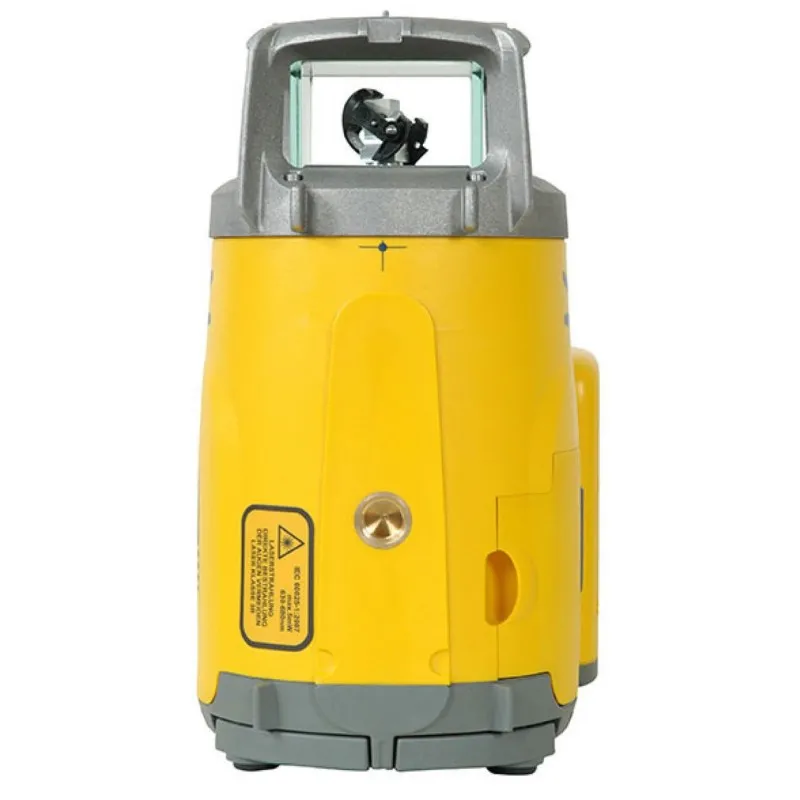

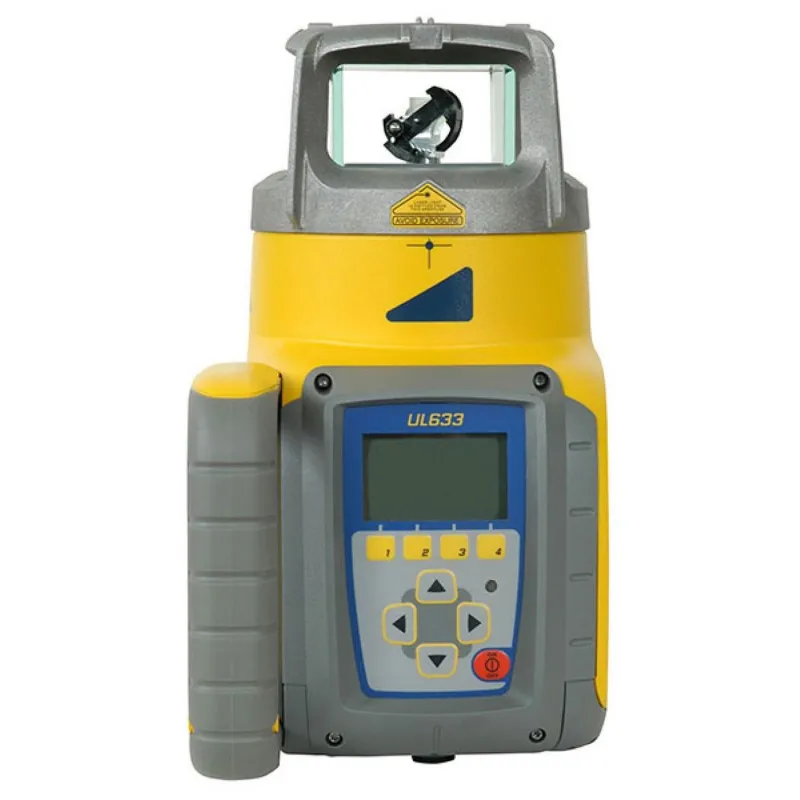

The Spectra UL633N is the first construction grade laser that offers full automatic control of the X, Y, Z axes. With a working range up to 2,600 feet, this rotary laser provides precise automatic axis alignment, PlaneLok, and grade matching capabilities. It also includes a laser receiver, wireless remote display, and monitoring of slope measurements. With a self-leveling accuracy of 1/16th inch and fully automatic to ±25% grade on all X, Y, and Z axes, the versatile UL633N is suitable for both simple and complex grade and concrete work. This Spectra laser facilitates control of the Z axis via automatic detection of the plumb beam, while control of the X and Y axis utilizes a dual radio connection. The UL633 can also be mounted on a 5/8-11 tripod in a vertical or horizontal position.

The Spectra UL633N is also the first laser where the plumb beam can be changed into a rotating fan beam which can be detected by the SF601 Spot Finder. The laser can align the plumb beam automatically to the Spot Finder for pipe laying and trench applications. The combination also offers additional versatility for 90-degree layout applications on concrete pads as well as indoors for drywall. Measuring a grade value through an existing pipe or an open trench can also be done quickly and easily in automatic Spot Match mode. Activating the SpotLok mode ensures the UL633N locks and holds the plumb beam automatically to the Spot Finder at the desired direction or elevation point offering a precise alignment to avoid rework.

Since the UL633N can work with two HL760 laser detectors simultaneously, contractors can measure an unknown grade value automatically between two elevation points in Grade Match mode. This grade laser can also provide precise automatic axes alignments to two desired points without positioning the two HL760 laser detectors 90 degrees perpendicular. This allows construction professionals to easily perform dual axis alignments for applications such as grade work on sports fields, parking lots, tennis courts, and driveways.

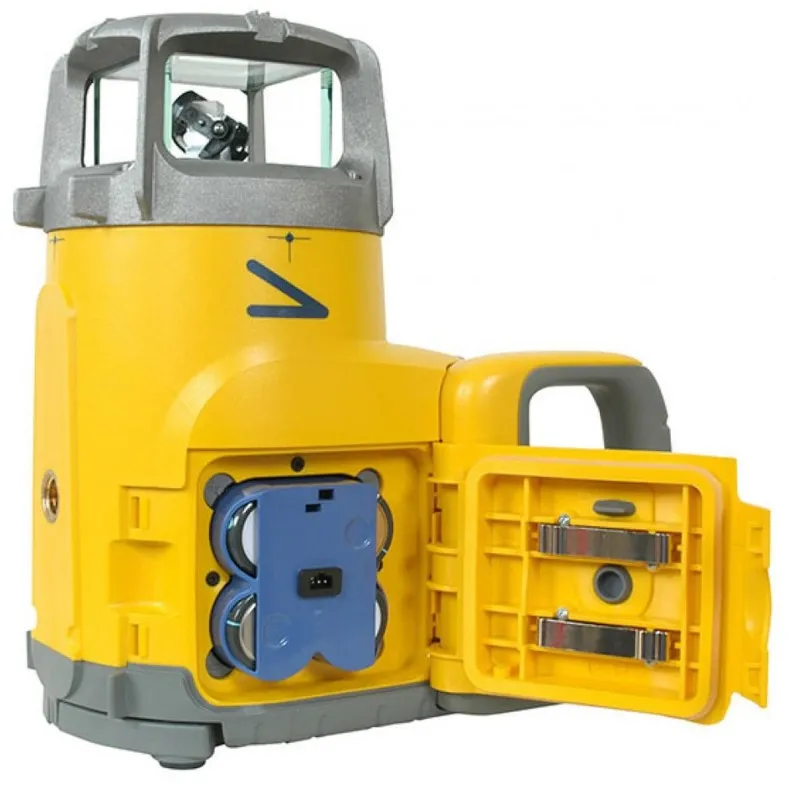

The Spectra UL633N incorporates automatic temperature and grade compensation for high accuracy in any weather or geographical location. Mask mode eliminates interference and allows the use of multiple lasers on site, while electronic leveling vibration filter reduces vibrations typically experienced on tall tripods, in high winds or on high vibration job sites. This laser level also includes a combined radio and infrared RC603 remote control with a built-in backlit, graphic display that allows you to control the laser up to 330 feet away. With an IP67 rating, the UL633N is sealed from moisture and dust and is built to survive a drop of up to three feet high on concrete. This dual grade slope laser works up to 35 hours using rechargeable NiMH batteries and approximately 40 hours using alkaline batteries.

Features:

Up to 2,600-foot operating range
±1/16 inch accuracy at 100 feet
Self-leveling within ±14 degrees
Grade range to ±25% in X, Y, Z axes
Automatic axis alignment
Two HL760 laser receivers
Spot finder for detecting the plumb beam
Spot match to measure unknown slopes in existing pipes
Grade matching measures and displays the existing grade
PlaneLok automatically locks on the laser beam
Horizontal angle measurement
Automatic Spot Align for short pipe laying applications
Scan mode with five preset sizes and variable adjustment
Different rotation modes
Mask mode for using multiple lasers on site
Electronic leveling vibration filter
Automatic temperature compensation
Radio remote control
Ideal for machine control applications
5/8-11 tripod thread
40-hour battery life
Water resistant and dustproof to IP-67
Withstands 3 feet drop onto concrete
Graphic LCD display and keypad

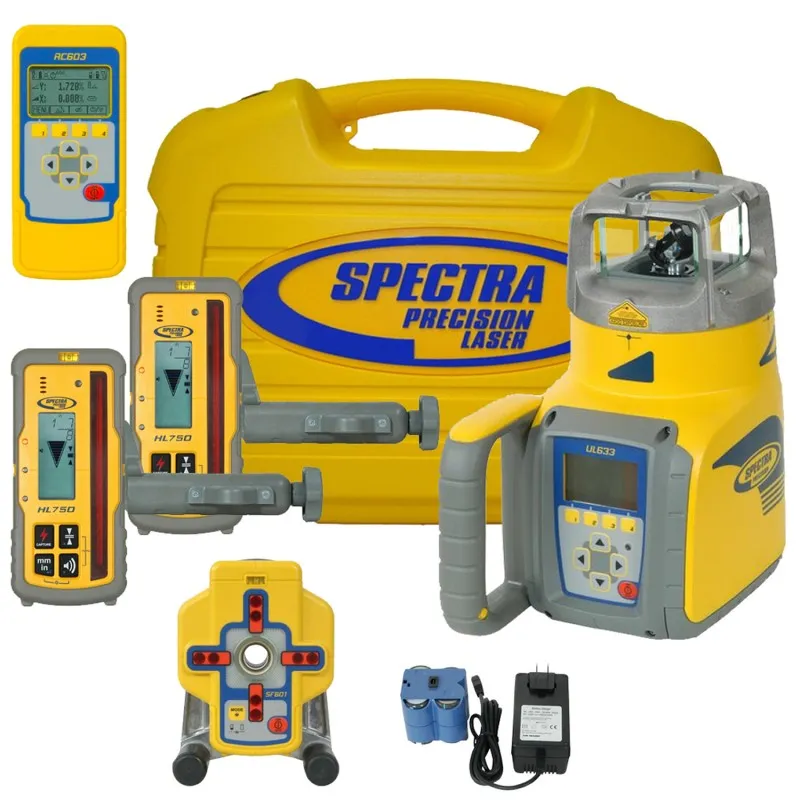

What's In The Box:

(1) UL633N Universal Laser
(1) RC603N Remote Control
(2) each HL760 Laserometer Receivers
(2) each Clamps C70 for Receiver
(1) Spot Finder SF601 with Sun Shield
(1) Spot Finder adapter with Rubber Strap
(1) Worldwide Charger
(1) Rechargeable NiMH Battery Pack - Q104667
(1) Carrying Case
(1) Operating Manual

Brochure/Datasheet

Instruction manual
