Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System

Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
Smart Max Geosystem HY1660 Multi-channel Echo Sounder Sweep System
from
Rp.875,500,0000
Ex Tax: Rp.875,500,0000
  • Brand: Smart Max Geosystems
  • Part Number: HY1660
  • Availability: 4 - 6 WEEKS
  • Last Updated: 12 Apr 2018
Smart Max Geosystems Smart Max Geosystems
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The HY1660 Multi-channel Echosounder Sweep System is a hydrographic echosounder specifically designed for use in harbors,canals,rivers and other shallow bodies of water. Especially for use in those application including large area shallow water surveying, detecting and locating debris or other hazards to navigation in harbors, rivers or canals, monitoring the charted safe depth of navigable waterways, monitoring dredging or underwater construction operations and so on.

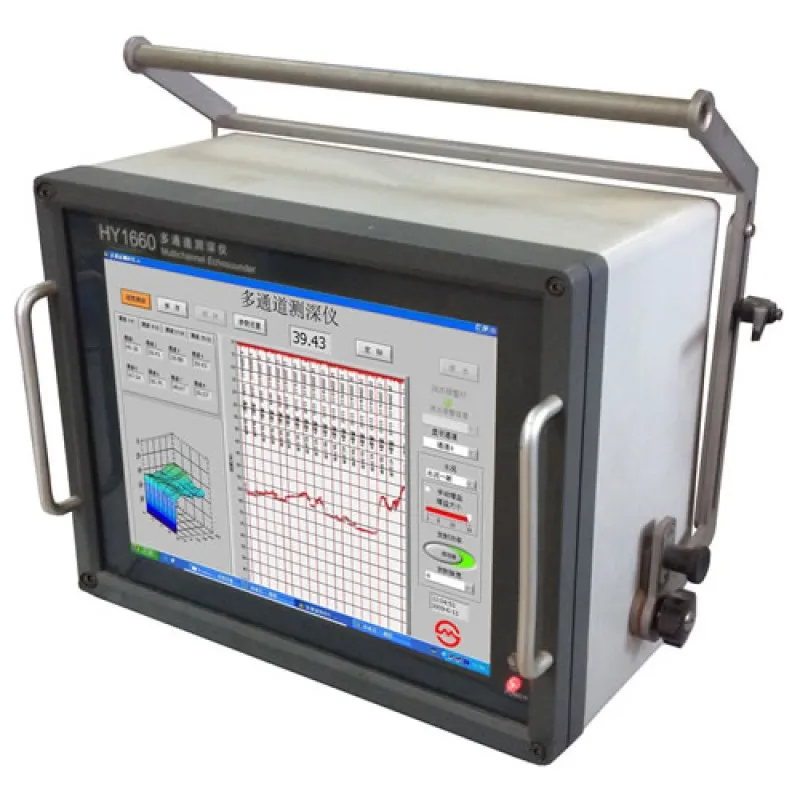

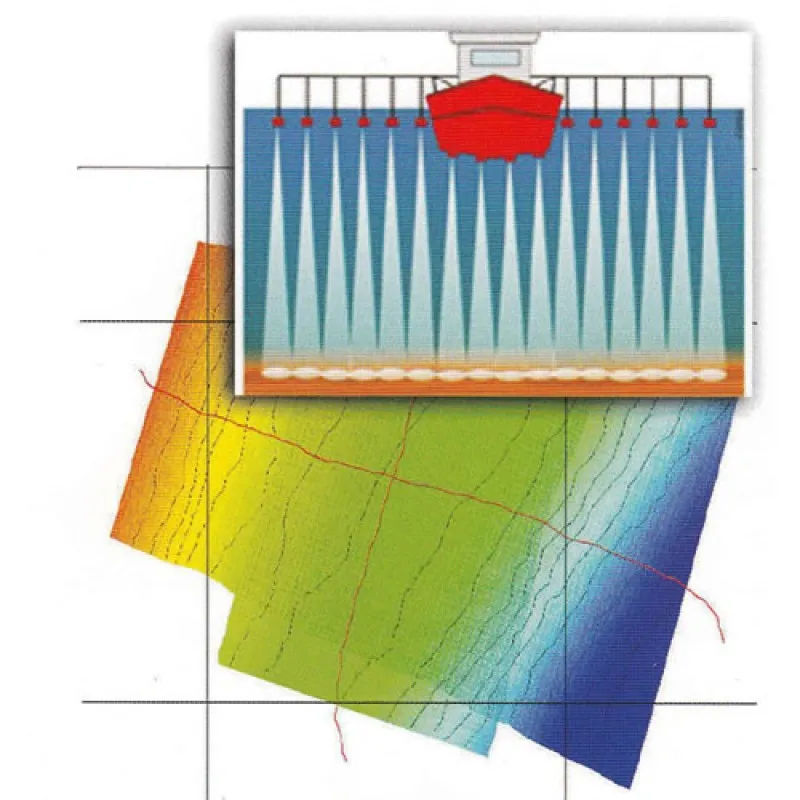

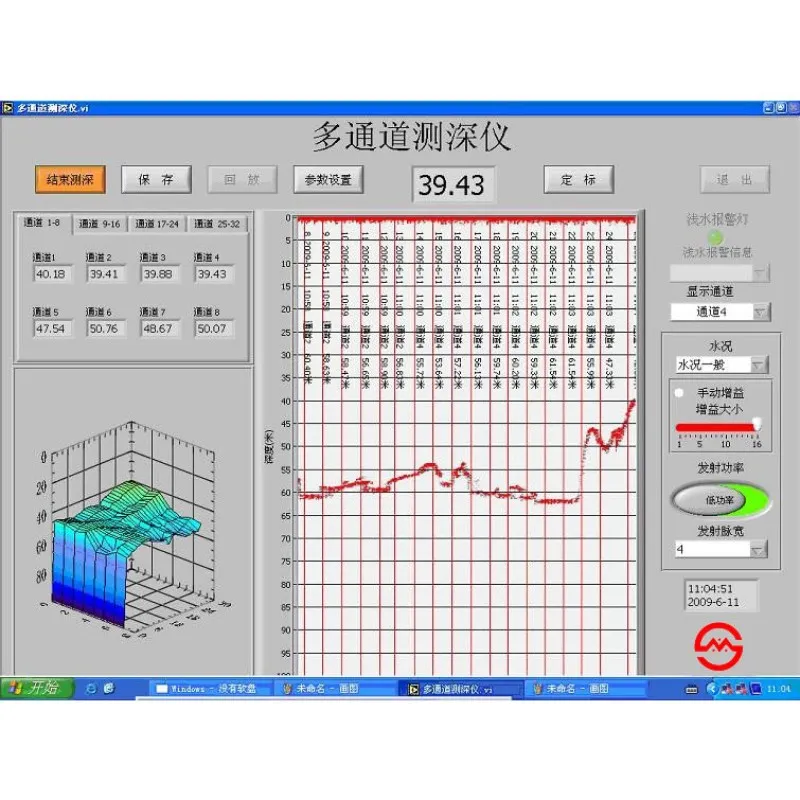

This compact multi-channel echosounder, based on Windows XP software, employs not only very reliable embedded main board and redundant RS232/422/USB ports, but also those advanced technology involving with channel control, image display and bottom detection. A 15inch large scale LCD display can simultaneously monitor both 2-32 channels of depth and bottom profile. All data is shown in 3-D and in real time using a color-coded waterfall display which graphically represents areas of common depth using different colors. While sweeping depth data can be simultaneously exported through a RS232/422 port to third part survey software running on the same computer.

Features:

  • Specially suited for use in shallow water below 50 meter
  • Channel combination available from 2 to 32 simultaneously, based on Windows XP and 15 inch LCD display
  • Equipped with redundant RS232/RS422/USB ports to output/input raw data
  • Water depth from Multi-channels can be simultaneously stored in the computer's hard driver permanently
  • Event marker operated from menu or by manual and can be searched automatically
  • Raw data and a time-related 3-D echogram from any channels can be displayed, replayed on screen
  • Any motion sensors can be interfaced to have a dynamic compensation.

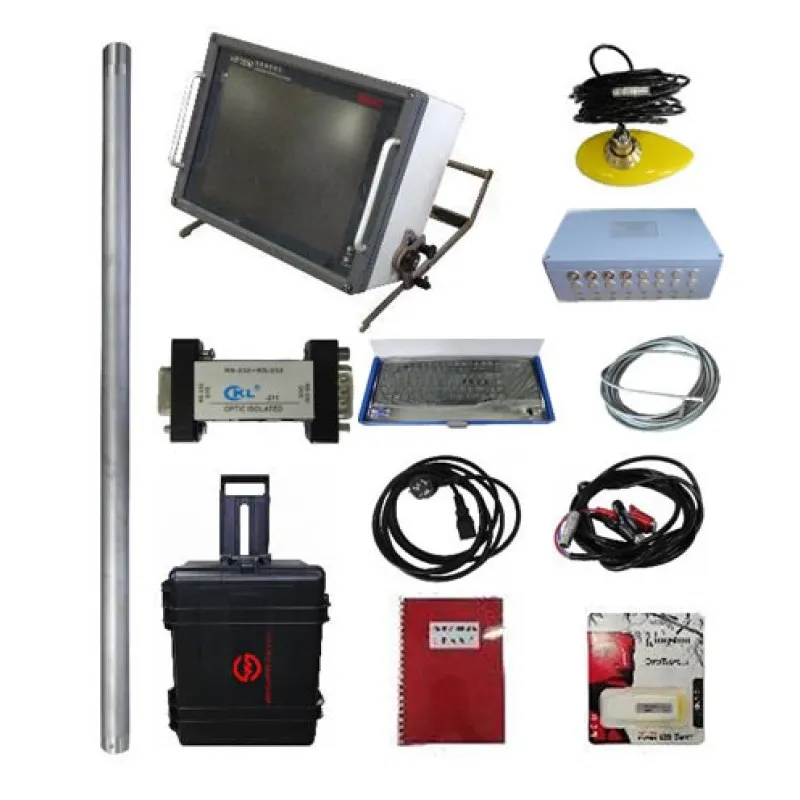

What's In The Box:

  • (1) HY1660 Mainframe

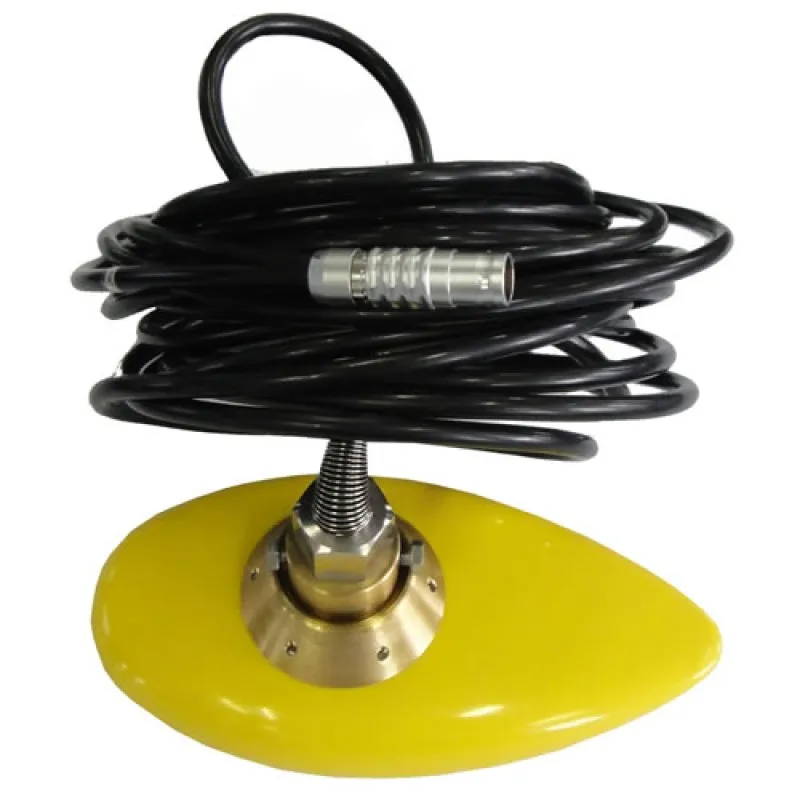

  • (1) Transducer

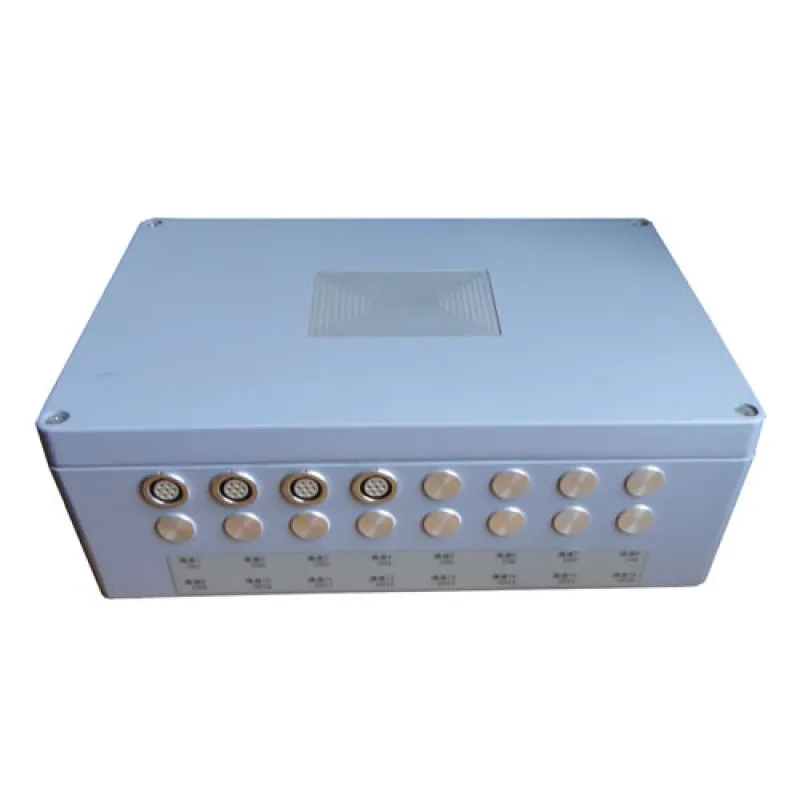

  • (1) Transducer control box
  • (1)Transducer control box cable
  • (1) Keyboard
  • (1) Isolator
  • (1) AC power cable
  • (1) DC power cable
  • (1) USB System Disk
  • (3) Pole
  • (1) Manual
  • (1) Plastic case

Brochure/Datasheet

Instruction manual
