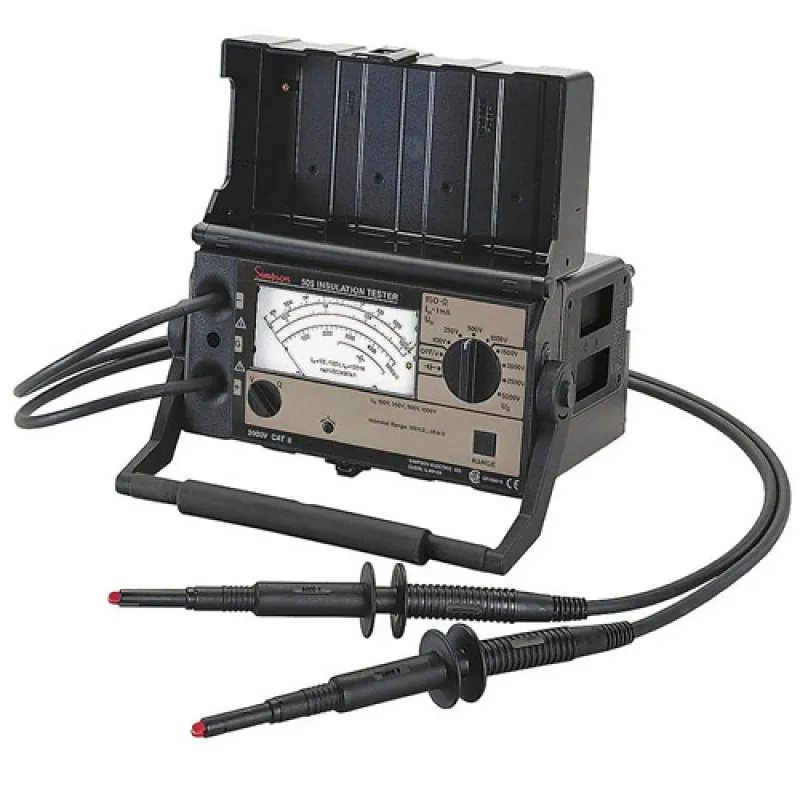

Simpson 505 [12505] High Voltage Insulation Tester

Simpson 505 [12505] High Voltage Insulation Tester
Simpson 505 [12505] High Voltage Insulation Tester
from
Rp.50,950,0000
Ex Tax: Rp.50,950,0000
  • Brand: Simpson Electric
  • Part Number: 505
  • Availability: 3 - 4 WEEKS
  • Last Updated: 23 Jul 2018
Simpson Electric Simpson Electric
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Simpson's Model 505 High Voltage Insulation Tester is capable of measuring insulation resistances from 10 kilohms to 1 teraohm with eight selectable test voltages up to 5000 V. As a safety feature, the insulation tester acts as an AC/DC voltmeter to measure the absence of voltage in networks up to 2000 V.

For added safety, the cables are permanently attached, preventing possible injury that could occur by the accidental removal of the cables. The Model 505 features automatic discharging capability of capacitive units under test and a lock-in test switch, for hands free operation. An optional guard terminal is available to minimize surface leakage errors. There are two LEDs to indicate the selected measuring range, and one LED signifying valid measurements and battery charge status. Each tester comes in a padded carrying case with permanently connected cables and test probes, 2 alligator clips and a plug-in battery module with batteries.

Features:

  • Eight Test Voltages: 100, 250, 500, 1000, 1500, 2000, 2500, and 5000 VDC
  • High Sensitivity, Direct Resistance Reading to 1T (1,000,000 M ), no Multipliers
  • Voltage Measurement to 2000 V AC/DC
  • Battery Powered
  • Built in Battery Test and Battery Charge Indicator
  • Optional Guard Cable Minimizes Surface Leakage Errors
  • Rugged Tester Design for Industrial Applications with Padded Carrying Case for Extra Protection

What's In The Box:

  • (1) 505 Insulation Tester with permanently connected cables and test probes
  • (2) 45066 (2) Alligator Clips
  • (1) Plug-in Battery Module with Batteries
  • (1) 45065 Guard cable with alligator clip to minimize surface leakage errors
  • (1) Padded Carrying Case
  • (1) Certificate of calibration
