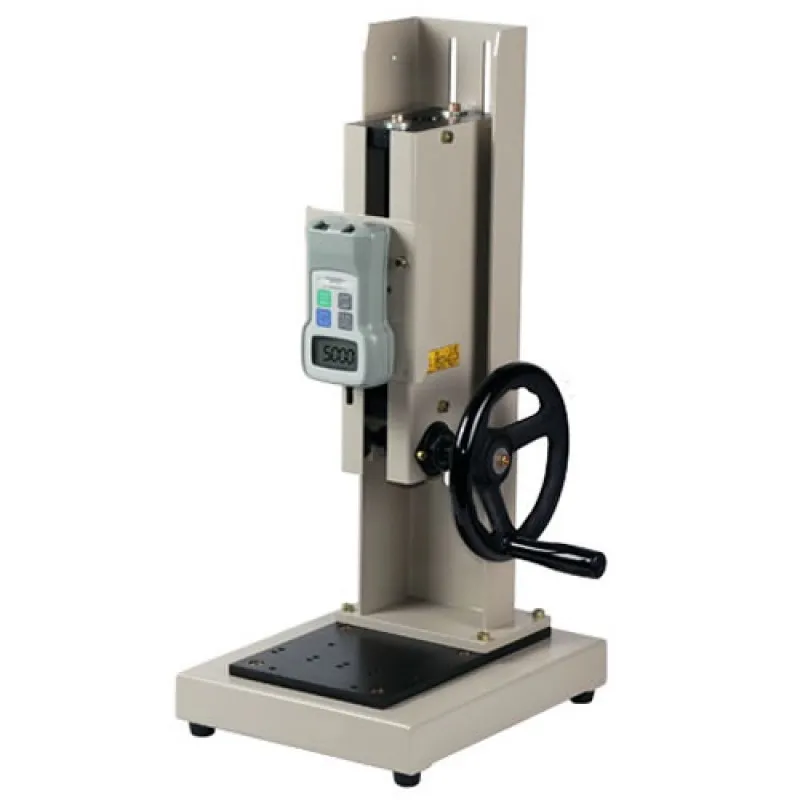

Shimpo FTS-X Force Test System

Shimpo FTS-X Force Test System
Shimpo FTS-X Force Test System
0 reviews • Write a review
from
Rp.40,500,0800
  • Brand: Shimpo Instruments
  • Part Number: FTS-X
  • Availability: 10 - 14 DAYS WORK
  • Last Updated: 24 Jun 2017
Shimpo Instruments Shimpo Instruments
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

The FTS-X is a complete Force Test System designed for precision measurement of push / pull force on a wide variety of applications. FTS-X offers USB data output and along with a complete software package (Windows XP Compatible, Not Compatible with Windows 7) to record and analyze your test data.

Features:

  • 1000 Hz Sample Rate, captures true peak values even those occurring over very short time intervals
  • Selectable Auto-Shut Off, prolongs battery life, while allowing constant use when powered via supplied AC-adapter
  • Accuracy of ±0.2%, providing superb repeatability
  • Small Size, Ergonomic design provides comfort for hand held testing
  • USB, RS-232 & Analog Outputs-- all included!, 3 different outputs for data transfer provides maximum flexibility
  • Automatic Calculation & Display of Statistics, provides immediate results and analysis of your force testing
  • 200% Overload Capacity, minimizes the likelihood of costly repairs
  • 3 Memory Modes, optimize data storage for any application transferring data to PC/Laptop when convenient
  • Rugged Die Cast Aluminum Housing & Rugged Construction, provides exceptional durability even in the toughest field applications
  • Built In User-Set Hi-Lo Alarm Limits, perform quick and easy 'Go-No Go' testing with visual LCD indicator when "out of tolerance"
  • Reversible Display, optimized for use as both a handheld gauge or mount upside down on a test stand
  • Versatile bottom mounting plate accepts standard and custom-made attachments
  • Constant Linear Motion
  • consists of the FGV-XY Digital Force Gauge and FGS-100H Manual Hand-Wheel Test Stand
  • Includes calibration certificate
  • Sturdy, all steel construction

What's In The Box:

  • (1) AC adapter/charger
  • (1) Carrying case
  • (1) Hook
  • (1) Chisel
  • (1) Flat head
  • (1) Notched head
  • (1) Hanger
  • (1) Cone head
  • (1) Thread Adapter
  • (1) Extension rod
  • (1) USB cable

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice

  Shimpo FTS-X Series Models 0 Item Selected
Model
Product Name
Price
Available
Quantity
[FTS-5X] 5 lb/ 20 N/ 2 kg Capacity
FTS-5X
Rp.40,500,0800
1 Availability
[FTS-10X] 10 lb/ 50 N/ 5 kg Capacity
FTS-10X
Rp.40,500,0800
1 Availability
[FTS-20X] 20 lb/ 100 N/ 10 kg Capacity
FTS-20X
Rp.40,500,0800
1 Availability
[FTS-50X] 50 lb/ 200 N/ 20 kg Capacity
FTS-50X
Rp.40,500,0800
1 Availability
[FTS-100X] 100 lb/ 500 N/ 50 kg Capacity
FTS-100X
Rp.40,500,0800
1 Availability
