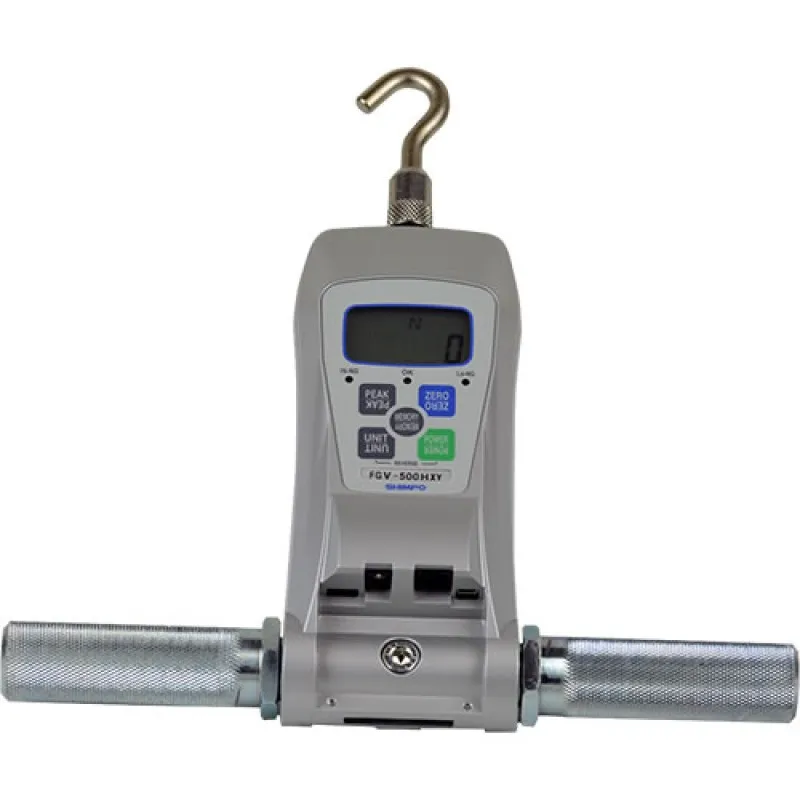

Shimpo FGV-HXY High Capacity Digital Force Gauges with Reversible Display

Shimpo FGV-HXY High Capacity Digital Force Gauges with Reversible Display
Shimpo FGV-HXY High Capacity Digital Force Gauges with Reversible Display
from
Rp.26,900,0000
Ex Tax: Rp.26,900,0000
  • Brand: Shimpo Instruments
  • Part Number: FGV-HXY
  • Availability: 10 - 14 DAYS WORK
  • Last Updated: 24 Jun 2017
Shimpo Instruments Shimpo Instruments
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

2 Ranges 500 lbs or 1000 lbs
Measures Push / Pull Force
(FGPX-H)

The Series FGV-HXY Digital Force Gauges offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Models are available in 500 lb. or 1000 lb. ranges providing necessary performance for high capacity testing.

The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable these units to excel in both compression and tension applications in any direction. FGV models possess onboard statistical calculations provide fast access to maximum, minimum, average and standard deviation data. Models includes software and RS-232 cable allowing further data analysis on a PC. The FGV-HXY’s 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C, USB and analog outputs provide maximum communication flexibility.

Features:

  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • On board statistics provides immediate results and analysis of test data
  • Quick retrieval of peak measurement with a single push button in test stand
  • Operates using rechargeable battery or AC line voltage
  • User selection of engineering units (Lbs, Kf or Newtons) and User-set display update rate allows optimal setting for each type of test
  • Include built-in datalogger with 3 outputs: USB, RS-232 & Analog Output
  • 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Provide Built-In Hi-Lo Comparator function provides user with easy Go-No Go Testing
  • High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor
  • CE & RoHs Certified
  • Measure and record compression and tension tests. Permits true "push-pull" testing
  • Free Data logging/graphing software provided, sample rate up to 100 readings/sec
  • Overload Protection 150% of full scale

What's In The Box:

  • (1) Protective carrying case
  • (1) AC adapter/charger
  • (1) Carrying case
  • (2) Handles
  • (1) Metric thread to inch adapter
  • (1) Flat head
  • (1) Hook
  • (1) Chisel
  • (1) Notched head
  • (1) Cone head
  • (1) Extension rod
  • (1) USB cable
  • (1) RS-232 cable included with FGV-HXY series only.

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice

  Shimpo FGV-HXY Series Models 0 Item Selected
Model
Product Name
Price
Available
Quantity
[FGV-500HXY] 500 lb / 250 kg / 25000 N Capacity
FGV-500HXY
Rp.26,900,0000
1 Availability
[FGV-1000HXY] 1000 lb / 453.6 kg / 4448 N Capacity
FGV-1000HXY
Rp.41,500,0000
1 Availability
