Shimpo FG-7000T [FG-7000T] Digital Torque Gauge

Shimpo FG-7000T [FG-7000T] Digital Torque Gauge
Shimpo FG-7000T [FG-7000T] Digital Torque Gauge
from
Rp.31,700,0000
Ex Tax: Rp.31,700,0000
  • Brand: Shimpo Instruments
  • Part Number: FG-7000T
  • Availability: 4 - 6 WEEKS
  • Last Updated: 25 Aug 2019
Shimpo Instruments Shimpo Instruments
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

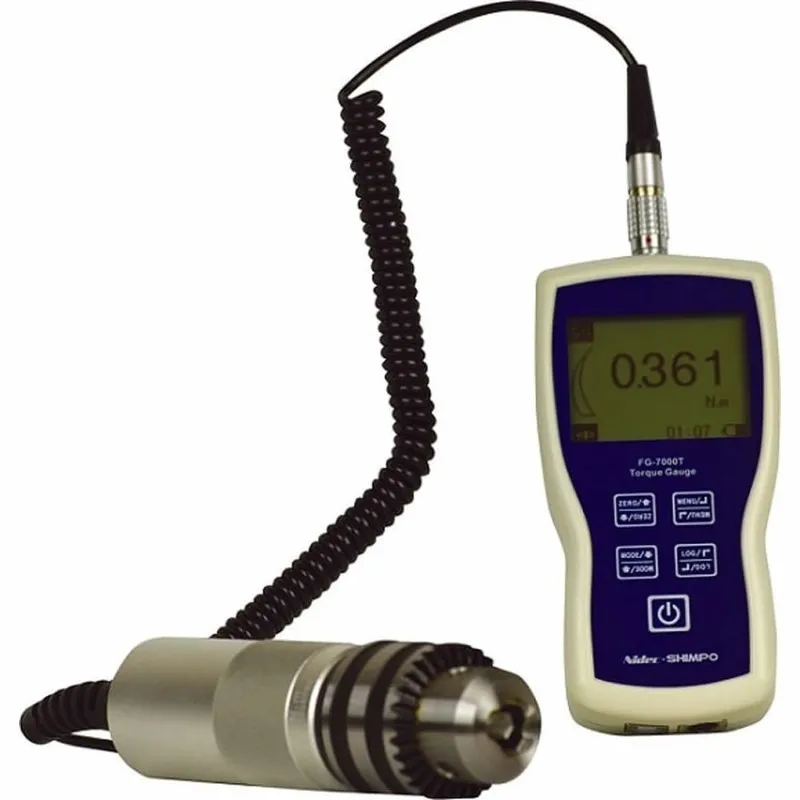

The FG-7000T digital torque gauge measures bidirectional torque via a remote sensor with an integrated chuck. The tester can be used for a wide range of applications including fastener assembly, bearing friction testing and much more.

Four selectable measuring modes include: Track mode for live readings, Peak mode for displaying the maximum reading, First Peak where only the initial peak is recorded once a decrease is sensed and Preset which initiates user-programmed tolerance alarms for go/no go testing. The display has two selectable operations, numerical view or graphical view with torque direction bar graph. In graphical view when alarm tolerances are set, the process is plotted in relation to the upper and lower limit graph lines. Combined with the go/no go icons, a simple pass/fail determination is recognized.

The FG-7000T features memory for peak readings or continuous data logging. Data can be viewed on the screen or transferred the included Windows software. 1,000 point memory with definable groups allows for multiple tests to be recorded and easily separated upon loading. In addition, the comparator output can be set up for integration of the instrument into a quality system for repetitive testing such as on a production line.

The FG-7000T’s rugged aluminum housing is designed to fit perfectly in the operator’s hand for portable testing. The large back-lit, 180° auto-reversible display, CW/CCW directional bar graph, combined with the dual labeled key pad allows for usage of the gauge in various positions while still being able to easily view and operate. These features make the FG-7000T the ideal torque instrument for applications such as closing or opening analysis of containers, valves and door hardware, failure or destructive torque testing, or almost any torque testing requirement involving incoming quality inspection, finished goods testing to R&D.

Features:

  • Display operates in numerical or graph modes, both include a directional bar graph
  • Graph mode combined with set point tolerances provides instant recognition of process relation to upper
      and lower limits
  • Four Modes of Operation: Peak, First Peak, Preset and Track Mode
  • Memory with group categorization to easily separate your tests for review and later download
  • Free software for viewing, graphing and analyzing data on PC
  • Large, Backlit, Auto-Reversible display with various icons of test status aids user during testing
  • Programmable High/Low tolerances combined with comparator NPN/PNP output allow usage in quality
      control production lines
  • Supplied with factory calibration certificate

What's In The Box:

  • (1) Torque tester with chuck
  • (1) AC Adapter/Charger
  • (1) USB cable
  • (1) Calibration cert in
  • (1) Carrying case.

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice

  MODEL [FG-7000T] 0 Item Selected
Model
Product Name
Price
Available
Quantity
[FG-7000T-1] Digital Torque Tester 1 Nm, 8.9 lb-in Capacity
FG-7000T-1
Rp.31,700,0000
1 Availability
[FG-7000T-2] Digital Torque Tester 5 Nm, 44 lb-in Capacity
FG-7000T-2
Rp.31,700,0000
1 Availability
[FG-7000T-3] Digital Torque Tester 10 Nm, 88 lb-in Capacity
FG-7000T-3
Rp.33,800,0000
1 Availability
