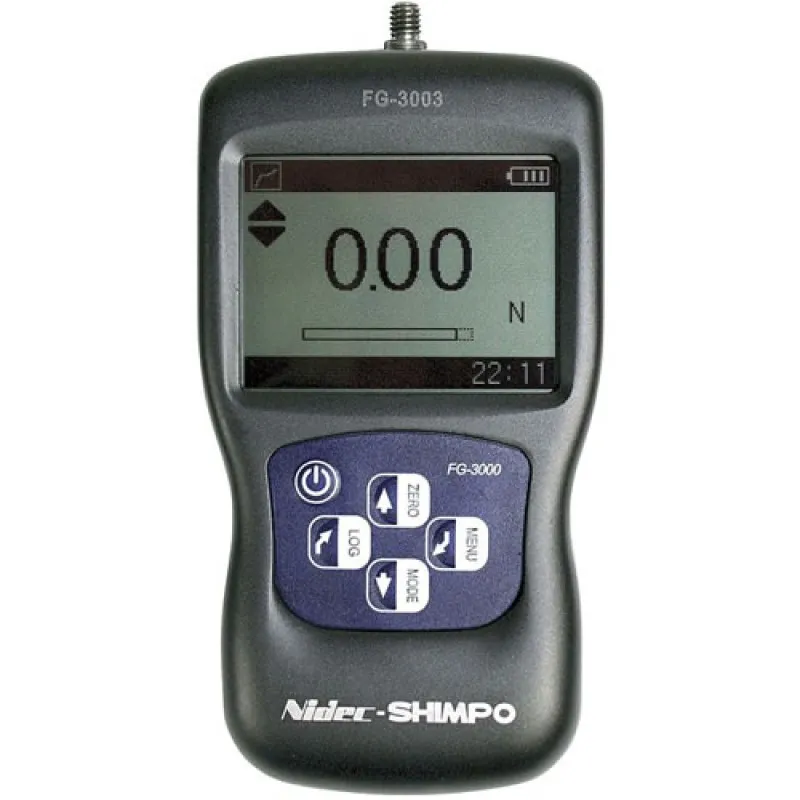

Shimpo FG-3000 Series [FG-3003] Digital Force Gauge 2.2 Lb / 1 Kg / 10 N / 35 oz

Shimpo FG-3000 Series [FG-3003] Digital Force Gauge 2.2 Lb / 1 Kg / 10 N / 35 oz
Shimpo FG-3000 Series [FG-3003] Digital Force Gauge 2.2 Lb / 1 Kg / 10 N / 35 oz
from
Rp.12,500,0000
Ex Tax: Rp.12,500,0000
  • Brand: Shimpo Instruments
  • Part Number: FG-3003
  • Availability: 4 - 6 WEEKS
  • Last Updated: 09 May 2018
Shimpo Instruments Shimpo Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The new FG-3000 Series digital force gauges are the choice for simple, economical tension and compression testing. Combining a compact housing, yet maintaining a large back- lit LCD screen, these units are designed to fit snug in the hand for ease of use. The multi-language FG-3000’s provide menu programming for intuitive set-up of the instrument to your desired requirements. Three modes of operation are available: Track mode displays live readings, Peak mode records the maximum values sensed during testing, and Pre-set mode, which activates user defined high and low limit set points. The programmable limits provide a fast visual and audible alert if a test passes or fails. Additionally, a comparator output enables integration of the instrument into your quality system for repetitive testing, for example production lines.

The display graphics facilitate user comprehension and operation. An analog bar graph provides perspective of current reading in comparison to the full scale range. Pass/Fail symbols provide an instant response of the testing outcome while a storage symbol acknowledges when a reading is logged. A menu-selectable display orientation streamlines switching from push to pull testing for portable or test stand applications.

The FG-3000 series can log up to 500 readings with the push of a button for instant data retrieval. The data can be viewed on screen, sent to a printer, or uploaded on the free software program for graphing and statistical analysis.

Features:

  • 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Preset Limits
  • 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering unit’s selection provides flexible user options
  • Field Calibration capability eliminates the need to send to a lab for calibration
  • Calibration Certificate included along with popular adapter attachments
  • Free Data logging/graphing software provided, sample rate up to 60 readings/sec

What's In The Box:

  • (1) AC Adaptor/Charger
  • (1) USB cable
  • (1) Calibration cert
  • (1) Hook
  • (1) Flat tip
  • (1) Conical tip
  • (1) Chisel tip
  • (1) Notched tip
  • (1) Extension shaft
  • (1) foam fitted plastic carrying case

Brochure/Datasheet

Instruction manual
