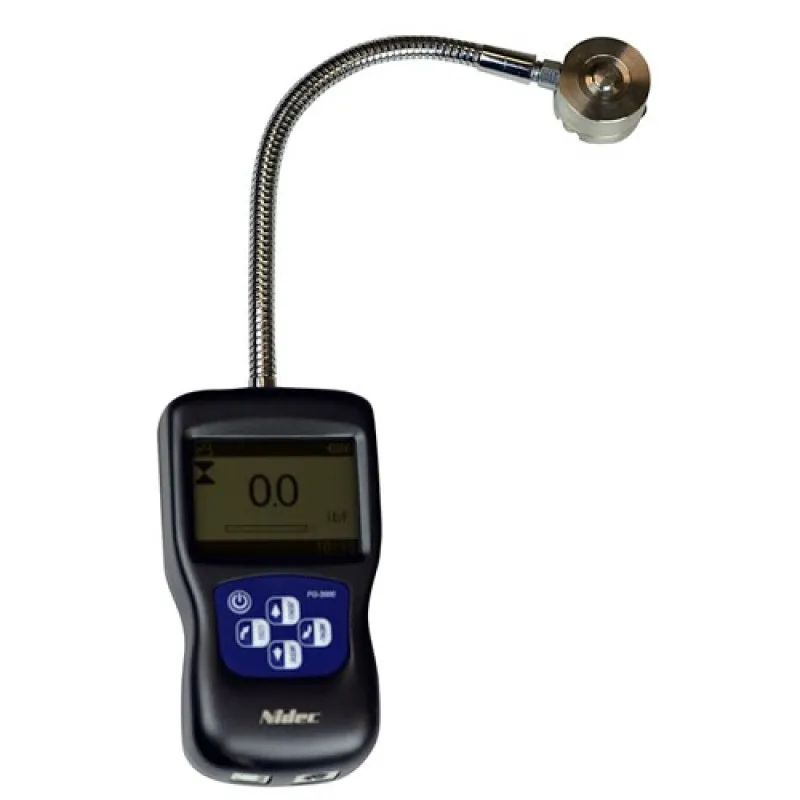

Shimpo FG-3000R Series [FG-3000R-50] Digital Force Gauge with Integral Load Cell Sensor 50 kN / 5000 kgf / 11 klbf

Shimpo FG-3000R Series [FG-3000R-50] Digital Force Gauge with Integral Load Cell Sensor 50 kN / 5000 kgf / 11 klbf
Shimpo FG-3000R Series [FG-3000R-50] Digital Force Gauge with Integral Load Cell Sensor 50 kN / 5000 kgf / 11 klbf
from
Rp.30,250,0000
Ex Tax: Rp.30,250,0000
  • Brand: Shimpo Instruments
  • Part Number: FG-3000R-50
  • Availability: 4 - 6 WEEKS
  • Last Updated: 09 May 2018
Shimpo Instruments Shimpo Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The FG-3000R Series digital force gauges are the choice for simple, cost-effective compression testing.
Combining one of the most compact housings, yet maintaining a large back-lit LCD, these units were designed to fit perfectly in the hand for ease of use. The integral button style load-cell attached via the flexible, metal braided cable enables readings to be taken in machinery or fixtures where other force gauge adapters are unable to reach or fit. The multi-language FG-3000’s provide menu programming for intuitive set-up of the instrument to your desired requirements. Three modes of operation are selectable: Track mode displays live readings, Peak mode records the maximum reading sensed during the test, and Pre-set mode which activates user defined high and low limit set points. The programmable limits provide a quick visual and audible indication if a test passes or fails. In addition, a comparator output enables integration of the instrument into your quality system for repetitive testing such as on production lines.

The display graphics facilitate user comprehension and operation. An analog bar graph provides perspective of current reading in comparison to the full scale range. Pass/Fail icons provide an instant response of the testing outcome while a storage symbol acknowledges when a reading is logged. A menu-selectable display orientation streamlines switching from push to pull testing for portable or test stand applications.

Features:

  • Built-in Memory for 500 data points with USB Output. Includes Free Data Transfer Software
  • Compact load-cell sensor combined with 8.7” (220 mm) length flexible, metal-braided cable enables readings to be taken in difficult locations
  • 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Preset Limits
  • 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering unit’s selection provides flexible user comfort
  • Field Calibration capability eliminates need to send to lab
  • Free Data logging/graphing software available for free download on website
  • Includes Factory Calibration Certificate

What's In The Box:

  • (1)  A/C adapter/charger
  • (1) USB cable
  • (1) Calibration cert
  • (1) Instruction manual
  • (1) foam fitted plastic carrying case

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
