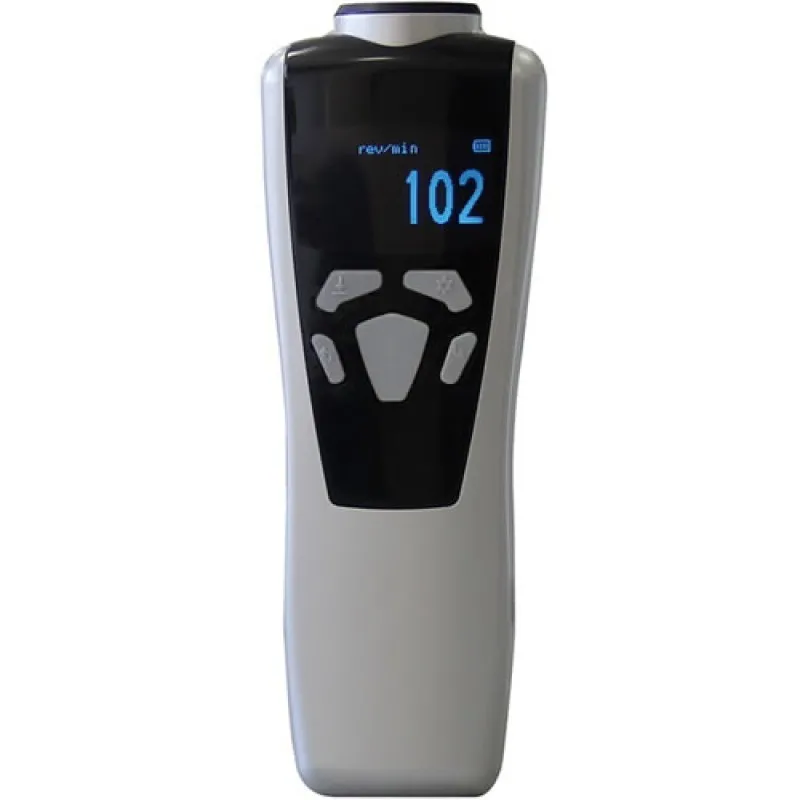

Shimpo DT-2100 [DT-2100] Combination Contact / Non-Contact Tachometer with USB Output

Shimpo DT-2100 [DT-2100] Combination Contact / Non-Contact Tachometer with USB Output
Shimpo DT-2100 [DT-2100] Combination Contact / Non-Contact Tachometer with USB Output
from
Rp.13,500,0000
Ex Tax: Rp.13,500,0000
  • Brand: Shimpo Instruments
  • Part Number: DT-2100
  • Availability: 3 - 4 WEEKS
  • Last Updated: 04 Jun 2019
Shimpo Instruments Shimpo Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The all new Shimpo DT-2100 is a highly advanced combination contact / non-contact hand-held tachometer. The DT-2100 offers data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a blue backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode. Additional display modes unique to the DT-2100 is the "Needle Sweep" and Bar Graph" offers the user a choice of how to view the data. The display can also be inverted to optimize the viewing angle.

In non-contact mode the tachometer measures RPM up to 99,999 RPM at distances up to 13 feet or 500 cm. The DT-2100 can also measure contact RPM, surface speed, or length using the supplied screw-on adapter.

Data logging can be set for single point or continuous logging. Single data points as well as statistics (Max, Min, Average) can be stored in the built-in memory and recalled to the display. Often users need to adjust machinery during testing, with the DT-2100 you can mount it on a tripod, select continuous logging and adjust machinery as necessary. After the test, you can easily review the data on the DT-2100's display or download to a computer using the optional PC Software.

The DT-2100 is supplied as a complete kit with 2 cone tip adapters, funnel tip adapter, shaft extension, 6 inch circumference surface speed wheel, reflective tape, 2 AA batteries ... all supplied in a foam-fitted carrying case. An NIST-Traceable Calibration Certification is optionally available.

Features:

  • Data Logging with Continous, Single Unit or Statistics modes
  • View data and statistics on tachometer display or with optional Windows software (Windows 7-10 Compatible)
  • Built-in Memory with USB Data Output
  • Powerful laser for non-contact measurement 2” to 13.1’ (5 to 400 cm)
  • Non-Contact length measuring mode (requires reflective tape or edge of roller)
  • Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc...
  • On-screen hi-lo limits for pass/fail analysis
  • Auto-detection of contact adapter
  • Reversible Display
  • 1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod

What's In The Box:

  • (2) Cone Adapters
  • (1) Funnel Adapter
  • (1) 3 1/2" Extension Shaft
  • (1) Surface Speed Wheel (6" circumference)
  • (2) AA Batteries
  • (1) Contact Adapter
  • (1) Carrying Case

Brochure/Datasheet

Instruction manual
