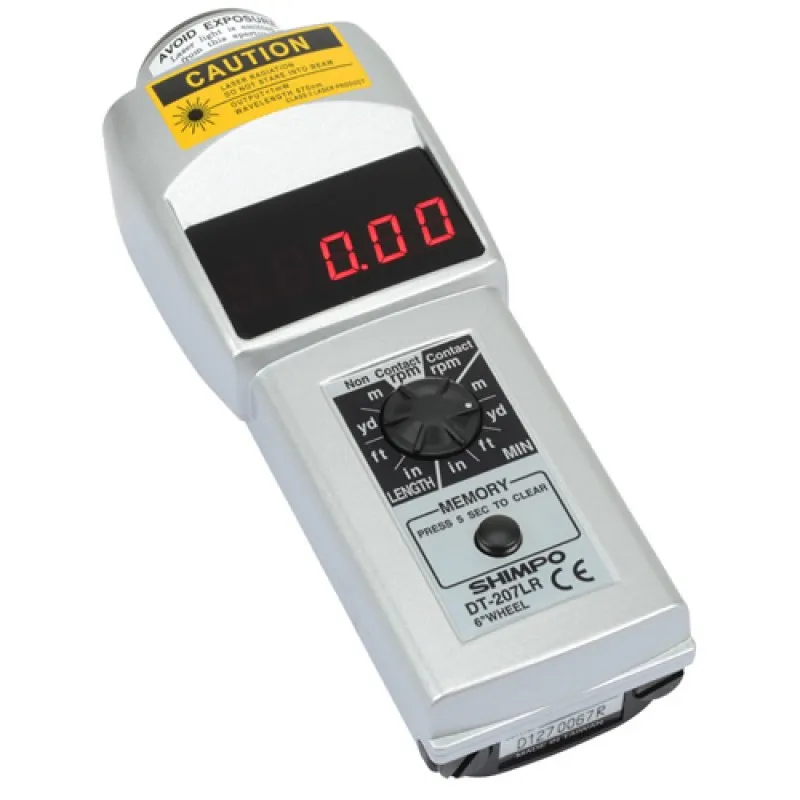

Shimpo DT200LR [DT-207LR] Contact / Non-Contact Tachometer with LED Display and 6" Circumference Wheel

Shimpo DT200LR [DT-207LR] Contact / Non-Contact Tachometer with LED Display and 6" Circumference Wheel
Shimpo DT200LR [DT-207LR] Contact / Non-Contact Tachometer with LED Display and 6" Circumference Wheel
Shimpo DT200LR [DT-207LR] Contact / Non-Contact Tachometer with LED Display and 6" Circumference Wheel
Shimpo DT200LR [DT-207LR] Contact / Non-Contact Tachometer with LED Display and 6" Circumference Wheel
Shimpo DT200LR [DT-207LR] Contact / Non-Contact Tachometer with LED Display and 6" Circumference Wheel
from
Rp.9,500,0000
Ex Tax: Rp.9,500,0000
  • Brand: Shimpo Instruments
  • Part Number: DT-207LR
  • Availability: 3 - 4 WEEKS
  • Last Updated: 04 Jun 2019
Shimpo Instruments Shimpo Instruments
Add to Cart
Add to Wish List Compare this Product
This product has a minimum quantity of 2
Tags: Additel , Digital , Pressure , Calibrators

The Shimpo DT-207LR portable contact/noncontact tachometer has a six-inch wheel, measures rotational speed, linear speed, and total length, and has a laser beam for noncontact measurements. This portable contact/noncontact tachometer has a six-inch wheel and is used for measuring the speed of motors, conveyor belts, and other moving and rotational systems. It measures rotational speed, linear speed, and total length for flexibility of use. Its optical sensor is a laser beam that works at a distance from 1 inch to 20 feet for user safety. The five-digit LED screen presents test results and the unit of measurement. It stores up to 13 readings, including the maximum, minimum, and last test result values for ease of data recall. A die-cast aluminum body provides durability in harsh environments, and the device can be tripod-mounted and locked to take continuous measurements. The tachometer conforms to NIST standards for compliance with regulations, and the CE mark indicates compliance with applicable EU directives. It comes with a six-inch wheel, a contact adapter, two cone adapters, a funnel adapter, a 3.5-inch extension shaft, a carrying case, reflective tape, and an NIST certificate. This tachometer is suitable for measuring rotational speed and other measurements in mechanical or industrial engineering environments.

Features:

  • Outstanding Accuracy allows usage in the strictest applications
  • Sophisticated laser beam detection to 20 feet provides operator safety during testing
  • Exceptionally rugged die-cast aluminum housing enables usage in the harshest conditions
  • Wide field selection of units in both instantaneous rate as well as totalized length satisfies a multitude of user
      requirements
  • Large 5 digit display aids user visibility
  • 10 measurement memory capacity allows quick retrieval of stored data plus additional last, max. & min. values
  • Long-life battery (25-40 hrs. continuous use) eliminates concerns of being down during testing
  • Compact, Ergonomic design allows easy ergonomic grip
  • Rear Threaded Inserts provides option to mount to stand or other device
  • Available display options of either LCD or vibrant, bright red LED
  • CE Mark combined with free NIST certificate provides a guarantee of quality performance

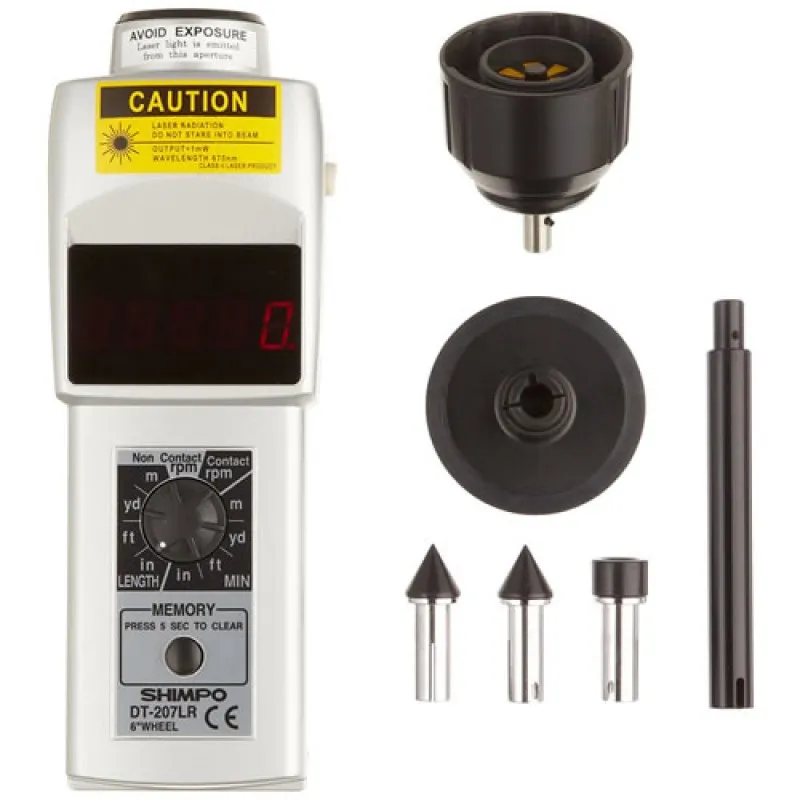

What's In The Box:

  • (1) Reflective tape
  • (2) Cone adapters
  • (1) Funnel adapter
  • (1) Master wheel (6" cir.)
  • (1) 3.5" extension shaft
  • (1) 200LR adapter
  • (1) Carrying case
  • (2) AA 1.5V batteries
  • (1) NIST certificate
  • (1) 1 Year Warranty
  • (1) User Manual

Brochure/Datasheet

Instruction manual
