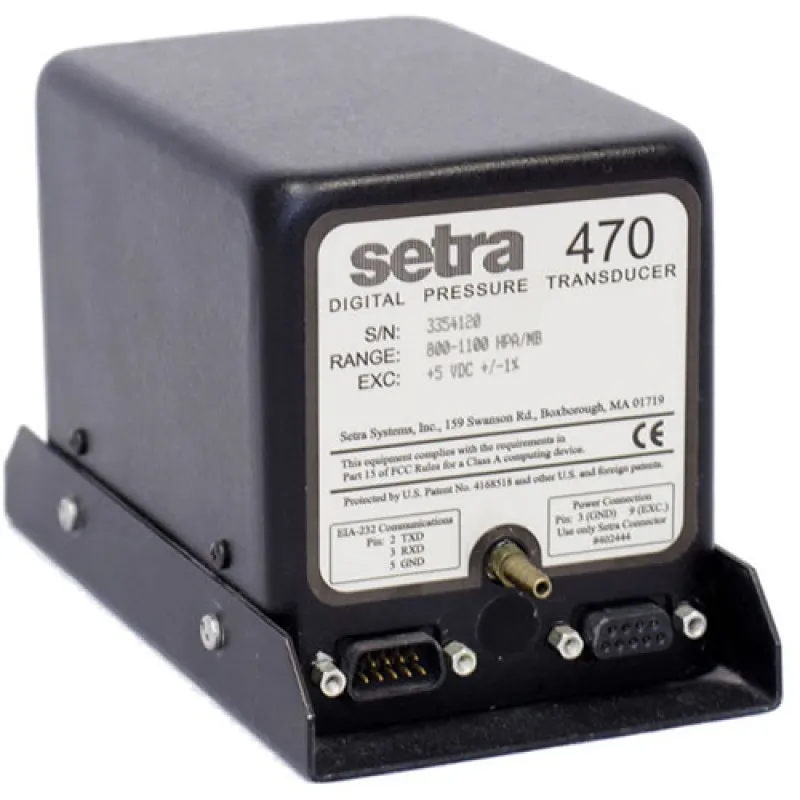

Setra 470 [4701] Digital Barometric / Medium Pressure Transducer

Setra 470 [4701] Digital Barometric / Medium Pressure Transducer
Setra 470 [4701] Digital Barometric / Medium Pressure Transducer
0 reviews • Write a review
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Dwyer , Thermo-Anemometer

The Setra 470 Digital Barometric / Medium Pressure Transducer offers extremely high accuracy and unmatched stability in a digital output configuration. Environmental monitoring and test & measurement systems around the world rely on Setra's experience in barometric pressure measurement instrumentation, as well as high accuracy measurements of higher pressures. Both models utilize Setra's unique SETRACERAM™ sensor, which is combined with advanced microprocessor based circuitry and sophisticated firmware to provide system accuracy to better than ± 0.02% full scale.

The 470 is intended for applications which do not require local display of pressure or key pad access to commands. The 470's solid stability, reliability and versatility make it the first choice for weather observation systems worldwide. Both units are programmable for continuous, interval or on demand printing at an adjustable (300-9600) baud rate.

Applications include:

  • Automatic weather reporting systems
  • Pressure transfer standard
  • Altimeter calibration recertification
  • Lab or production process monitoring
  • Altitude chambers

Features:

  • ±0.02% full scale accuracy
  • Bidirectional RS-232 digital communications I/O port
  • Engineering unit conversions for pressure and altitude
  • Temperature range: 32 to 110°F (0 to 45°C)
  • Digital altimeter setting indicator (DASI)
  • Corrected altimeter mode
  • Programmable non-linear functions
  • Meets CE conformance standards

What's In The Box:

  • (1) Manual

Brochure/Datasheet

Instruction manual

    Note: Prices are not binding , subject to change without prior notice

      Pressure Range 0 Item Selected
    Model
    Product Name
    Price
    Available
    Quantity
    [600M] 600 to 1100 hPa/mb
    600M
    Rp.00
    1 Availability
    [010] 10 PSIA
    010
    Rp.00
    1 Availability
    [020P] 20 PSIA
    020P
    Rp.00
    1 Availability
    [050P] 50 PSIA
    050P
    Rp.00
    1 Availability
    [100P] 100 PSIA
    100P
    Rp.00
    1 Availability
      Pressure Type 0 Item Selected
      Fitting 0 Item Selected
      Output 0 Item Selected
      Accuracy 0 Item Selected
      Options 0 Item Selected
