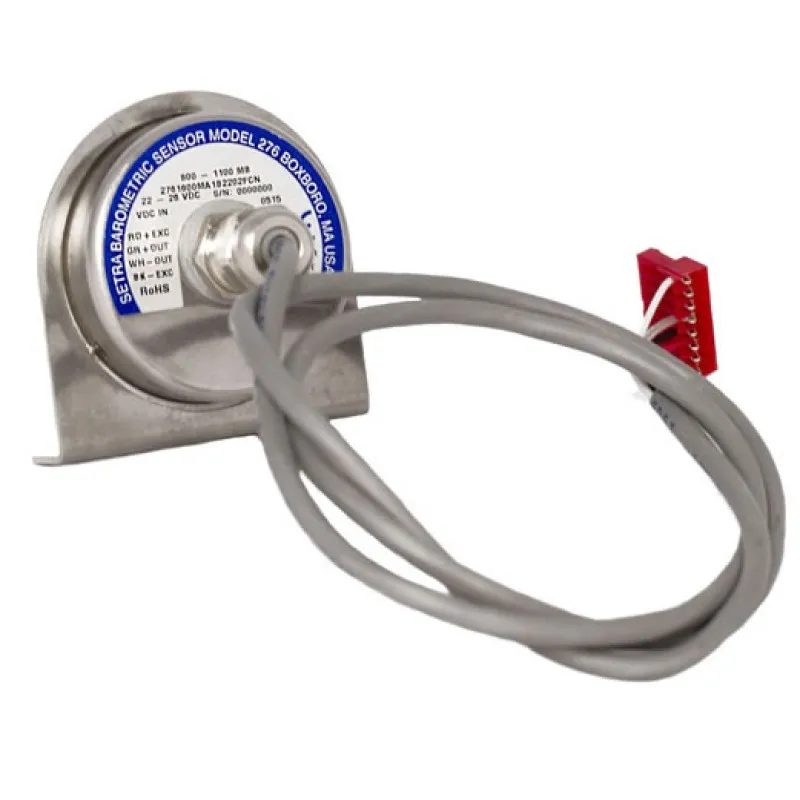

Setra 276 [2761] Barometric Pressure Transducer

Setra 276 [2761] Barometric Pressure Transducer
Setra 276 [2761] Barometric Pressure Transducer
0 reviews • Write a review
from
Rp.18,500,0000
  • Brand: Setra
  • Part Number: 2761
  • Availability: 4 - 6 WEEKS
  • Last Updated: 12 Nov 2017
Setra Setra
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Dwyer , Thermo-Anemometer

The Setra 276 Barometric Pressure Transducer is an extremely accurate and stable transducer based on the proven Setraceram™ sensing element. The glass fused ceramic capacitive sensing capsule is the heart of Setra's environmental pressure transducers because of its inherent thermal stability, low hysteresis and fundamentally simple design.

Another major feature of the 276 is Setra's custom Application Specifi c Integrated Circuit (ASIC). The ASIC works hand-in-hand with the SetraceramTM sensor to achieve long-term stability and high accuracy, unmatched by other manufacturers - even at a much higher cost. The ASIC circuit allows the 276 to operate with an excitation as low as 5 VDC for remote battery or solar powered applications.

The 276 is designed specifically to give maximum flexibility to system integrators and OEM's. The standard unit has a convenient mounting bracket and simple 1/8" tube fitting for quick installations. Its low cost, small size and available options make it application configurable.
If your OEM environmental application requires low cost, combined with superior performance, specify Setra's Model 276 and apply the savings to the bottom line.

Applications include:

  • Environmental monitoring systems
  • Weather measurement systems
  • Weather and environmental data logging
  • Barometric pressure compensation for internal combustion engine performance
  • Clean room Bbarometric pressure compensation
  • Automotive emissions test equipment

Features:

  • Environmentally rugged
  • <±0.25% FS, 6 month stability
  • Barometric Pressure: 600 to 1100, 800 to 1100 hPa/mb
  • Absolute Pressure: 0 to 20 psia
  • Compact size (2" dia. x 1")
  • Excellent long-term stability
  • Low power consumption (for solar or battery power)
  • Fast response
  • Meets CE conformance standards

What's In The Box:

  • (1) Manual

Brochure/Datasheet

Instruction manual

    Note: Prices are not binding , subject to change without prior notice

      Pressure Range 0 Item Selected
    Model
    Product Name
    Price
    Available
    Quantity
    [800M] 800 to 1100 hPa/mb
    800M
    Rp.18,500,0000
    1 Availability
    [600M] 600 to 1100 hPa/mb
    600M
    Rp.18,500,0000
    1 Availability
    [020P] 20 PSIA
    020P
    Rp.18,500,0000
    1 Availability
      Pressure Type 0 Item Selected
      Fitting 0 Item Selected
      Output / Excitation 0 Item Selected
      Cable length/Termination 0 Item Selected
      Accuracy 0 Item Selected
      Options 0 Item Selected
