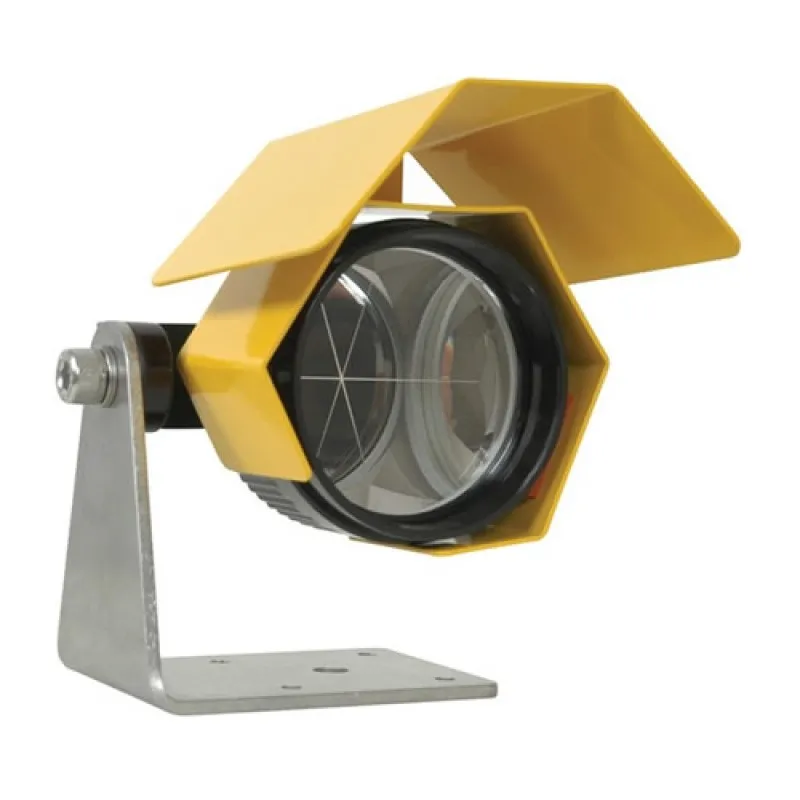

![Seco 6603-00 [6603-00] Walleye Prism System With 5/8 x 11 Adapter](image/cache/wp/gj/Products/Seco_6603-00-800x800.webp "Seco 6603-00 [6603-00] Walleye Prism System With 5/8 x 11 Adapter")
The Seco Walleye Prism System accommodates a full size 62 mm prism for long range applications or when a larger prism is needed. Features include a -40 mm offset, ± 2 mm, ability to pivot in two axes, and a stainless-steel locking type.
Plus, this prism has a rain hood that helps keep the prism clean to ensure continual measurements over a long measuring cycle. The flat bottom of this L-Bracket measures 2.3 x 3.4 inches with five holes suitable for mounting to a variety of surfaces.
It also has a center pivot hole which measures 3/8-inch and four screw holes with 11/64-inch outer diameter. The system is compatible with all M20 screw-in type prism canisters.
Features:
Brochure/Datasheet
Instruction manual
Note: Prices are not binding , subject to change without prior notice
By completing profiles, we can ensure you get the best service
