Seaward Cropico DO7 [551A914] Plus Portable Digital Micro Ohmmeter with Memory Storage

Seaward Cropico DO7 [551A914] Plus Portable Digital Micro Ohmmeter with Memory Storage
Seaward Cropico DO7 [551A914] Plus Portable Digital Micro Ohmmeter with Memory Storage
from
Rp.100,400,0000
Ex Tax: Rp.100,400,0000
  • Brand: Seaward
  • Part Number: 551A914
  • Availability: 4 - 6 WEEKS
  • Last Updated: 16 Sep 2018
Seaward Seaward
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

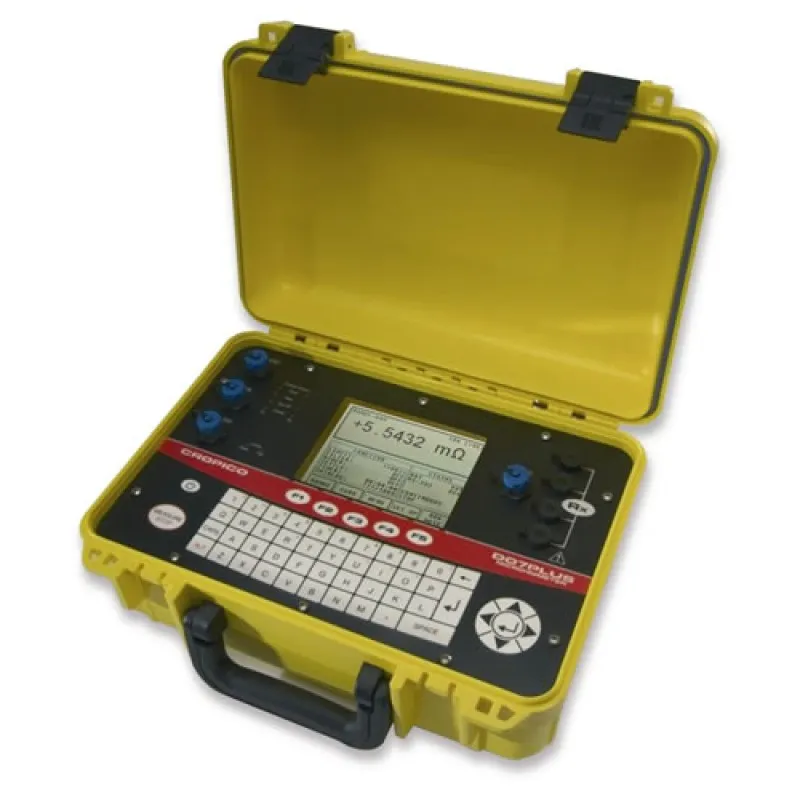

The Seaward Cropico DO7Plus is a 10 A Micro ohmmeter, suitable for applications in Aerospace, Utilities, Cable or Machine Manufacturers or where a cooling curve is required to plot peak resistance. Sealed in an IP67 case (when closed or IP53, lid open) it is ruggedly constructed to ensure durability.

The DO7 Plus has a backlit LCD graphics panel, full QWERTY keyboard, temperature compensation via optional PT100 probe, and built in coefficients for Copper and Aluminum as well as user defined.

Full cooling curve facilities are built in, with real time graphical plotting on the LCD. Data log memory contents can be plotted and a curve fitted to calculate the peak resistance value when t=0.

The unit has a display length of 60000 counts and auto averaging of forward and reverse measurement removes thermal emf differences. Connectivity is available via both USB and RS232 for data downloading.

The internal memory holds up to 1000 date and time stamped readings and which can be viewed on the LCD or downloaded with the free software provided, as CSV file, to a PC for further analysis. The data log memory using the latest FRAM technology which offers unlimited read/write cycles and over 10 years of data retention, without relying on internal batteries. The unit has built in rechargeable batteries which will provide up to 1 hour of continuous use at 10 A, and up to 20 hours at all other ranges.

Features:
  • On screen real time graphical plotting cooling curve facilities with peak resistance value calculator
  • It’s fast, reading rate of 2 readings per second
  • Measuring ranges from 6 mohm to 6 Kohm
  • Resolution 100 nohm to 6 mohm range
  • Backlit LCD graphic panel with programmable timer for battery conservation
  • Single pulse measurement for fast resistance tests
  • Continuous measurement current for inductive tests
  • Full test lead continuity testing and diagnostic display
  • Multi lingual - Display available in English, French, German, Spanish or Italian
What's In The Box:
  • (1) Seaward Cropico DO7 Plus Micro Ohmmeter
  • (1) Printed Operating Instructions
  • (1) Power Supply Unit
  • (1) CDROM
  • (1) Calibration Certificate
  • (1) LS05-P Standard Lead Pack (Includes 4 x 1m Leads with Banana Plugs, 4 x Croc Clips, 4 x Test Probes and 2 x KC1 Kelvin Clips)
  • (1) Standard USB Lead
  • (1) RS232 Lead
  • (1) Warranty Card
Brochure/Datasheet
Instruction manual

Note: Prices are not binding , subject to change without prior notice
