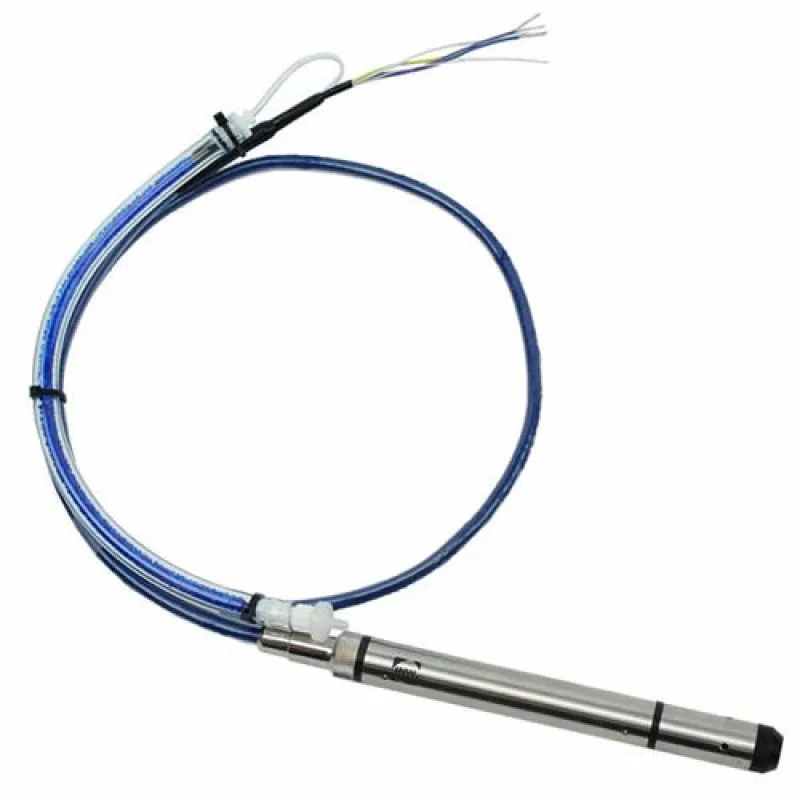

Seametrics PS98i Submersible Pressure Transmitters

Seametrics PS98i Submersible Pressure Transmitters
Seametrics PS98i Submersible Pressure Transmitters
0 reviews • Write a review
from
Rp.20,950,0000
Ex Tax: Rp.20,950,0000
  • Brand: Seametrics
  • Part Number: PS98i
  • Availability: 4 - 6 WEEKS
  • Last Updated: 24 Feb 2019
Seametrics Seametrics
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Fluke , Basic , Battery , Analyzer

The Seametrics PS98i pressure transmitters are rugged and accurate with great noise immunity, transient protection, and thermal performance. These pressure sensors have been designed to provide trouble-free submersible operation in liquid environments. Pressure is measured with an extremely rugged and stable piezo-electric, media isolated pressure element and calibrated with well established calibration procedures and NIST traceable equipment. The PS98i sensors are thermally compensated, making them great where water temperatures vary, as they are thermally stable (2% over 50 degrees standard). These industry standard, 2-wire, 4-20mA devices offer reverse polarity protection, under- and over-current limitation, and built-in transient protection.

Features:

  • Industry standard, 2-wire, 4-20 mA configuration
  • Absolute, gauge, or sealed gauge
  • ± 0.25% FSO typical accuracy
  • Operates on low power
  • 316 stainless steel, fluoropolymer, PTFE construction (Titanium option available)
  • Available with a variety of cable options—polyethylene, polyurethane, or FEP
  • 1/4 NPT end cone adapter option
  • Narrow 0.75″ diameter, 8″ length

What's In The Box:

  • (1) Instruction manual
  • Note: Requires cable

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice


  PRESSURE RANGE / UNIT [PS98i] 0 Item Selected
Model
Product Name
Price
Available
Quantity
[2D41224] 5 PSIG range (Stainless Steel)
2D41224
Rp.20,950,0000
1 Availability
[2D41226] 15 PSIG range (Stainless Steel)
2D41226
Rp.20,950,0000
1 Availability
[2D41228] 30 PSIG range (Stainless Steel)
2D41228
Rp.20,950,0000
1 Availability
[2D41230] 50 PSIG range (Stainless Steel)
2D41230
Rp.20,950,0000
1 Availability
[2D41232] 100 PSIG range (Stainless Steel)
2D41232
Rp.20,950,0000
1 Availability
[2D41234] 300 PSIG range (Stainless Steel)
2D41234
Rp.20,950,0000
1 Availability
[2D41252] 30 PSIA range (Stainless Steel)
2D41252
Rp.20,950,0000
1 Availability
[2D41254] 50 PSIA range (Stainless Steel)
2D41254
Rp.20,950,0000
1 Availability
[2D41256] 100 PSIA range (Stainless Steel)
2D41256
Rp.20,950,0000
1 Availability
[2D41258] 300 PSIA range (Stainless Steel)
2D41258
Rp.20,950,0000
1 Availability
[2D42224] 5 PSIG range (Titanium)
2D42224
Rp.28,500,0000
1 Availability
[2D42226] 15 PSIG range (Titanium)
2D42226
Rp.28,500,0000
1 Availability
[2D42228] 30 PSIG range (Titanium)
2D42228
Rp.28,500,0000
1 Availability
[2D42230] 50 PSIG range (Titanium)
2D42230
Rp.28,500,0000
1 Availability
[2D42232] 100 PSIG range (Titanium)
2D42232
Rp.28,500,0000
1 Availability
[2D42234] 300 PSIG range (Titanium)
2D42234
Rp.28,500,0000
1 Availability
[2D42252] 30 PSIA range (Titanium)
2D42252
Rp.28,500,0000
1 Availability
[2D42254] 50 PSIA range (Titanium)
2D42254
Rp.28,500,0000
1 Availability
[2D42256] 100 PSIA range (Titanium)
2D42256
Rp.28,500,0000
1 Availability
[2D42258] 300 PSIA range (Titanium)
2D42258
Rp.28,500,0000
1 Availability
