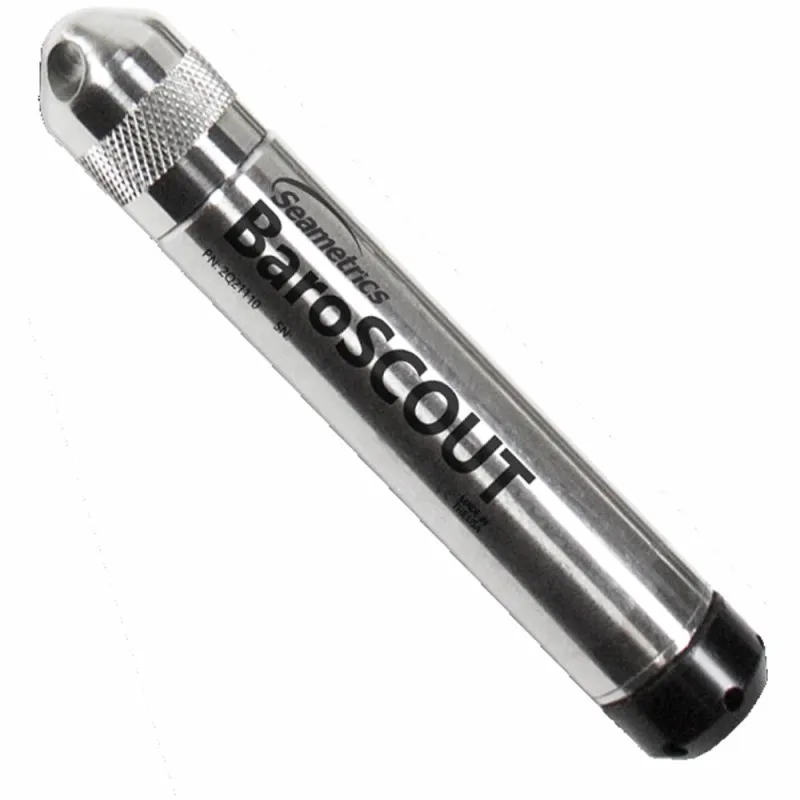

Name: Seametrics BaroSCOUT [2Q21110] Barometric Pressure Logger w/ Stainless Steel Housing, 15 PSIA Range
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Seametrics BaroSCOUT [2Q21110] Barometric Pressure Logger w/ Stainless Steel Housing, 15 PSIA Range

0 reviews • Write a review

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Horiba , U-50 Series , U-51 , Multi-Parameter , Water Quality Meter

Description

The Seametrics BaroSCOUT Smart Sensor is designed to measure barometric pressure, along with temperature. It is an ideal companion to LevelSCOUT absolute pressure/level sensors and can be used to adjust their readings for atmospheric pressure.

This industry standard digital RS485 interface device records up to 50,000 records of pressure, temperature, and time data, operates with low power, and features easy-to-use Aqua4Plus 2.0 software with powerful features.

Constructed with 316 stainless steel, acetal, and Viton, this sensor provides high-accuracy readings in rugged and corrosive field conditions. The BaroSCOUT utilizes an extremely rugged and stable piezo-electric media-isolated pressure element combined with a 16-bit analog-to-digital converter. This provides extremely accurate and stable pressure input into the microprocessor on the circuit board that measures the pressure and stores the data in non-volatile memory.

A replaceable 1/2 AA 3.6v lithium battery powers the BaroSCOUT. The unit is programmed using our easy-to-use control software. Once programmed the unit will measure and collect data at the time interval programmed.

While most will use the BaroSCOUT with Seametrics’ Aqua4Plus 2.0 software, it is by no means limited to that software. You can use your own Modbus RTU software or logging equipment to read measurements via RS485, tying into your existing telemetry and control systems.

Note: The BaroSCOUT is intended for use in atmosphere—not to be submerged.

Features:

Measures/Records barometric pressure and temperature
Low power — 4 year battery life
Replaceable battery
Modbus® RTU (RS485)
± 0.05% FS accuracy
Small diameter — 0.875” (2.22 cm)
50,000 record non-volatile memory
Barometric compensation utility
Free new Aqua4Plus 2.0 software

What's In The Box:

(1) BaroSCOUT Barometric Pressure Logger

Brochure/Datasheet

Instruction manual
