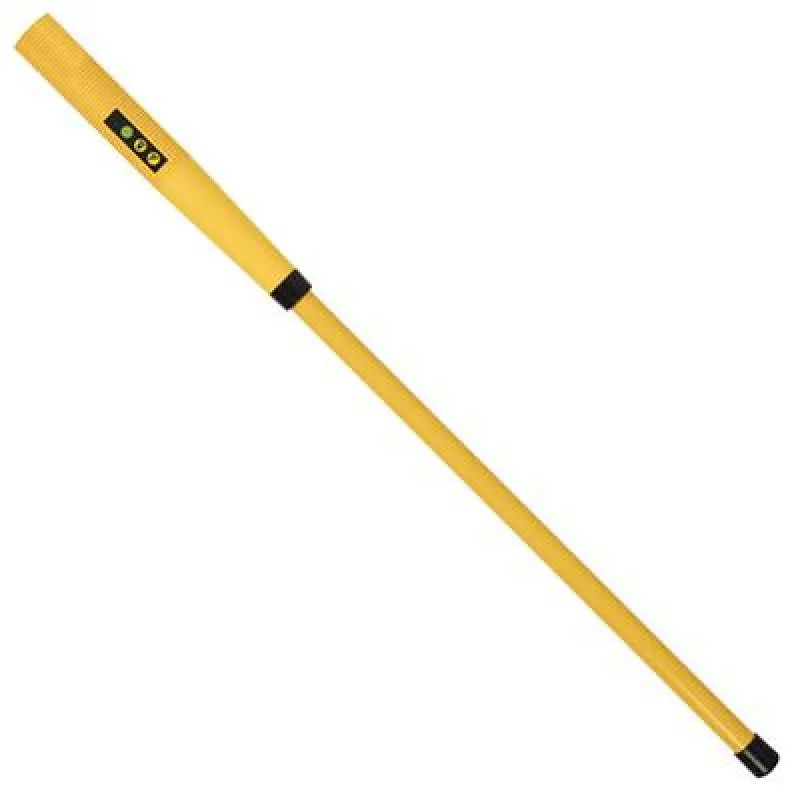

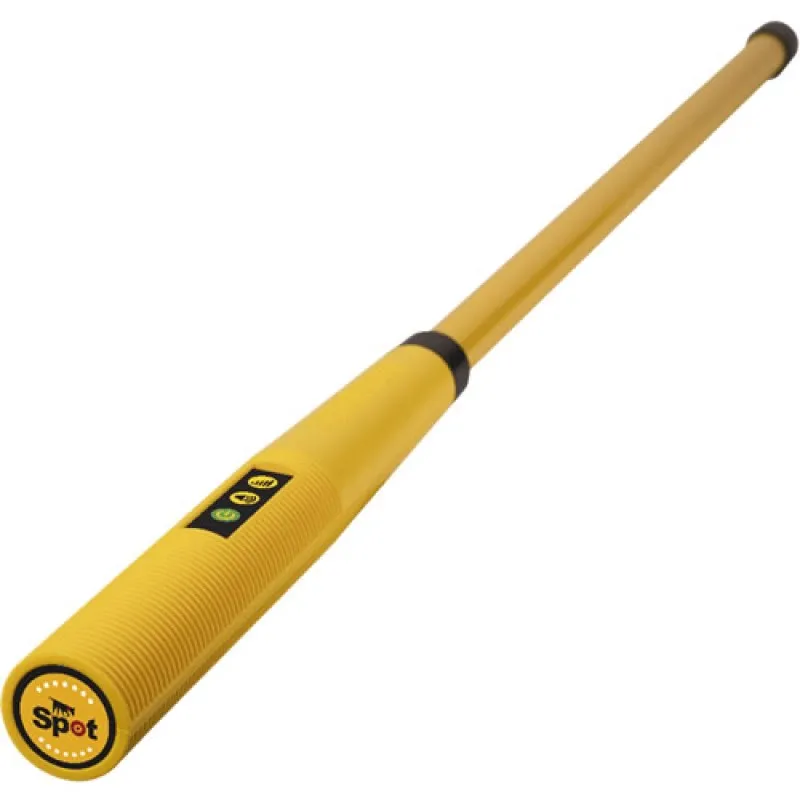

Schonstedt SPOT Magnetic Locator

Schonstedt SPOT Magnetic Locator
Schonstedt SPOT Magnetic Locator
Schonstedt SPOT Magnetic Locator
Schonstedt SPOT Magnetic Locator
Schonstedt SPOT Magnetic Locator
Schonstedt SPOT Magnetic Locator
Schonstedt SPOT Magnetic Locator
Schonstedt SPOT Magnetic Locator
Schonstedt SPOT Magnetic Locator
from
Rp.20,250,000
Ex Tax: Rp.20,250,000
  • Brand: Schonstedt
  • Part Number: SPOT
  • Availability: 3 - 4 WEEKS
  • Last Updated: 14 Oct 2018

The SPOT is built for rough terrain and severe weather with engineering and accuracy equal to the reliable Schonstedt 52-Cx model, but in a sleeker and more light-weight package.


Features:

  • Locates objects up to 18 ft. deep
  • Single-handed operation and no knobs
  • Easy Access Battery
  • 7 Year Manufacturer's Warranty
  • Optimized for finding survey pins, markers and nails, water and gas valves, manhole covers, and other deep iron/steel objects Specifications:
  • Audio Output: Frequency increases or decreases with signal strength (gradient field intensity).
  • Range: 30 to 4000 Hz.
  • Depth Detection: Up to 18’ deep (5.48 m) (object dependent)
  • Low Battery Indicator: 1/2 second audio beep, every 13 seconds
  • Gain: 5 levels: Extra Low (1), Low (2), Medium (3), High (4), Extra High (5) Audio: Progression of audio beeps to correlate with gain setting (one beep for #1, two beeps for # 2, and so on)
  • Volume: 2 Levels: Medium & Maximum
  • Input Power: One 9V Battery
  • Battery Life: 24 Hours (intermittent usage)
  • Operating Temperature: -13°F to 140°F (-25°C to 60°C)
  • Overall Length: 42.3 in (107.4 cm)
  • Nominal Sensor Spacing: 20 in (50 cm)
  • Weight: ~2.0 lbs (0.9 Kg)
  • Water and Dust Protection: Rated IP54 overall, waterproof up to 27” (58 cm) from bottom tip


What's In The Box:


  • (1) SPOT Magnetic Locator
  • (1) Durable Padded Soft Case with Shoulder Sling
  • (1) 9V Battery


    Brochure/Datasheet


    Instruction manual


    Note: Prices are not binding , subject to change without prior notice
