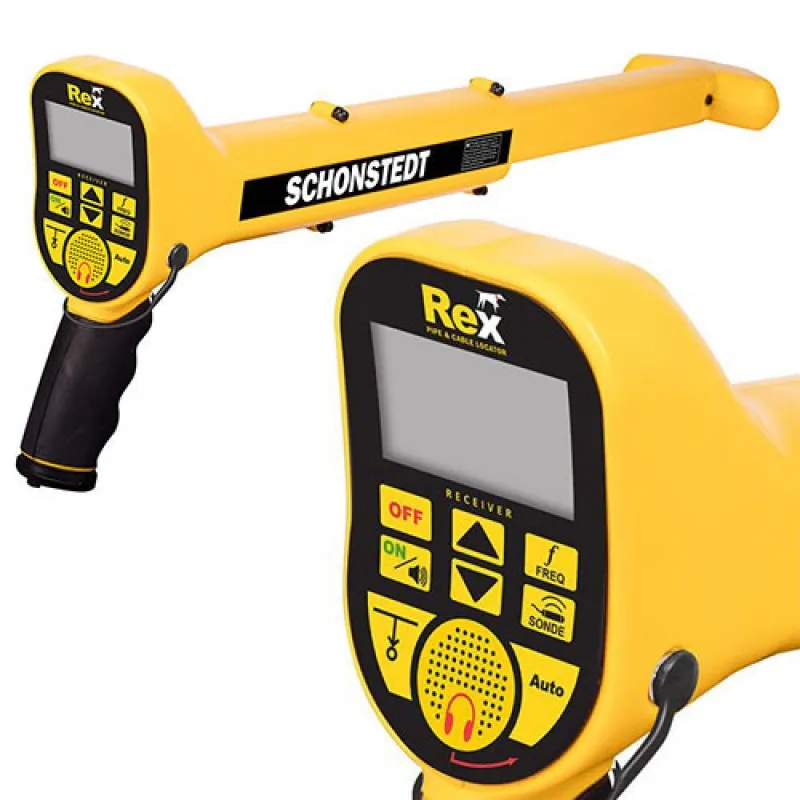

Schonstedt REX [REX-R] Multi-Frequency Pipe & Cable Locator - Receiver Only

Schonstedt REX [REX-R] Multi-Frequency Pipe & Cable Locator - Receiver Only
Schonstedt REX [REX-R] Multi-Frequency Pipe & Cable Locator - Receiver Only
from
Rp.34,500,0000
Ex Tax: Rp.34,500,0000
  • Brand: Schonstedt
  • Part Number: REX-R
  • Availability: 4 - 6 WEEKS
  • Last Updated: 26 Apr 2020
Schonstedt Schonstedt
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The Schonstedt REX-R is the receiver part of the Schonstedt REX package and can be bought separately from the package.
The Rex receiver has the ability to operate in an automatic or manual gain mode. In the automatic gain mode, the sensitivity of the receiver is adjusted automatically, based on the strength of the detected signal, to produce a relatively constant and strong signal strength indication. In the manual gain mode, the user can adjust the sensitivity up or down to suit different locating scenarios.

The Rex receiver is equipped with directional indicators (arrows). These visual and audible indicators help the user locate the pipe or cable by showing which direction he/she should move in order to get closer to the target. These indicators are not available in the Sonde mode.

The Rex receiver has the ability to measure the approximate depth of the target pipe or cable being traced. When a depth measurement is made, the receiver must be fully extended and the bottom tip of the receiver must be touching the ground. Depth measurements should only be made when the directional indication says that the target is close and the receiver’s signal strength is maximized (peaked) over the target. Special considerations are required for the Sonde mode.

Once in the surroundings of a sonde, it is important to differentiate whether you are positioned along the axis of the sonde (the direction of the pipe) or off to either side. In the sonde mode, the directional indication is not functional; the signal strength is the only indication available. Rotate the receiver back and forth and move in the direction that produces the maximum (peak) signal strength. As the receiver gets closer to the sonde, the signal strength increases and it will hit a peak when the receiver is directly over the sonde. Slowly rotate the receiver to fine tune the peak signal strength, which will occur when the plane of the sensors is parallel to the axis of the sonde. For verification, rotate the receiver 90 degrees and see that it produces a “null" (signal strength very close to zero), and then counter-rotate 90 degrees to go back to the original position. To measure depth, simply place the tip of the unit on the ground and press the DEPTH button when the signal strength is at a peak. The achievable depth depends on a number of factors, but typically it is possible to read depth up to 5 to 15 feet (1.5 to 4.2 m).

Features:

  • Operating Frequency: Active: 512 Hz, 33 kHz and 82 kHz, Passive - 50 or 60 Hz, Sonde- 512 Hz
  • Battery: One 9V Alkaline Battery
  • Battery Life: 12 Hours (intermittent use)
  • Weight (including battery): 2.8 lbs (1.25 kg)
  • Operating Temperature: -4°F to 140°F (-20°C to 70°C)
  • Water and Dust Resistance: Rated IP54
  • Overall Dimensions: Closed: 17.5 in (~44 cm), Extended: 27.7 in (~70 cm)
  • Max Depth Capability: Approximately 19 feet (5.8 m), Sonde mode: approximately 5' - 15' (1.5 m to 4.2 m)

What's In The Box:

  • (1) Receiver
  • (1) One 9V Battery (in unit)

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
