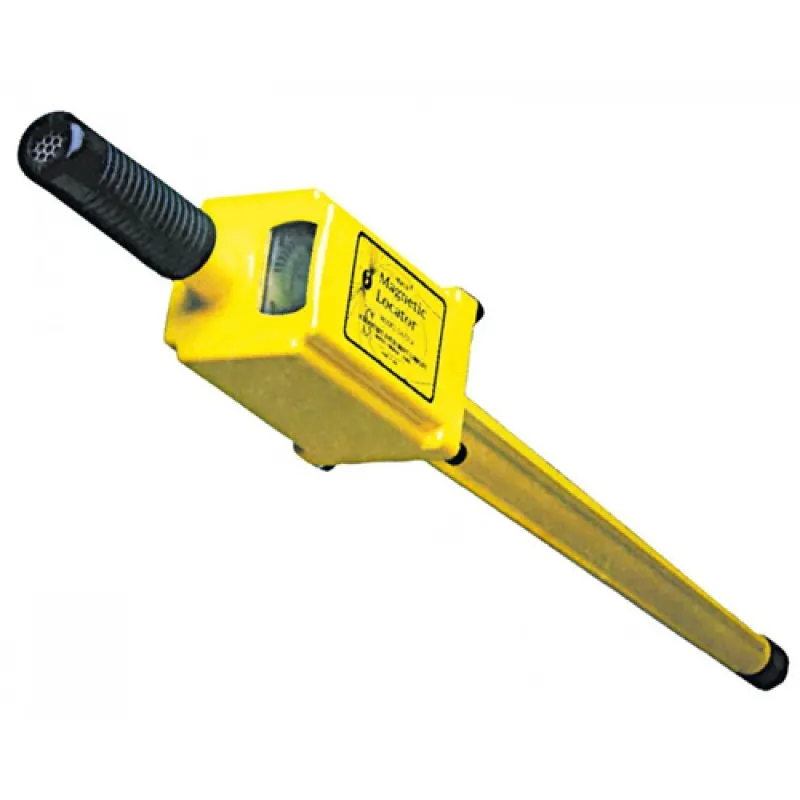

Schonstedt GA-72Cd Magnetic Locator

Schonstedt GA-72Cd Magnetic Locator
Schonstedt GA-72Cd Magnetic Locator
0 reviews • Write a review
from
Rp.24,450,0000
  • Brand: Schonstedt
  • Part Number: GA-72Cd
  • Availability: 3 - 4 WEEKS
  • Last Updated: 14 Oct 2018
Schonstedt Schonstedt
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Very easy-to-use, the GA-72Cd Magnetic Locator detects the magnetic field of iron and steel objects and energized power lines. It provides audio detection signals that peak in frequency when the locators tip is held directly over the target. The GA-72Cd has the option of nulling or peaking.

Quality is Schonstedt's Hallmark as Schonstedt's underground magnetic locators have been setting the standards for reliability and dependability for over 30 years. They are designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions.

Only two Controls. Designed for one-hand operations, the On/Off-Sensitivity and volume controls are located on the underside of the cover of the locator. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.

The GA-72Cd also has easy-to-read digital and bar graph which displays of signal strength and polarity. Once you have located a target using the audio signal, the digital readout and polarity indicators will help you to visually pinpoint the target and, in some instances, even determine its orientation.

Signal Strength and Polarity Indications
The GA-72Cd's audio signal and the 3-digit LCD readout will peak, and the (+) or (-) bar graph will expand to full scale when its tip is directly over a vertical iron pipe. One end of a horizontal target will be (+) and the other will be (-). This difference is very significant because it helps you to distinguish between vertical and horizontal pipes.

With the GA-72Cd you can select any one of four sensitivity settings. The GA-72Cd's LCD bar graph shows the selected gain and the battery status. The GA-72Cd's headset jack can be connected to your data logger using a standard stereo audio plug.

Choice of Two Audio Modes
The GA-72Cd is configured initially to provide an audio signal that is always present (Audio Output switch set to "B"). If you do not want to hear a signal until the locator is within the detection range of a target, you can set the Audio Output Switch to "A".

Features:
  • Digital readout and expanding bar graph displays signal strength and polarity
  • 4 Sensitivity settings: Low, Medium, High, and Extra High
  • Piezoelectric speaker
  • Analog output for data logger entry
  • 60-Hours operational life (intermittent usage)
  • 2 9V lithium batteries (B11014)
  • First locator to use Environmentally Friendly and Safe, lithium batteries.
  • 4-Segment BATT LCD monitors battery charge
  • Lightweight, easy-to-use-design reduces search time
  • Modular construction; high performance components
  • Patented HeliFlux sensors
  • No response to aluminum, brass, or copper

                      What's In The Box:

                      • (1) Carrying Case (p/n: 302145)
                      • (2) Two 9V Batteries (in unit)

                      Brochure/Datasheet

                      Instruction manual

                      Note: Prices are not binding , subject to change without prior notice
