Schiltknecht Messtechnik MiniAir64 [MINIAIR64] Probe Anemometers

Schiltknecht Messtechnik MiniAir64 [MINIAIR64] Probe Anemometers
Schiltknecht Messtechnik MiniAir64 [MINIAIR64] Probe Anemometers
0 reviews • Write a review
from
Rp.23,900,0000
Schiltknecht Messtechnik Schiltknecht Messtechnik
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: AAB , ABM-100 , Smartphone , Anemometer

The The MiniAir64 vane anemometers provide a 4-20mA output relative to the flow velocity ranges of up to 20m/s or 40m/s. The units are simple to install or use as part of a fixed system or in conjunction with data loggers, displays or portable indicators. The sensors operate from a 9-24vDC power supply. The operating temperatures of the standard MiniAir64 probe is -10 to +80°C. High temperature units can be supplied with external electronics and probe operating temperature ranges up to 140°C.

The MiniAir 64 range of anemometers are designed with at least two component parts. A vane anemometer and probe handle. The probe handle contains all the electronic components and comes with 2m cable with flying leads. All plastic heads are designed to be replaceable with an Aluminium vane for non-aggressive gases and a Steel vane for aggressive gases. Probes for higher temperatures applications are supplied with a fully Steel head and turbine that is screwed to the probe handle and is not replaceable.

In anemometry, the accuracy achieved by a vane probe is acknowledged to be unmatched. The vane rotation is closely linear to flow velocity and is unaffected by pressure, temperature, density and humidity. In the MiniAir probes, as each metal blade passes the probe handle, a pulse is generated by a simple magnetic pick up in the handle. The electronics of the MiniAir 64 reads the pulse and converts these readings to a linear 4-20mA output.

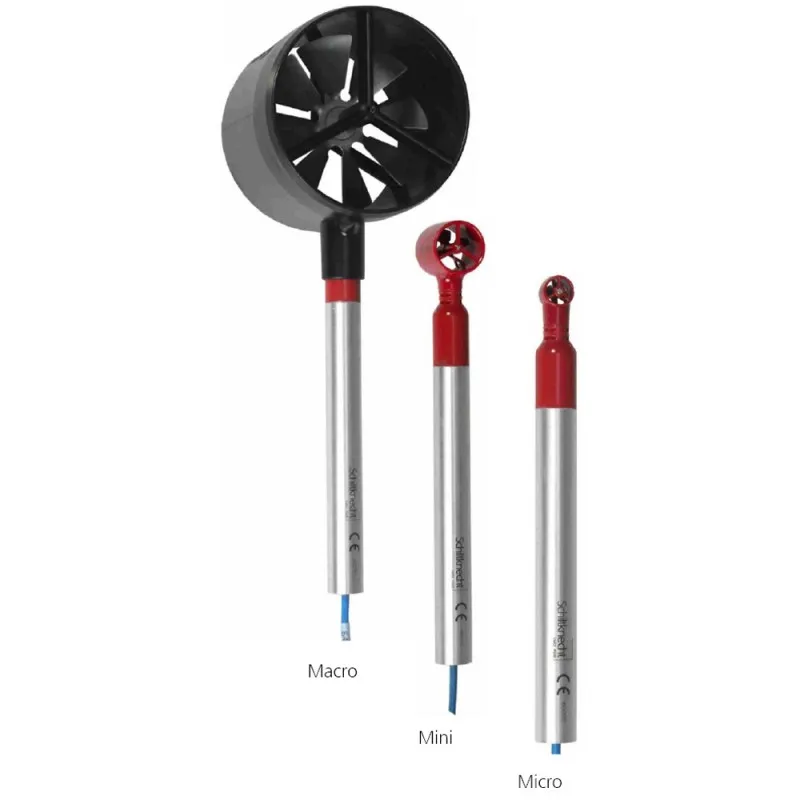

The MiniAir vane anemometers are available in three different sizes: Micro; Mini; and Macro, with two different flow ranges available for each: 0-20ms; and 0-40m/s. The standard probes are a synthetic plastic construction snap head with an Aluminium vane turbine and handle. A Steel vane and handle option is available for aggressive gases and a full Steel anemometer for high temperature applications up to 250°C.

Features:

  • MiniAir64 Micro 20 m/s
  • MiniAir64 Micro 40 m/s
  • MiniWater64 Micro 5 m/s
  • MiniAir64 Mini 20 m/s
  • MiniAir64 Mini 40 m/s
  • MiniWater64 Mini 5 m/s
  • MiniAir64 Macro 20 m/s

What's In The Box:
  • (1) MiniAir64 Vane Anemometers
  • (1) Instruction manual
  • (1) Display and accesories (Sold Separately)

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice

  MiniAir 64 Probe Anemometers with Linear Current Outputs 0 Item Selected
Model
Product Name
Price
Available
Quantity
[MINI64112] Micro Vane Anemometer, 0-20m/s with 2-wire 4-20mA Output
MINI64112
Rp.24,600,0000
1 Availability
[MINI64114] Micro Vane Anemometer, 0-40m/s with 2-wire 4-20mA Output
MINI64114
Rp.25,500,0000
1 Availability
[MINI64122] Mini Vane Anemometer, 0-20m/s with 2-wire 4-20mA Output
MINI64122
Rp.23,900,0000
1 Availability
[MINI64124] Mini Vane Anemometer, 0-40m/s with 2-wire 4-20mA Output
MINI64124
Rp.24,500,0000
1 Availability
[MINI64132] Macro Vane Anemometer, 0-20m/s with 2-wire 4-20mA Output
MINI64132
Rp.30,600,0000
1 Availability
[MINI64134] Macro Vane Anemometer, 0-40m/s with 2-wire 4-20mA Output
MINI64134
Rp.30,600,0000
1 Availability
